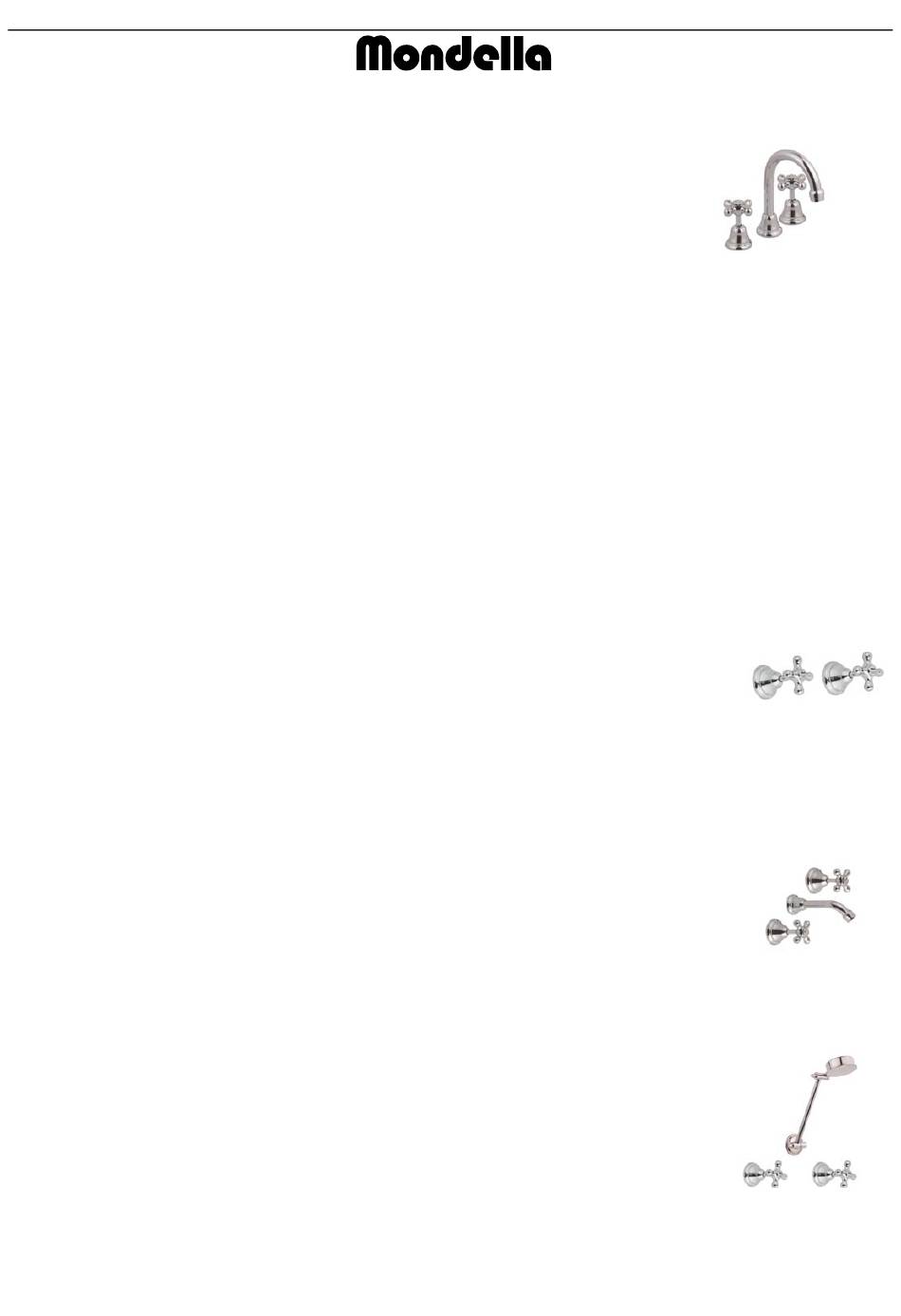

MONDELLA MAESTRO CROSS HANDLE TAP SETS

Mondella Maestro Cross Handle Basin Set(5002377)

1.
Assemble the T-Piece into the basin bodies. Check the hole alignments with the basin/bench top. Un-assemble and cut the T-Piece
ends down to correct size if required.
2.
Remove the top lock nuts and washers from the basin bodies.
3.
Remove the plastic back nut and washer from the basin spout and place them loosely over the T-Piece nipple. (washer on top)
4.
Position the Basin Tee assembly into the vanity basin/bench top so the top threads of the basin bodies are accessible through the top.
Bottom lock nuts can be lowered to suit.
5.
Place the washer and lock nuts on the installed bodies and tighten. Tighten the bottom locks nuts up to bench level.
6.
Push the basin spout down with a swiveling motion, locating it into the T-Piece nipple. Once fully down be sure to centre the spout
before tightening the plastic back nut. Note – the copper T-Piece can be bent up or down (within reason) to ensure the nipple is at the
correct position inside the spout base.
7.
Install the basin flanges by threading them onto the spindle.
8
Install the cross handles by slotting them onto the spindle.
9
Thread the hot and cold button onto spindles, thus securing the handles.
10
Connect the hot and cold water lines to the basin bodies. If using flexible connectors, the bottom nuts and nylon olive fitted to the
basin bodies will not be required.
11 Remove the aerator from the basin spout. Turn on the taps to flush out any filings or debris from the pipes. Re-install the aerator. The
aerator contains a water reducing flow device.
12 Check for leaks above and below bench level. Silicone sealant can be used to seal flanges and spout bases to the bench top if
required*.
(* refer to caring instructions)

Mondella Maestro Cross Handle Wall Top Assembly(5002381)

1.
Install the spindle assemblies into the wall bodies, ensuring the ceramic disc locates into the seat of the wall body as follows:-
Remover the locking nut and hand tighten the ceramic valves into postion, then nip with a shifting spanner one half of a turn only.
Re-install the locking nuts ensuring the red washer is in place also.
2.
Install the wall flanges by threading them onto the spindle locking nuts.
3.
Install the cross handles by slotting them onto the spindle.
4.
Thread the hot and cold button onto spindles, thus securing the handles.
Check for leaks. Silicone sealant can be used to seal flanges if required*.
5.
(* refer to caring instructions)

Mondella Maestro Cross Handle Bath Set(5002378)

1.
Follow the instructions for Mondella Wall Top Assemblies (above) to install handles and valves.
2.
Place a generous amount of thread tape lightly around the existing ½" threaded nipple in the wall prior to installing the bath spout.
3.
Screw the bath spout into position, trying not to over tighten it in order to have the bath outlet in the desired vertical position.
Check for leaks. . Silicone sealant can be used to seal flanges if required*.
4.
(* refer to caring instructions)

Mondella Maestro Cross Handle Shower Set(5002379)

1
Follow the instructions for Mondella Wall Top Assemblies (above) to install handles and valves.
2
Place a generous amount of thread tape lightly around the existing ½" threaded nipple in the wall prior to installing the shower head.
3
Place the chrome back plate over the nipple then screw the shower head into position until tight. Ensure the red water saving device is
in position at the inlet of the shower head. Use a shifter to gently tighten the shower arm into the correct vertical position.
Check for leaks. Silicone sealant can be used to seal flanges if required*.
4
(* refer to caring instructions)
PRODUCT INSTALLATION GUIDE
INS 005 V1
