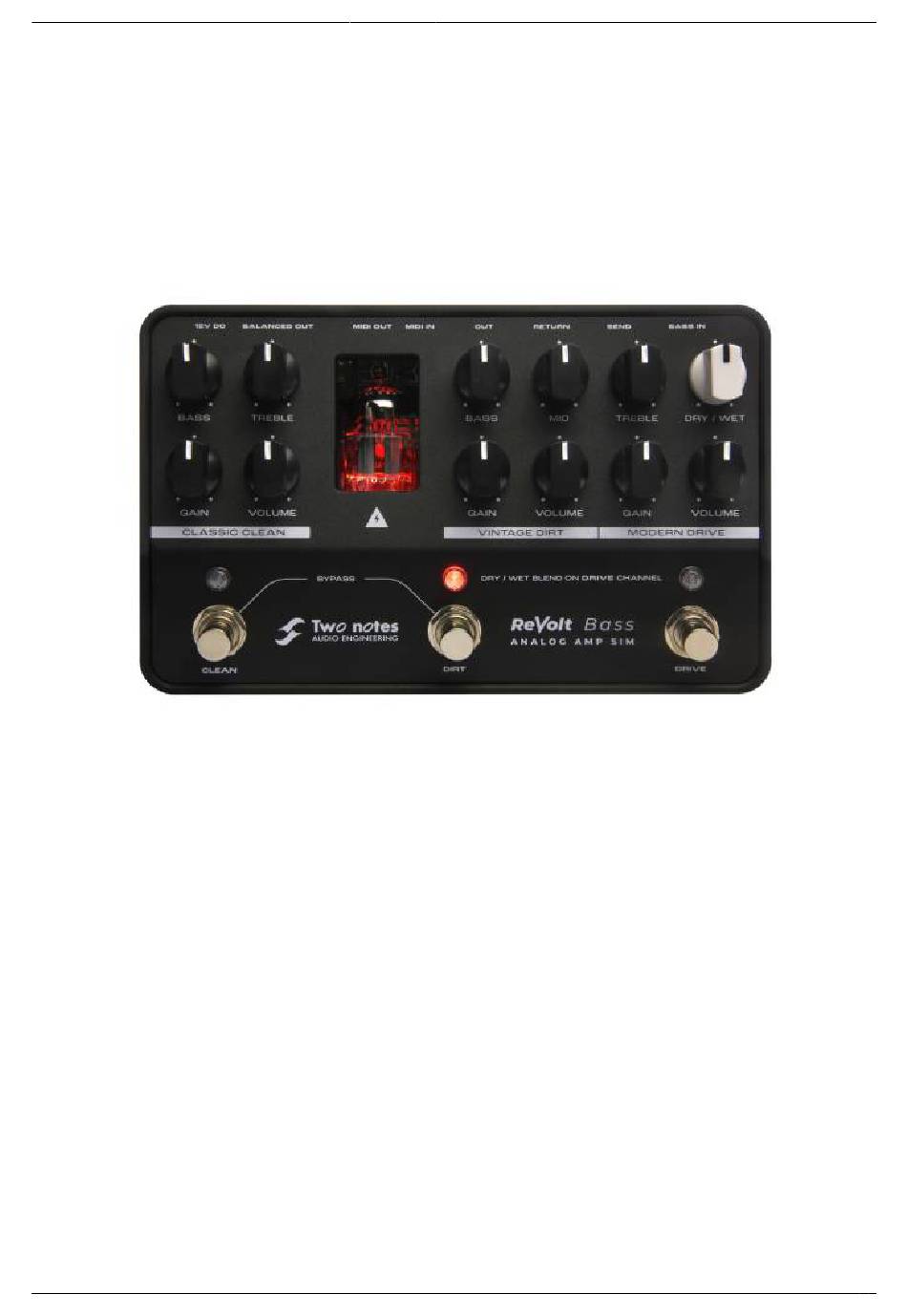

Two notes Audio Engineering ReVolt Bass User Manual

3-channel all-analog bass amp simulator / di
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
2022/12/12 17:37
ReVolt Bass - User Guide
3-Channel All-Analog Bass Amp Simulator / DI
Thank you for purchasing ReVolt Bass, you're about to embark on a world of next-generation tonal
possibilities!
The bass: It's the bedrock of any performance, demanding nothing short of tonal excellence. Enter
ReVolt Bass, a forward-thinking all-analog 3-channel preamp primed to serve as the beating-heart of
your rig. The latest-iteration of Two notes' critically-acclaimed preamp solutions has been engineered
with a singular mission: to empower players with the ultimate in foundation tone. Forget any
preconceptions of a run-of-the-mill amp-in-a-box, preamp or DI: ReVolt Bass stands-apart. It's inspired
by a trio of iconic tones; It's fuelled by 200V and genuine tube power; It's born to assimilate into a
myriad of usage scenarios; it gives you edge when you need it, thanks to an integrated Drive Channel
Dry/Wet Blend. Two notes' gets it: Your Tone Matters. Why settle for anything short of perfection?
The complete electronic version of this manual, as well as the Two notes Audio Engineering software
and hardware products, are subject to updates. You can download the most recent versions of the
products on the Two notes Audio Engineering website.
This manual describes ReVolt Bass and provides instructions for its operation. It is highly
recommended that you read this document before using the product. The contents of this manual
have been thoroughly verified and it is believed to accurately describe the product at the time of
User's manuals - https://wiki.two-notes.com/
1/16
ReVolt Bass - User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ReVolt Bass and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Two notes Audio Engineering ReVolt Bass

  • Page 1 ReVolt Bass - User Guide 3-Channel All-Analog Bass Amp Simulator / DI Thank you for purchasing ReVolt Bass, you’re about to embark on a world of next-generation tonal possibilities! The bass: It’s the bedrock of any performance, demanding nothing short of tonal excellence. Enter ReVolt Bass, a forward-thinking all-analog 3-channel preamp primed to serve as the beating-heart of your rig.

  • Page 2: Important Safety Instructions

    OROSYS SAS. All product names and trademarks are the property of their respective owners. Product names and trademarks found in this document were used during the development of ReVolt Bass but are in no way associated or affiliated with OROSYS SAS.

  • Page 3: Package Contents

    2022/12/12 17:37 3/16 ReVolt Bass - User Guide clean and free from dust All maintenance operations must be carried out by service centers approved by Two notes Audio Engineering or by qualified technicians. Never attempt to repair the product by yourself.

  • Page 4: Disposal Of Waste Equipment By Users In Private Household In The European Union

    5. Warranty OROSYS SARL warrants that this TWO NOTES AUDIO ENGINEERING product shall be free of defects in parts and workmanship when used under normal operating conditions for a period of two (2) years from the date of purchase.

  • Page 5: Top Panel

    2022/12/12 17:37 5/16 ReVolt Bass - User Guide location, it is of vital importance that you keep the original packing materials. It is very difficult to avoid damage when shipping the product without these materials. OROSYS SAS is not responsible for damages caused to the product by improper packaging and reserves the right to charge a reboxing fee for any unit returned for service without the original packing material.
  • Page 6 Last update: revolt_bass:revolt_bass_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_bass:revolt_bass_user_s_manual 2022/12/12 14:25 A - CLASSIC CLEAN Name Function Adjusts the passive low frequency voicing section. \\As the knob is rotated the signal is BASS attenuated (down to -20dB) or boosted (up to +20dB), below 80Hz. As the knob is rotated your signal is attenuated (down to -20dB) or boosted (up to +20dB), TREBLE above 2.5kHz.

  • Page 7: Channel Activation

    2022/12/12 17:37 7/16 ReVolt Bass - User Guide Name Function DRY/WET Adjusts the balance of the input signal and the MODERN DRIVE channel signal D - Shared EQ for VINTAGE DIRT / MODERN DRIVE Channels Name Function Adjusts the Low Frequency content of the shared tone stack.

  • Page 8: Back Panel

    F - CAB SIM Enables the analog cabinet simulation applied to the BALANCED and Headphone outputs of ReVolt by engaging the CAB SIM switch (I Position). For ReVolt Bass, the analog simulation is inspired by an Ampeg SVT-810E cabine G - AUX IN Connect your music player here and control the playback level via the source’s controls.
  • Page 9 2022/12/12 17:37 9/16 ReVolt Bass - User Guide 1 - IN Connect your instrument here. The input is a ¼” TS (unbalanced) jack socket. 2 - SEND Use this unbalanced output to connect to effects pedals or to an amp’s Instrument input when the 4- CABLE METHOD switch (E) is activated.

  • Page 10: Use Cases

    Last update: revolt_bass:revolt_bass_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_bass:revolt_bass_user_s_manual 2022/12/12 14:25 7 - MAINS POWER ADAPTOR Connect the provided power supply here. ReVolt needs 12V DC, 600mA and a center negative polarity to work. USE CASES 1. Go Direct - On Stage & In The Studio Use ReVolt to go-direct to mixing desks audio interfaces when on stage or recording respectively.

  • Page 11: Specifications

    2022/12/12 17:37 11/16 ReVolt Bass - User Guide If your amp is equipped with an effects loop, add ReVolt’s 3 channels to your amplifier’s channel specification. Engage the 4-CABLE METHOD on ReVolt, and combine ReVolt’s effects loop with the amp’s using the following connectivity guidelines.

  • Page 12: Advanced Functionality

    Last update: revolt_bass:revolt_bass_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_bass:revolt_bass_user_s_manual 2022/12/12 14:25 Input Size Function / Specifications Jack 6.35mm (1/4“) unbalanced (TS) Max input level: 11dBu RETURN 6.35mm (1/4“) Impedance: 1MΩ Unbuffered, directly connected to Output when active Jack 6.35mm (1/4”) unbalanced (TS) 6.35mm (1/4”) Max output level: 11dBu Impedance: 300Ω...

  • Page 13: Midi Setup

    2022/12/12 17:37 13/16 ReVolt Bass - User Guide 2. Menu Pages Setup Menu Pages and Color Reference The Page order is as follows: FX loop defaults : Pink MIDI Monitor : White MIDI learn : Blue MIDI Channel : Orange...
  • Page 14 Last update: revolt_bass:revolt_bass_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_bass:revolt_bass_user_s_manual 2022/12/12 14:25 3.2.1 Assigning "Channel On" PC (A, B, or C) Press A, B, or C - the corresponding channel LED will momentarily turn ON After one second, ReVolt will use the channel LEDs to flash the currently assigned PC number. The user can now send a valid MIDI PC message If Valid - the channel LED will remain solid for 1 second, then ReVolt will begin flashing the newly assigned PC number...

  • Page 15: Midi Channel

    FS A = -1 FS B = +1 FS C = +10 Note: If you program the pedal to go further than max permitted MIDI PC starting value (122 for ReVolt Guitar, 125 for ReVolt Bass), it will revert back to the first option and vice versa. 3.4 MIDI CHANNEL Please note, by default ReVolt’s MIDI Channel configuration is set to 17 (OMNI)
  • Page 16 Last update: revolt_bass:revolt_bass_user_s_manual https://wiki.two-notes.com/doku.php?id=revolt_bass:revolt_bass_user_s_manual 2022/12/12 14:25 4.2 FX Loop CC Please note, by default ReVolt’s default FX Loop CC state is set to 14. Using this setup menu allows the user to select the FX Loop CC state per channel. The CC number is displayed and incremented in the same manner that the MIDI PC number is actioned.
