- Page 1 Operation Manual Alzain™ Gas Oven (Gas burner warranty 6 years) (Please read the manual carefully and keep it)
- Page 2 Thank you for your purchase of our Alzain™ oven, please read this manual carefully to get more information about the installation, operation and features of this product. Contents 1. Feature ..................3 2. Technical Parameter ..............4 3. Installation ..................4 4.

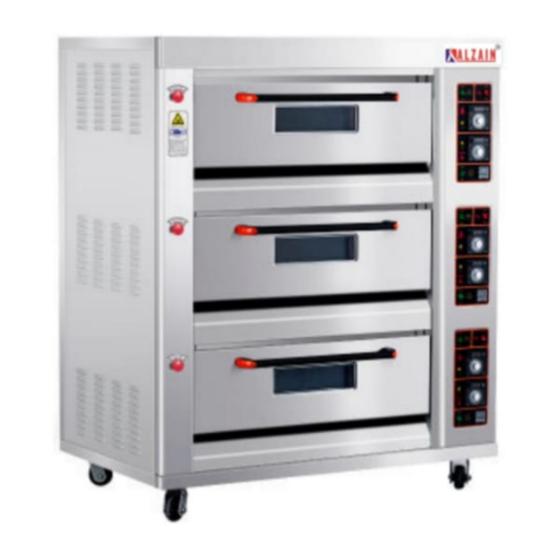

- Page 3 1. Feature HLY series gas ovens are high class food oven that take electricity as control source, and gas as heating source. The unique advantage as following: 1.1 The burner of gas ovens is different from gas stoves or gas water heaters. It uses the fan blower to mix the gas and air to the perfect proportion, force it into the burner so that they could complete burnt.
- Page 4 2.1. Gas type: LPG (LNG need another gas connector) 2.2 Gas pressure: 2.8±0.2 KPA. 2.3 Technical data DISCRIPTION MODEL DIMENSION (mm) VOLTAGE WEIGHT CONSUMPTION Gas oven HLY-101E 1080*680*650 220-240 V 0.25 KG/H 100 KG 1 deck 1 tray Gas oven HLY-102 1395*965*710 220-240 V 0.35 KG/H...
- Page 5 Electrical Circuit 4. Operation Leakage test: Turn on the gas cylinder to make leakage test with soapy water to ensure the safe working conditions before operating. If there is a gas leakage and strong smell of gas, the gas valve should be turn off immediately and open windows to get fresh air.
- Page 6 5. Notice 5.1 On the front left side of the oven, there is an adjusting exhaust port puller. Through the red puller of push and pull to control the exhaust port . Usually the exhaust port in full closed position, It would be open for a short time only when the oven need to reduce temperature or reduce wetness.
- Page 7 Igniting failure, 1. Reduce the air volume. 1.the air volume too large, such as winter morning or but the ignition 2. Check and replace. just change new gas cylinder stick has spark, 3. The ignition needle should be 2-3 2. the cylinder pressure is not sufficient. slight mm above the fire mouth.
- Page 8 4. The model serial No. And product information has been altered, deleted, removed or made illegible. 5. The product has been repaired by non-authorized service centers or dissembled by non-authorized person. Warranty Card ALZAIN EQUIPMENTS PVT. LTD. Customer name： Product name： Date of purchase：...
