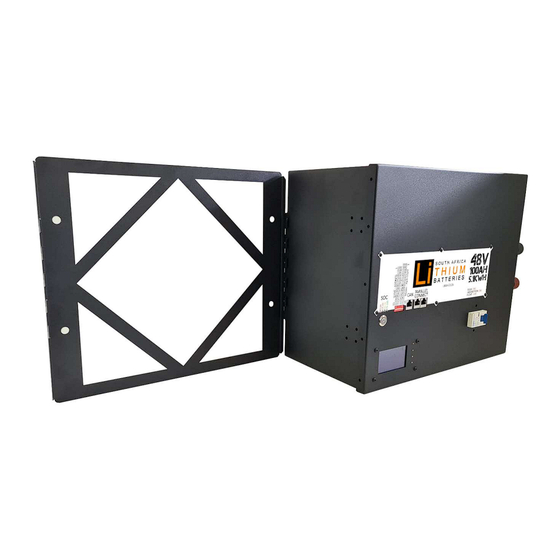

- Page 1 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za LBSA 48V(51.2V) 105AH SMART BATTERY Please read this manual carefully before operating and retain it for future reference.
-
Page 2: Table Of Contents
LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za Lithium Batteries SA (PTY) Ltd This manual introduces LBSA Smart Battery by Lithium Batteries SA. Please read this manual before installation of the battery module and follow the instruction carefully during the assembly. Any confusion, please contact Lithium Batteries SA for advice and clarification. -
Page 3: Warning
LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za the SOC should be no less than 90%. Please recharged the battery pack within 12 hours, after fully discharged. All the battery pack terminals must be disconnected before any maintenance. -
Page 4: Introduction
2.1 Features Battery cell is 3.2V 105Ah aluminium case prismatic cell. Battery cell is made from lithium iron phosphate (LiFePO4) with safety performance and longer cycle life. BMS has over-discharge, over-charge, over-current, high and low temperature warning and protection functions. -
Page 5: Specifications
LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za Flexible configuration, max. 16 packs can be connected in parallel for expanding capacity and power with 8 DIP switches. Working temperature range is from -20 ℃ ~50 ℃ (Charging 0 ℃ ~50 ℃ ; discharging -20 ℃ ~50 ℃... - Page 6 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za Reset button: to start the battery pack, hold the button for 2s to turn on battery pack. RS485 RS485 communication interface: RJ45 port, follow RS485 protocol. For transmitting battery pack information between paralleled packs.
- Page 7 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za ADS Switch: To setup battery address, and to communicate between battery and BMS. NOTE: There are 8-bit DIP switches, keep the switch on down side means ‘OFF’, turn up the switch to top side means ‘ON’.
- Page 8 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za CAN communication DIP address should setup as the following table. CAN Communication Master Packs (#1, #2, #3, #4 set OFF) Slave Packs (#5, #6, #7, #8 set OFF) #5, #6, #7, #8 set as follows...
- Page 9 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za ALARM ALARM light: red LED flash to show the battery alarm status. And red light permanently to show the battery in protection status of abnormal temperature, over- current, or short-circuit. Working light: green LED to show the battery working status.
- Page 10 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za Under voltage Termination protection of discharge CAPACITY SOC light: 4 green LED lights to show the capacity status of battery pack. Each LED represents 25% the capacity. Status Charge Discharge Capacity ●...
-
Page 11: Cell Features
LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za 2.4 Cell Features 2.4.1 Specifications GFB 3.2V 100Ah lithium iron phosphate (LiFePO4) aluminium case prismatic rechargeable battery cell. Nominal Voltage 3.2V Nominal Capacity 105Ah ≤2.25Kg Weight ≤3.5% per month Self-discharge Rate Initial Internal ≤0.35mΩ... -
Page 12: Bms Functions
LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za The real capacity of each single cell is 105Ah. The module inside comes with 16 cells in series. 2.5 Advanced Battery Management System (BMS) inside The BMS is applied to monitor current, voltage, temperature, protection against over-charge, over- discharge, over-current, over-temperature, under-temperature and short circuit. - Page 13 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za Temperature protection CAN communication to inverters and RS485 communication between battery packs...
- Page 14 LBSA 51.2V 105AH LIFEPO4 BATTERY PACK USER MANUAL www.LBSA.co.za This document is subject to change without notice. ©2020 Lithium Batteries SA 1 Keerom Road, Cleveland, Johannesburg, 2022 TEL: (+27) 10 110 1991 mail: info@lbsa.co.za http://www.lbsa.co.za...
