Summary of Contents for Akytec MSD200
- Page 1 MSD200 Data Logger User guide MSD200_3-EN-120596-1.1 © All rights reserved Subject to technical changes and misprints akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 2: Table Of Contents
6.4. Quick replacement......................26 7. Maintenance........................27 8. Transportation and storage ....................28 9. Scope of delivery........................29 Appendix A. Modbus application ...................30 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 3 Appendix B. Slave configuration example ................38 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 4: Introduction
Manual or in violation of the current regulations and technical standards. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 5: Safety
To avoid damage to the device, keep the device in the warm environment for at least 30 minutes before powering on. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 6: Overview

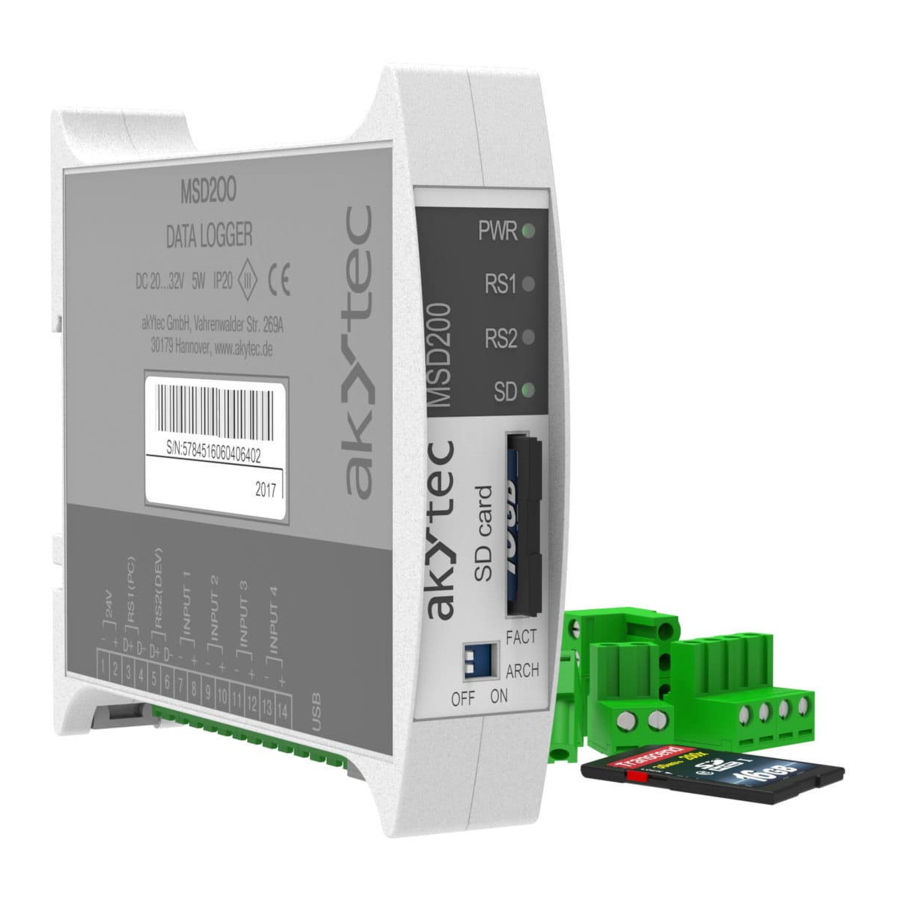

The device is designed in a plastic enclosure for DIN-rail mounting (Sect. 6). Fig. 2.1 Front and side views akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 7: Control Elements
Logging paused, memory card can be removed Green Logging in progress, memory card inserted and Flashing CANNOT be removed Memory card inserted, logging stopped Yellow akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 8: Specifications
Memory card fie system FAT32 File type *.CSV Logging cycle 1…65535 s Backup battery CR2032 Backup time 2 years akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 9: Galvanic Isolation
– clean, dry and controlled environment, low dust level; – closed non-hazardous areas, free of corrosive or flammable gases. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 10 Up to 2000 m ASL Altitude IP Code IP20 EMC immunity Conforms to IEC 61000-6-2 EMC emission Conforms to IEC 61000-6-4 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 11: Msd200 Configurator
(Sect. 4.2) The status of parameter is indicated by its background color (Tab. 4.2). akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 12: Msd200-Pc Connection
When the device is connected over USB, the RS1 interface is temporarily disabled. The RS1 interface is available again when the USB interface is disconnected. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 13: Rs-232 Connection Type
3. Click Apply to save the parameters to device. If the parameters in the configurator and in the device are equal, connection will be established. Fig. 4.3 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 14: Connection Control
– Input 1 – Input 2 – Input 3 – Input 4 Network address of the target device Master, Spy Address akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 15 Different data types are allowed. Modbus only Address bits in request (8…11 bits). Address Master, Spy length AKYTEC only akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 16: File Manager
Create a copy of a log file without digital signature signature Merge files Merge several CSV log files on PC into one akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 17: View Data
500 ms, the next request will be sent right after receiving the response (as soon as possible). Click Apply to apply the changed value. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 18: Settings
– Master (Modbus RTU / ASCII, AKYTEC) – Slave (Modbus RTU only) Mode – Slave Ext (Modbus RTU only) – Spy (AKYTEC only) akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 19 RS2 indicator will change to red. – Response time parameter is not used. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 20: Digital Signature
If it is a manually specified key, you can optionally enter the noticed key into the input field. The message “Digital signature matches” appears if the log file copy has not been changed. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 21: Common Settings
CR2032 backup battery enables powering of RTC for 2 years minimum. 4.6.5 Scheduled logging Use the pane to specify logging timetable. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 22: Analog Inputs
The new adjustment coefficients will be calculated and saved in the device. The message with the information about adjustment results will appear. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 23: Memory Card
If the both buffers become full, but the new card is not yet inserted, some data may be lost. This is indicated by a red flashing SD indicator. 5.2 Log file Fig. 5.1 Log file akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 24: Memory Card Synchronization
PC Radiobut- Synchronize files Specify files to copy: all or CSV only tons Click Apply to save settings. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 25: Installation
– The maximum conductor cross-section for power supply is 1.5 mm². – The USB interface enables hot plugging. The USB cable length should not exceed 3 m. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 26 INPUT 1 + INPUT 2 - INPUT 2 + INPUT 3 - INPUT 3 + INPUT 4 - INPUT 4 + akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
-
Page 27: Rs485 Network
3. Replace the device. 4. Connect detachable parts with existing wiring to the device. Fig. 6.5 Terminal block replacement akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 28: Maintenance
The device should be cleaned with a damp cloth only. No abrasives or solvent- containing cleaners may be used. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 29: Transportation And Storage
Check the device for transport damage and completeness! Report the transport damage immediately to the shipper and akYtec GmbH! akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 30: Scope Of Delivery
9 Scope of delivery 9 Scope of delivery – MSD200 – Short guide – Terminal blocks (set) – SD memory card akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... -
Page 31: Appendix A. Modbus Application
Write a block of contiguous registers (1 to 123 registers) Registers 17 (0x11) Report slave ID Reading the device name and the firmware version akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de... - Page 32 * The request to change the parameters of the RS1 interface is responded with the same interface parameters, the next one – with the new parameters. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 33 1...65535 s UINT16 cycle (s) Stop logging Overflow 0x0048 UINT16 Rewrite behavior memory Clock -10000...+10000 s/10 days 0x0049 INT16 correction* akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 34 Table A.6 Digital key Default Register Description Data type Parameter (Comment) 8 registers (W only) 0x00C0 Key length: UINT16[8] 128 bits 0x00C7 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 35 INT16 UINT16 INT32 UINT32 FLOAT32 Big-endian (3-2-1-0) Data type 0x0115 UINT16 INT16 UINT16 INT32 UINT32 FLOAT32 Middle-endian (1-0-3-2) INT32 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 36 Max. physical 0x1112...0x1117 …10 FLOAT32 value NOTE * All channels are requested with one read / write command. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 37 5 (Low voltage) 0 (at power Last network 0x20C1 0…255 UINT16 error code Memory UINT16 0x20C2… signature [16] 0x20D1 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 38 UINT16 ErrFlash Result 0x3010 Timeout byte 1-2 (RMS*) FLOAT32 byte 3-4 (Value) FLOAT32 NOTE * Root Mean Square Error. akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
- Page 39 – values can only be transferred to MSD200 with write function 16 (0x10); – for INT variables, always set the number of registers to 2. Fig. B.1 akytec GmbH - Vahrenwalder Str. 269 A - 30179 Hannover - Germany Tel.: +49 (0) 511 16 59 672–0 - www.akytec.de...
