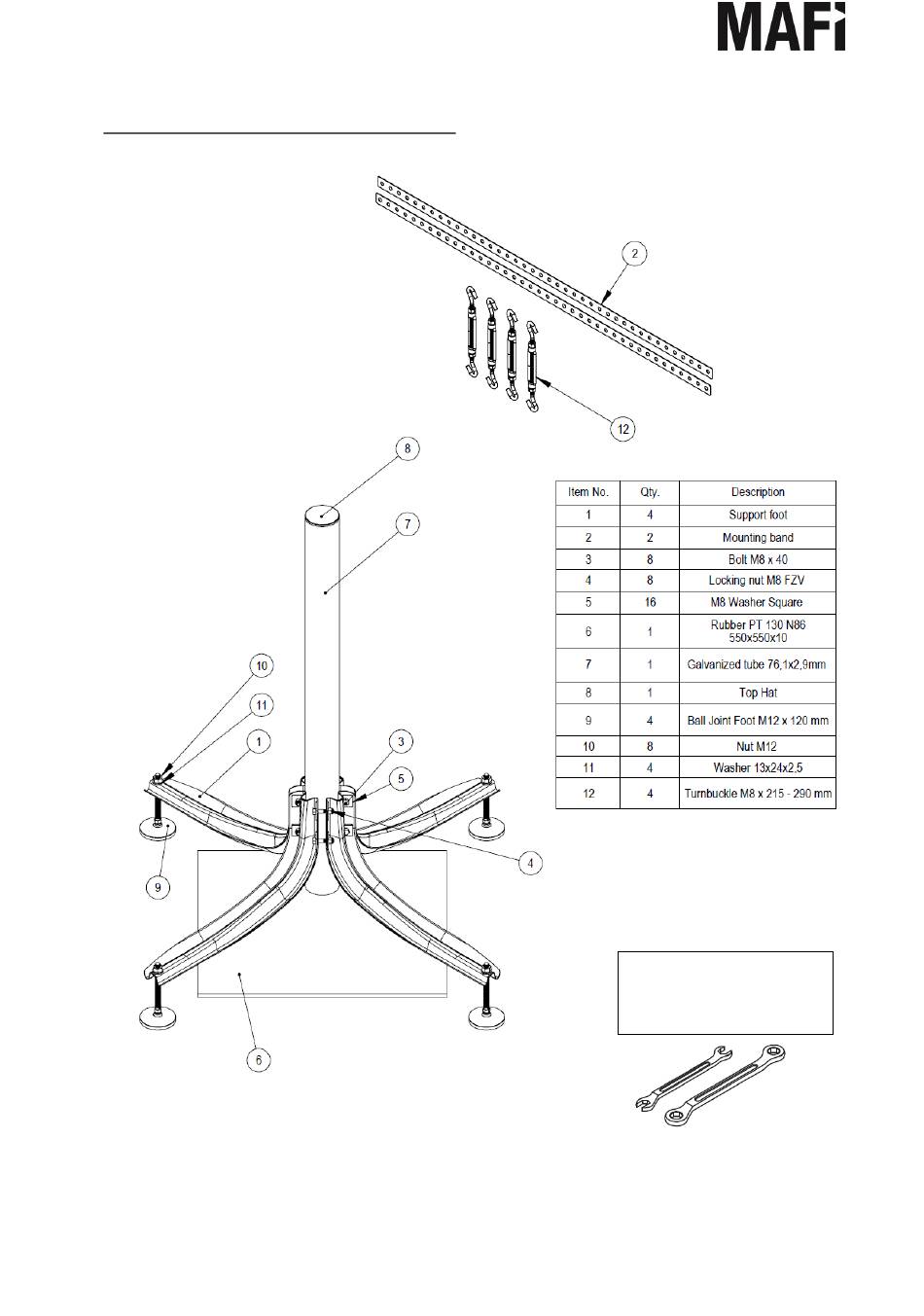

- Page 1 Mounting description MAFI 4120 ____________________________________________________________________________________________________ Package content MAFI 4120 Installation equipment (not included). Size 13 (x2), 14 & 18 mm Page 1(6) MP4120 rev A © MAFI AB 2019...
-
Page 2: Mounting Procedure
Mounting description MAFI 4120 ____________________________________________________________________________________________________ Mounting procedure: Item 2 Item 6 Item 4 Item 5 Item 3 Do not tighten! Note! 1, 2 or 3 ballast weights are optional Page 2(6) MP4120 rev A © MAFI AB 2019... - Page 3 Mounting description MAFI 4120 ____________________________________________________________________________________________________ Item 8 Item 7 Do not tighten! Align Page 3(6) MP4120 rev A © MAFI AB 2019...
- Page 4 Mounting description MAFI 4120 ____________________________________________________________________________________________________ Tension the bolts symmetrically (4 tread turns through the nut). Equal space (x4) Item 10 Item 11 Item 9 Adjust feet height for support (x4) Page 4(6) MP4120 rev A © MAFI AB 2019...
- Page 5 Mounting description MAFI 4120 ____________________________________________________________________________________________________ Align 31 Nm (x4) Item 12 Page 5(6) MP4120 rev A © MAFI AB 2019...
- Page 6 The tightening torques recommended in this mounting description presupposes bolts, threaded rods and nuts in delivery state. Nuts are to be lubricated before assembly. Follow local building regulations. MAFI AB, the product manufacturer, does not warrant other than the product during mounting onto roof or other similar assemblies.
