Tyro Fornax Basic Manual

Tyro Fornax Basic Forestry Winch Control
Manual, standard 868 MHz version

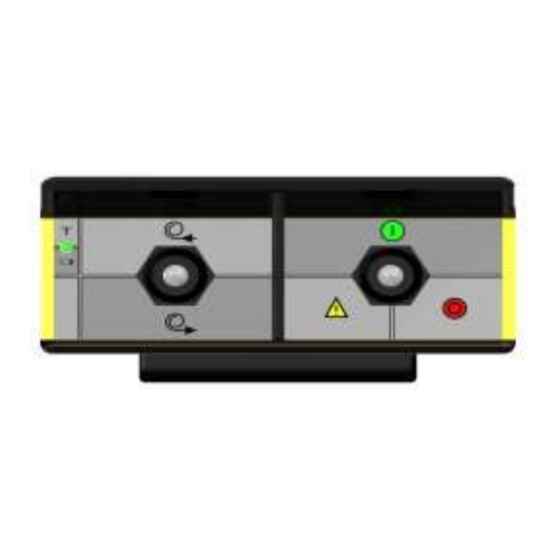

Functions of the transmitter:

Fornax Basic
Wind up
Unwind / continuous (after the switch is pressed down for 3 seconds).
The continuous function is cancelled with the wind-up function.
In that case the wind-up function does not immediately become active, but only when pressed
again.
Transmitter on - Press the toggle switch in the direction of the symbol for 1 second.
Transmitter off - Press the toggle switch in the direction of the symbol for 1 second.
Active emergency call - Press the toggle switch in the direction of the symbol for 5 seconds.
The emergency call output can be reset by switching the transmitter back on.
Emergency stop, all the functions that are switched on will switch off.
The emergency stop button is only active as long as the transmitter is on.
Status LED on the transmitter
LED flashes green: Only during transmission.
LED flashes red: During transmission if the battery capacity falls below 10%.
LED briefly lights up red when switching on the transmitter:
A function button is active, there is an unsafe situation. Now the transmitter will not switch on.
Changing the battery
If the status LED onthe transmitter flashes red during transmission, the 9V battery must be replaced
within the next few days.
Tyro Remotes
Bedrijvenpark Twente 1B
7602 KA Almelo
Nederland
Fornax Basic - Safe
Tel: +31-(0)546-588790
Fax: +31-(0)546-579490
E-mail: info@tyroremotes.eu
Website: www.tyroremotes.eu
