EECI ADC-8U15HG Technical Reference

Analog to digital converter
Hide thumbs
1
2
3
4
5
6
7
Table of Contents

Advertisement

Quick Links

Download this manual

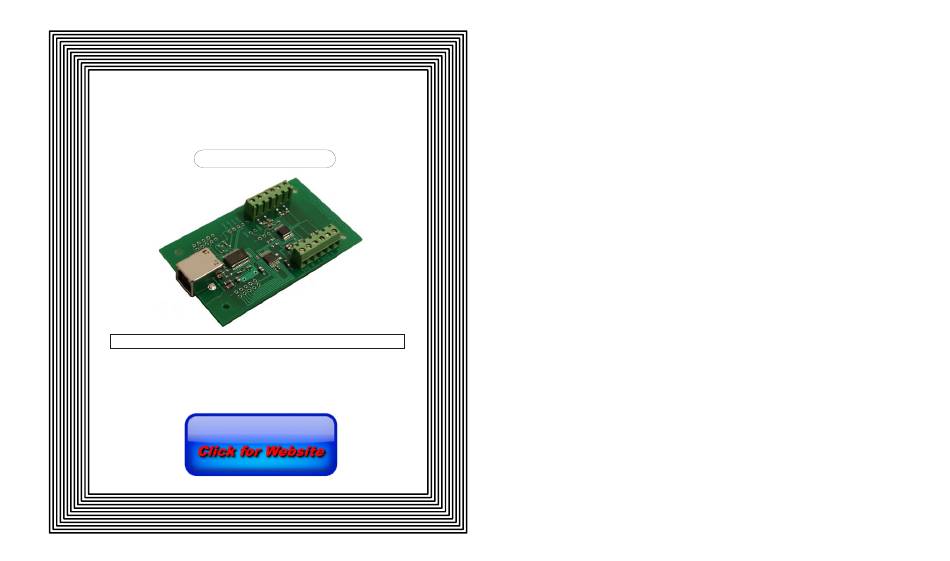

ADC-8U15HG
ANALOG TO DIGITAL
CONVERTER
TECHNICAL REFERENCE
Click for more info:
www.eeci.com/adc-8u15hgp.htm
PHONE...................
(937) 349-6000
ORDERS................
(800) 842-7714
TECH SUPPORT...
(937) 349-6000
E-mail.....................
sales@eeci.com
www.eeci.com

TABLE OF CONTENTS

Specifications.......................................... page 1
Connection Diagram and Warranty......... page 2
Technical Support................................... page 2
Terminal Block Connections.................... page 2
Set-Up and Testing................................. page 3 & 4
Device Manager...................................... page 4
Trouble-Shooting..................................... page 5
Input & Relay Expansion Ports............... page 5
Auto Start-Up.......................................... page 6
The ADC-8U15HG Data Logger.............. page 7
Programming Examples......................... page 7
Voltage Reference for the analog inputs. page 8
Single Ended Analog Inputs.................... page 8
Analog Scaling and Differential Inputs.... page 9
Voltage Inputs and Sensor Interfacing.....page 10 & 11
Mounting..................................................page 11
SPECIFICATIONS
Power Supply....................... 5 volts DC - powered from USB port (USB version only)
Operating Temp. Range......
-40° C to +85° C
Serial Data Protocol............. 75 to 6,000,000 baud - auto detect (defaults to 115,200 baud)
Full duplex operation (data bits, parity, stop bits will auto detect)
Maximum Sampling Rate...... 100 samples per second or better
Analog Inputs....................... 8 single-ended inputs (15 bit resolution) - no missing codes
or 4 fully differential inputs (16 bit resolution) - no missing codes
(15 bit resolution will divide your measurement range into 32,768 different increments)
(16 bit resolution will divide your measurement range into 65,536 different increments)
Voltage Input Range............
Standard Gain: 0 to 512 mv, 0 to 1.024 volt, 0 to 2.048 volts, 0 to 2.5 volts, 0 to 5 volts
+/-512 millivolt, +/- 1.024 volt, +/- 2.048 volts, +/- 5 volts in 16 bit differential
High Gain: 0 to 256 millivolt, 0 to 128 millivolt ,0 to 64 millivolt, 0 to 32 millivolt
or 0 to 16 millivolt when inputs are 15 bit single ended
+/-256 millivolt, +/-128 millivolt ,+/- 64 millivolt, +/-32 millivolt or +/-16 millivolt
when inputs are 16 bit differential
(bank must be set to 2 channel 16 bit differential mode when using high gain settings)
Single ended inputs may connected to High Gain channels with 15 bit output only
Expansion Capability............ expandable to control up to 136 relays/inputs (or combinations) using
EX-8M, EXM-16 or EXM-32 Relay I/O Expansion Modules
Interface..............................
USB (also available in WiFi version (ADC8-15HGWIFI), Ethernet version
(ADC8-15HGENET) RS-232 version (ADC8-15HGRS232) or
RS-485 version (ADC8-15HGRS485))
Software Compatibility.........
Windows XP, Vista, Windows Server, Windows 7, 8.1, Windows 10 and Windows 11
(XP and Vista drivers are not available with Windows 11 versions)
Weight.................................
.5 ounce
Size...................................... 1.875 inches by 3.125 inches
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADC-8U15HG and is the answer not in the manual?

Questions and answers

Related Manuals for EECI ADC-8U15HG

Summary of Contents for EECI ADC-8U15HG

  • Page 1: Table Of Contents

    ADC-8U15HG Device Manager........page 4 Trouble-Shooting........page 5 Input & Relay Expansion Ports....page 5 ANALOG TO DIGITAL The ADC-8U15HG User Interface... page 6 Auto Start-Up.......... page 6 The ADC-8U15HG Data Logger....page 7 CONVERTER Programming Examples......page 7 Voltage Reference for the analog inputs. page 8 Single Ended Analog Inputs....

  • Page 2: Technical Support

    #3 (Step 2) Connect your ADC-8U15HG Analog to Digital Converter to any available USB port on your computer using a analog input #4 CC-USBB cable (1 to 15 foot). A high percentage of systems will be up to date and you will not see any activity or a analog ground pop-up message (allow up to 30 seconds for any system message).

  • Page 3: Trouble-Shooting

    Settings. Click on Control Panel and click on the the Device Manager icon. up will prompt you for the com port to be used with your ADC-8U15HG A to D Converter (correct com port should be shown).You may edit the com port if incorrect.

  • Page 4: The Adc-8U15Hg User Interface

    Windows applications from ReadInputs(); sending or receiving data from the ADC-8U15HG. The data logger may be enabled by checking the box in the data logger section and entering the desired time interval and file type information. See page 12 for additional information.
  • Page 5 15 bit single ended or 16 bit fully differential - 1,024 increments per mv. The ADC-8U15HG may be set to accept (4) fully differential inputs in place of the (8) single ended inputs. The differential voltage input range is determined by the reference setting as shown on the previous page. The differential Option 11: .016 volt - allows a (0 to .016) volt input range or (-.016 to +.016) volts fully differential (= 0 to 16mv)

  • Page 6: Single Ended Analog Inputs

    ADC-8U15HG. Most types of sensors may be located up to 1,000 feet from the ADC-8U15HG. Pull up resistors may be installed on the underside of the ADC-8U15HG for 2 wire sensors that receive power from the USB port. The...
  • Page 7 (which average the signal level to reduce noise). Copyright 2020 - 2022 Electronic Energy Control, Inc. All Rights Reserved Check the Start Minimized box to start the ADC-8U15HG device driver in "driver only" mode. Blue 8 icon will show in your system tray. Page 12...
