Jimmy Styks Scout Expedition Owner's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
OWNER'S GUIDE

Advertisement

loading
Need help?

Need help?

Do you have a question about the Scout Expedition and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jimmy Styks Scout Expedition

Summary of Contents for Jimmy Styks Scout Expedition

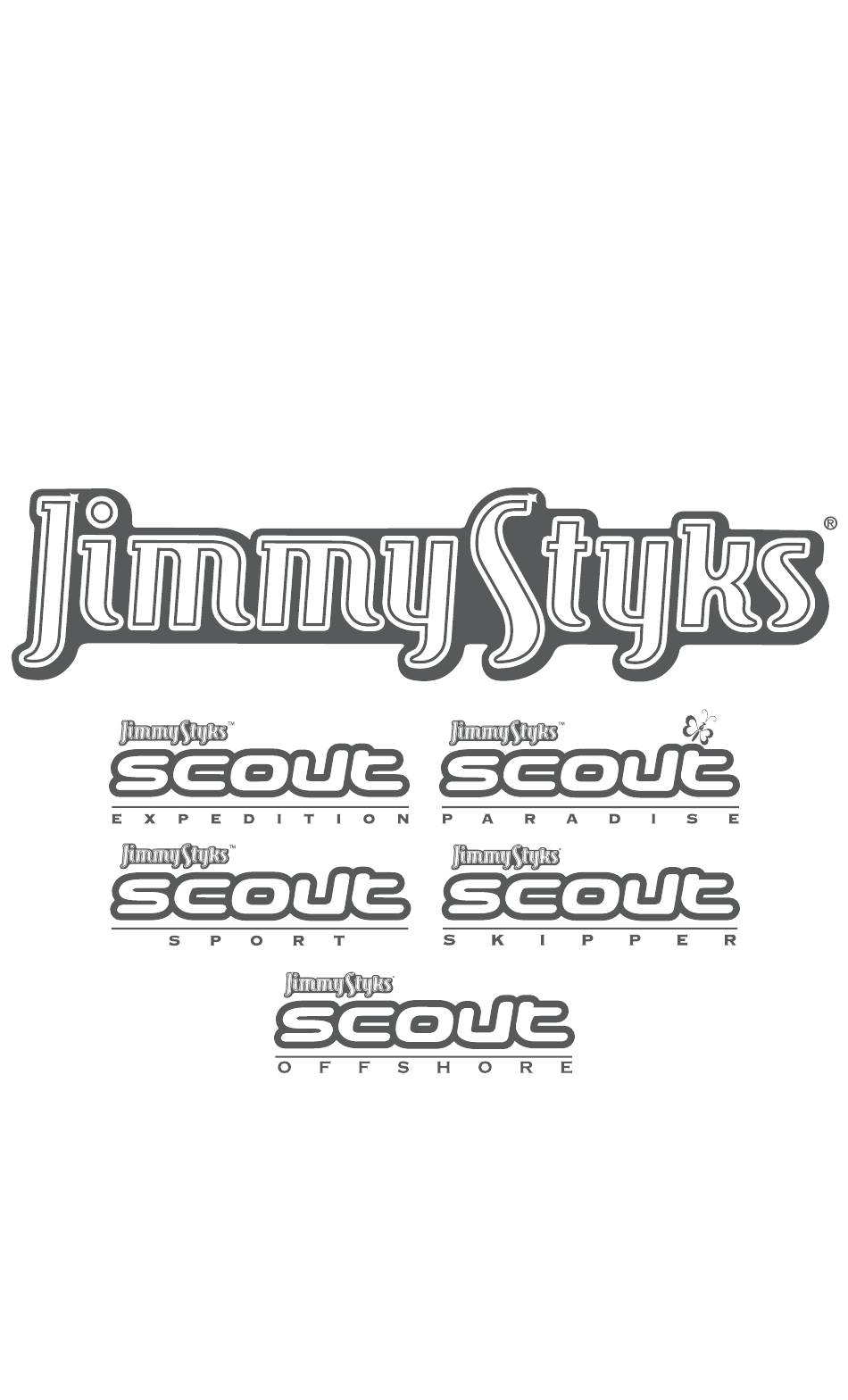

  • Page 1 OWNER’S GUIDE...
  • Page 2 - TIGHTEN VENT CAP BEFORE TAKING BOARD INTO THE WATER. - REGULARLY INSPECT VENT CAP O-RING FOR CRACKS, TEARS AND/OR DAMAGE BEFORE USE. - FOR BEST VENTING, REPLACE YOUR CAP AND CAP SEAL ANNUALLY. - REGISTER YOUR JIMMY STYKS PADDLEBOARD ONLINE TO ACTIVATE PRODUCT WARRANTY. ®...

  • Page 3: Table Of Contents

    SECTION 1 MODELS, FEATURES AND ACCESSORIES PAGES 4 - 13 SECTION 2 CARE AND MAINTENANCE PAGES 14 - 15 SECTION 3 JIMMY STYKS VENTED HANDLE USE PAGES 16 - 19 ® SECTION 4 FINS AND INSTALLATION PAGES 20 - 21...
  • Page 4 SE CTI ON 1 FEATURES CAMERA MOUNT BUNGEE TIE-DOWN SYSTEM SELF-BREATHING VENT LEASH PLUG FIN BOX/FCS STYLE PLUGS PRODUCT SERIAL NUMBER RIDER COMPATIBILITY NOVICE RIDER SKILL VOLUME FLATWATER SURF ENVIRONMENT LITERS FRAGILE RUGGED DURABILITY LIMIT STABLE AGILE PERFORMANCE POUNDS SPECIFICATIONS LENGTH 11’6”...

  • Page 5: Models, Features And Accessories

    MODELS, FEATURES AND ACCESSO RIES A. 1X ADJUSTABLE LENGTH PADDLE B. 1X STABILIZER FIN + HARDWARE C. 1X SPARE VENT CAP D. 1X 10 FT. COIL LEASH E. 1X BOARD BAG *INCLUDED ACCESSORIES VARY BY RETAILER QUESTIONS/ CO MMENTS: 1-800-370-0745...
  • Page 6 SE CTI ON 1 FEATURES CAMERA MOUNT SELF-BREATHING VENT LEASH PLUG FIN BOX/FCS STYLE PLUGS PRODUCT SERIAL NUMBER RIDER COMPATIBILITY NOVICE RIDER SKILL VOLUME FLATWATER SURF ENVIRONMENT LITERS FRAGILE RUGGED DURABILITY LIMIT STABLE AGILE PERFORMANCE POUNDS SPECIFICATIONS LENGTH 11’4” (345 CM) WIDTH 31”...
  • Page 7 MODELS, FEATURES AND ACCESSO RIES A. 1X ADJUSTABLE LENGTH PADDLE B. 1X STABILIZER FIN + HARDWARE C. 2X RAIL FINS + HARDWARE D. 1X SPARE VENT CAP E. 1X 10 FT. COIL LEASH F. 1X BOARD BAG *INCLUDED ACCESSORIES VARY BY RETAILER QUESTIONS/ CO MMENTS: 1-800-370-0745...
  • Page 8 SE CTI ON 1 FEATURES CAMERA MOUNT SELF-BREATHING VENT LEASH/UTILITY PLUG FIN BOX/FCS STYLE PLUGS PRODUCT SERIAL NUMBER RIDER COMPATIBILITY NOVICE RIDER SKILL VOLUME FLATWATER SURF ENVIRONMENT LITERS FRAGILE RUGGED DURABILITY LIMIT STABLE AGILE PERFORMANCE POUNDS SPECIFICATIONS LENGTH 11’0” (335.3 CM) WIDTH 31”...
  • Page 9 MODELS, FEATURES AND ACCESSO RIES A. 1X ADJUSTABLE LENGTH PADDLE B. 1X STABILIZER FIN + HARDWARE C. 2X RAIL FINS + HARDWARE D. 1X SPARE VENT CAP E. 1X 10 FT. COIL LEASH F. 1X BOARD BAG *INCLUDED ACCESSORIES VARY BY RETAILER QUESTIONS/ CO MMENTS: 1-800-370-0745...
  • Page 10 SE CTI ON 1 FEATURES CAMERA MOUNT BUNGEE TIE-DOWN SYSTEM SELF-BREATHING VENT LEASH/UTIITY PLUGS FIN BOX/FCS STYLE PLUGS PRODUCT SERIAL NUMBER RIDER COMPATIBILITY NOVICE RIDER SKILL VOLUME FLATWATER SURF ENVIRONMENT LITERS FRAGILE RUGGED DURABILITY LIMIT STABLE AGILE PERFORMANCE POUNDS SPECIFICATIONS LENGTH 12’6”...
  • Page 11 MODELS, FEATURES AND ACCESSO RIES A. 1X ADJUSTABLE LENGTH PADDLE B. 1X STABILIZER FIN + HARDWARE C. 1X SPARE VENT CAP D. 1X 10 FT. COIL LEASH E. 1X BOARD BAG *INCLUDED ACCESSORIES VARY BY RETAILER QUESTIONS/ CO MMENTS: 1-800-370-0745...
  • Page 12 SE CTI ON 1 FEATURES LEASH PLUG FIN BOX/FCS STYLE PLUGS PRODUCT SERIAL NUMBER RIDER COMPATIBILITY NOVICE RIDER SKILL VOLUME FLATWATER SURF ENVIRONMENT LITERS FRAGILE RUGGED DURABILITY LIMIT STABLE AGILE PERFORMANCE POUNDS SPECIFICATIONS LENGTH 11’0” (335 CM) WIDTH 31” (78.8 CM) THICKNESSS 4.8”...
  • Page 13 MODELS, FEATURES AND ACCESSO RIES A. 1X STANDARD PADDLE B. 1X STABILIZER FIN + HARDWARE C. 1X 11 FT. TOURING LEASH *INCLUDED ACCESSORIES VARY BY RETAILER QUESTIONS/ CO MMENTS: 1-800-370-0745...
  • Page 14 SE CTI ON 2 KEEP IN A WELL VENTILATED, SHADED AREA WHEN NOT IN USE. Direct sunlight can damage a board if left exposed for a period of time. At approximately 74°C (165°F) all EPS foam begins to out-gas, become unstable and delaminate. Delamination is characterized by a separation of the board’s core from the protective epoxy skin.

  • Page 15: Care And Maintenance

    STYKS boards use minimal colored paints/decals in areas prone to damage so repairs can ® be made with minimal aesthetic disruption. OVERHEATING YOUR PADDLEBOARD IS not COVERED BY JIMMY STYKS ® MANUFACTURERS WARRANTY! REGISTER YOUR JIMMY STYKS ® Register your JIMMY STYKS SUP online to ®...
  • Page 16 SE CTI ON 3 The JIMMY STYKS self- ® breathing board vent is conveniently integrated into the carry handle located approximately mid-length on the deck-side.* As temperatures within the core increase, air trapped within the watertight skin of the board expands. The...

  • Page 17: Jimmy Styks ® Vented Handle Use

    JIMMY STYKS VENTED HAND LE USE ® CLOSE THE VENT BEFORE EACH USE OPEN THE VENT AFTER EACH USE. Self-Breathing Cap While the JIMMY STYKS vent handle ® with GORE-TEX® comes equipped with a self-breathing Membrane GORE-TEX membrane, it is always a ®...
  • Page 18 SE CTI ON 3 The JIMMY STYKS self- ® breathing board vent is conveniently integrated into the carry handle located approximately mid-length on the deck-side.* As temperatures within the core increase, air trapped within the watertight skin of the board expands. The...
  • Page 19 JIMMY STYKS VENTED HAND LE USE ® CLOSE THE VENT BEFORE EACH USE OPEN THE VENT AFTER EACH USE. While the JIMMY STYKS vent handle ® SELF-BREATHING VENT CAP comes equipped with a self-breathing GORE-TEX membrane, it is always a ®...
  • Page 20 SE CTI ON 4 FINS AND HARDWARE JIMMY STYKS includes a center stabilizer or racing fin and rail fins (depending on model and fin ® configuration). We recommend removing fins after each use to prevent damage to the fin, fin box and board.

  • Page 21: Fins And Installation

    FINS AND INSTALLATION CENTER FIN INSTALLATION STEP 1 STEP 2 INSERT SCREW PLATE INTO FIN BOX SLOT INSERT FIN INTO FIN BOX SLOT). AND SLIDE PLATE FORWARD. STEP 4 STEP 3 ROTATE FIN FORWARD AND ALIGN FIN SCREW ADJUST FIN TO DESIRED POSITION AND WITH SCREW PLATE.
  • Page 22 SE CTI ON 5 LEASH VARIATIONS JIMMY STYKS provides one of two leash variations (standard or coil) and a leash loop with your SUP ® accessory package. It is recommended that you remove your leash after use to prevent unintentional snagging.

  • Page 23: Leash And Installation

    L EASH AND INSTALLATIO N HOW TO MAKE A LEASH LOOP STEP 1 PULL LEASH TIE THROUGH EYELET. LEASH PLUG LEASH TIE STEP 2 PULL KNOT THROUGH LOOP AND PULL TIGHT. STEP 3 OPEN VELCRO CUFF AND ATTACH LEASH TO LEASH LOOP. QUESTIONS/ CO MMENTS: 1-800-370-0745...
  • Page 24 SE CTI ON 6 PADDLE MODELS JS ADJUSTABLE PADDLE JS STANDARD PADDLE JS CARBON FIBER PADDLE Available in a 3-Piece INCLUDES: Standard, Wide INCLUDES: Premium Travel option with and Round Grip Handles. Carbon Grip Handle. inflatable SUP packages. REQUIRES REQ UIRES SIZING SIZING...

  • Page 25: Paddles

    Paddles have a FORWARD and BACK facing side. The ribbed side of the handle, adjustable lever and “JIMMY STYKS” logo on the blade indicate the FORWARD facing side. Additionally, blade should be in a FORWARD ANGLE (as shown on right).
  • Page 26 SE CTI ON 6 JS ADJUSTABLE PADDLE SIZING DO NOT EXTEND UPPER SHAFT BEYOND 24 IN (61CM). Extending beyond the maximum extension limit can result in permanent damage to the adjustment clip while paddling. We recommend paddle to be rinsed with fresh water after every use and upper shaft removed for drying.

  • Page 27: Paddle Sizing

    PAD DLE SIZING JS STANDARD AND CARBON FIBER PADDLE SIZING SIZING THE PADDLE WILL REqUIRE THE FOLLOWING TOOLS/SUPPLIES: Measuring Tape, Hacksaw, Pen/Pencil or Masking Tape, Adhesive (Use Silicone for JS Standard Paddles; Use Epoxy for JS Carbon Fiber Paddles). 7 IN. (17.8 CM) STEP 1 DETERMINE PADDLE LENGTH.
  • Page 28 SE CTI ON 7 TRANSPO RTATION TIPS WHEN STRAPPING TO ROOF, BOARD SHOULD BE BOTTOM SIDE UP. When securing your paddle board to the roof of a vehicle, always place the board bottom side up. Placing the board topside up will create wind drag and instability while driving. Placing board nose forward or tail forward are both acceptable means of transport.
  • Page 29 If it is deemed a manufacturing or material flaw, we will issue an RMA number. This number along with the damaged product will need to be returned to the closest warehouse (Vancouver or Huntington Beach) at customer’s expense. Upon physical review, JIMMY STYKS will make ®...
  • Page 31 NOTES QUESTIONS/ CO MMENTS: 1-800-370-0745...
  • Page 32 VISIT US ONLINE Discover our latest products and information online: www.jimmystyks.com...

This manual is also suitable for:

Scout paradiseScout sportScout skipperScout offshore
