Page 3: Table Of Contents
Technical Data Transport and Storage Commissioning Mounting the System scouter Positioning Guide General Notes on Positioning essentim Recommends the Following Positioning Procedure Cleaning, Maintenance and Repair Cleaning Maintenance and Repair Defect Disposal FAQs Troubleshooting Changelog User Guide scouter - Version 1.2... -
Page 4: Notes
No part of this document may be reproduced, electronically duplicated or distributed in any form without written permission from essentim GmbH. essentim GmbH assumes no liability for any errors or omissions. The determination of valid measurement results, conclusions and measures derived therefrom are the sole responsibility of the user. -
Page 5: Safety Instructions
Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, ● stickers and labels in a legible condition. Do not open the device! ● The product should not be sterilized! ● User Guide scouter - Version 1.2... -
Page 6: Intended Use And User

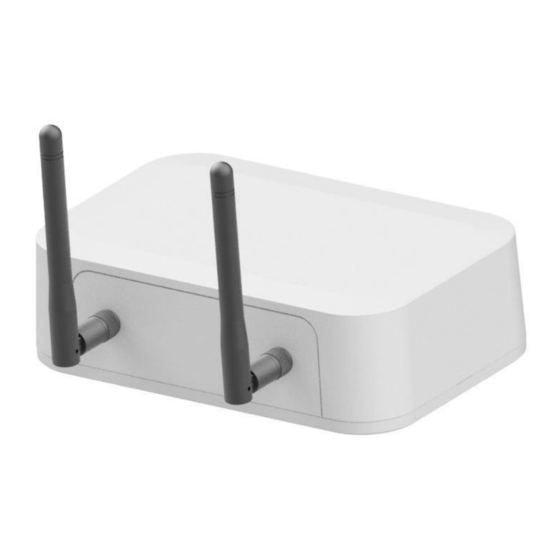

Intended Use and User The essentim scouter is the base station for the essentim wireless sensor network. With the scouter, essentim sensors can be connected to the essentim cloud. In the cloud, sensors can be managed, measurement data can be stored and processed, visualized and analyzed. The scouter is installed stationary in a normal room climate. -
Page 7: Device Description
Device Description General Information The essentim scouter is the central point of the essentim wireless sensor network. It collects the data from the essentim sensors and forwards them to the essentim cloud. The user can connect to the scouter via the LAN interface to perform the necessary configuration steps. -
Page 8: Technical Data
RoHS, FCC, IC, CE IP protection class (EN 60529) IP20 Further Information Operating system Embedded Linux (Raspbian) Interfaces Bluetooth Low Energy, USB, LAN Dimensions 150 x 105 x 45 (mm) without Antennas Weight Ca. 260 g User Guide scouter - Version 1.2... -
Page 9: Transport And Storage
Always observe all instructions for safe transport The essentim scouter must be secured during transport to prevent possible mechanical impacts. The scouter must not be transported during operation. Before each transport, the antennas must be dismantled. Unused scouters should be stored away from dust, sunlight and moisture. -
Page 10: Commissioning
● Warning Lay all cables so that no person can trip over them. Position the scouter so that no person can trip over it. Do not use any accessories that show external damage or strange behavior. Only use accessories approved by essentim. -
Page 11: General Notes On Positioning
(metallic) objects signals essentim Recommends the Following Positioning Procedure Position the scouter at your desired location, taking into account the "Dos and Don'ts" ● from the previous paragraph. Example 1 Use an essentim sensor unit (e.g. sphere or scope) to test the receiving characteristics at ●... - Page 12 ○ received: if possible, try to place the scouter at a different position If you do not have the possibility to place the scouter centrally in the laboratory, a position close to the incubators should be chosen: Example 2 Again, use an essentim sensor unit to test the receiving characteristics at various, critical ●...
-
Page 13: Cleaning, Maintenance And Repair
Cleaning, Maintenance and Repair Cleaning The scouter can be cleaned with a damp cloth. essentim GmbH recommends the following procedure for cleaning: 1. Switch off the scouter (unplug it). 2. Clean the scouter with a microfiber cloth or a cloth moistened with water. -
Page 14: Disposal
Disposal The scouter is marked in accordance with the EU Directive on Waste Electrical and Electronic Equipment (WEEE). WEEE registration number of essentim GmbH: DE 22316070. This product should not be disposed of with household waste. The scouter can be taken to a designated primary treatment facility for the disposal of electrical and electronic equipment at your own expense for environmentally sound disposal. -
Page 15: Faqs
FAQs 1. What are the main functions of the scouter? The scouter is the central point in the essentim sensor network. It collects the data and sends it to the essentim cloud. 2. Is my browser properly supported? The currently supported browsers are: ●... -
Page 16: Troubleshooting
The network has been renamed, contact your admin 2. I have connected to the scouter, but no sensors (e.g. scopes) show up on the dashboard. a. Make sure that the scopes are turned on. To do this, press the button and see if the scope starts blinking. -
Page 17: Changelog
Changelog 18.01.2018 Erstellung der Bedienungsanleitung 28.07.2020 Anpassung 15.09.2021 Versionsableitung Bedienungsanleitung ohne Mobile App 21.02.2022 Adressänderung, Cloudanpassung 14.04.2022 Übersetzung 22.04.2022 Entfernung der EC Declaration of Conformity User Guide scouter - Version 1.2... - Page 18 User Guide scouter - Version 1.2...
