Restrictions on the installation location:
- Do not mount on the roof of a building!
- Do not block any passageways or escape routes!
- Avoid installation in places where avalanches could fall on the tool shed or
where roof water falls directly onto the garden shed!
- Only set up where appropriate safety is guaranteed (not on cliffs or
in extremely windy places!)
Assembly:
- Ensure that the garden shed is well anchored to its foundations!
- Wear protective gloves during assembly!
- Do not assemble the tool shed in strong winds!
- Where required, use a sturdy stepladder
- Make sure that all screws and metal parts are tightened securely and no parts are left over!
- Some holes and recesses may not be required for your model – therefore work exactly
according to these instructions!
For safety
- When locking it, make sure that no one is inside the tool shed!
- Always lock the tool shed when it is not in use!
- Make sure that children do not use the tool shed (as a toy)!
The following packages are required:
Designation:
Sidewall:
Roof, floor:
Rear wall:
Door:
Shelf (optional):
Shelf (optional):
Assembly instructions
METAL GARDEN SHED
FLORIAN 1207
Thank you for choosing our product!
This manual is for the model ESD-1207E
Package no.
ES4-0425
ES4-0913
ES4-1022
ES4-1722
ES4-1917
ES4-1918

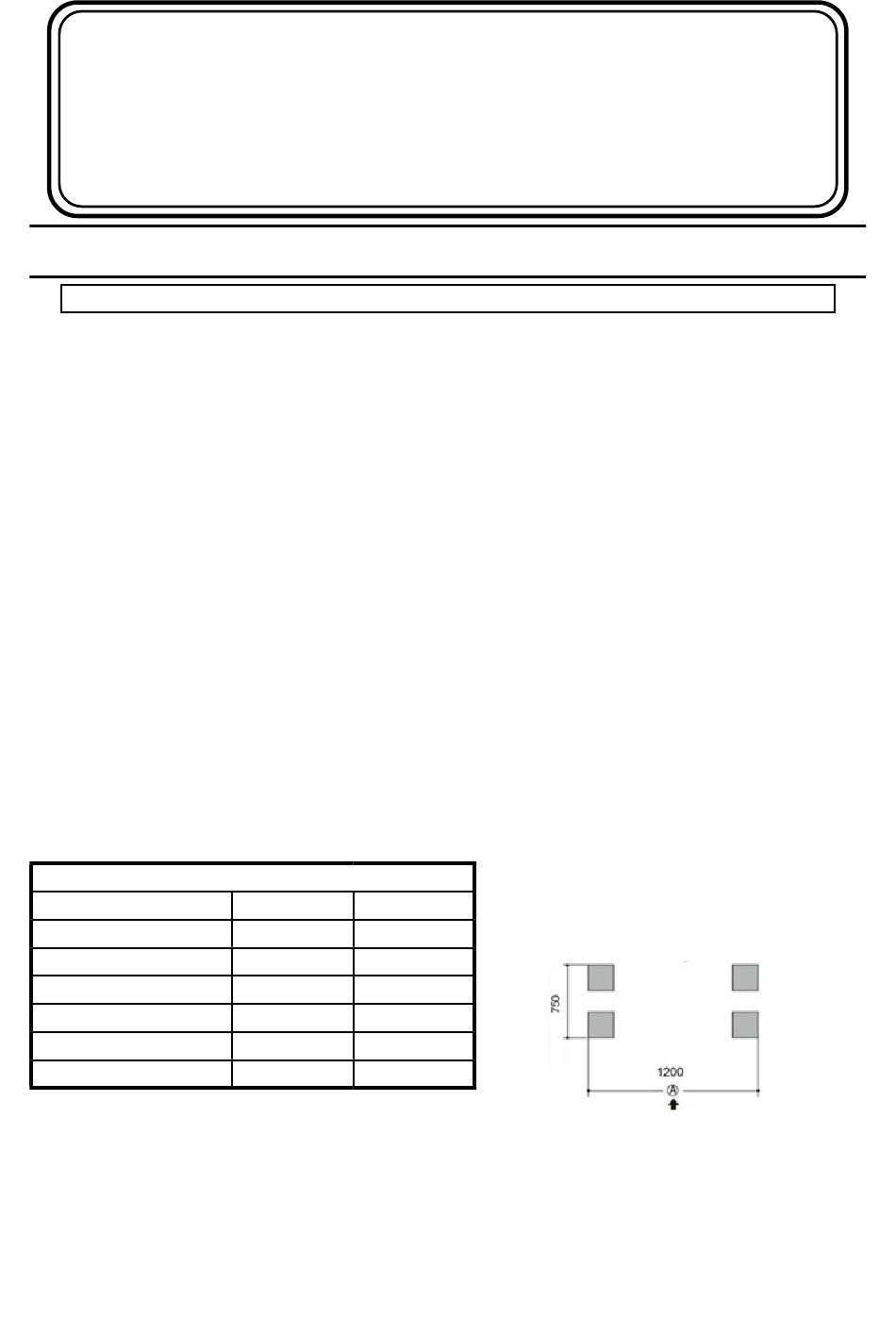

Foundation points
Amount
If you choose a point foundation, place the
1
1
1
1
1
1
balanced and that the points are aligned at right
Make sure that you leave enough distance to
adjacent walls etc. for installation, as you need
Make sure that the roof overhangs do not collide
foundation points as follows
Front
Make sure that the foundation points are
angles!
this space!
with a wall, etc.!
Advertisement
Summary of Contents for Gfp FLORIAN 1207
- Page 1 Assembly instructions METAL GARDEN SHED FLORIAN 1207 Thank you for choosing our product! This manual is for the model ESD-1207E Restrictions on the installation location: - Do not mount on the roof of a building! - Do not block any passageways or escape routes!
-
Page 2: Guarantee Policy
REQUEST: The manufacturer / importer is GFP Handels GesmbH, Passauerstr. 24, A-4070 Eferding, Austria (hereinafter also referred to as „the manufacturer“, „we“ or „us“). If you have any questions about the assembly or the product itself, please contact the supplier through whom you purchased your product. - Page 3 Note: The key is attached to the back of the door. You can use the same key to lock the left and right doors. Screws used: M6x15 There are 3 spare screws for installation. Stainless: 1 pc., golden coloured: 2 pcs. Tool kit: Phillips screwdriver T-shaped wrench...
- Page 4 Laying the floor plate: 1. Place the floor plate on the prepared surface or foundation points and turn the adjustable feet on the four corners clockwise with the T-shaped key until the floor plate is lifted from the surface or foundation points. If the T-shaped key cannot be turned, insert a Phillips screwdriver into the hole of the T-shaped key and use it to turn the key.
- Page 5 Installing the side walls 1. Place the rear, bottom corner of the side wall (left) into the groove on the side of the floor plate b. Insert the lip on the rear side of the side wall into the groove of the floor plate b.
- Page 6 Attaching the door lintel 1. Place the lintel onto the door stop. The ends of the door stop fit into the L-shaped holes of the lintel. 2. a. Make sure that the side wall and the lintel are at right angles to each other and place the bottom part of the metal fitting for the lintel into the right-angled hole on the inside of the door stop.
- Page 7 Attaching the roof panel 1. First remove the two stainless steel screws from the metal clasp. After inserting the metal clasp into the roof panel, reattach it with the stainless steel screws. 2. a. Place the roof panel over the side walls and the lintel. b.
- Page 8 Attaching the rear wall strut a. Slide the rear wall strut into the square opening of the roof. b. Insert the bottom of the strut into the right-angled hole in the floor plate. Place the metal fastener for the roof panel in the top part of the rear wall strut as shown in Step 4 and secure it with a golden screw.
- Page 9 Attaching the rear wall panels 1a. Slide the top part of the rear panel into the inside of the tool shed b. While pushing the top part of the rear wall upwards, insert the bottom part between the rear pillar and the side walls, and then drop it down.
-
Page 10: Attaching The Shelf Stand
Attaching the shelf stand You can choose how you want to place the shelves Attach the top part of the shelf upright to the lintel according to how you want to use them. with a (golden) screw. Then attach the bottom part of the shelf upright with the floor plate with a (golden) screw. - Page 11 Fixing the door handle and inserting the doors The door handle is included in the door package Interior view Before the doors are inserted, the Outer side of the door thin door handle must be mounted on both Door (right and Left) Door (right and Left) thick doors –...
- Page 12 Setting up the door Adjust the door with the screw of the door roller on the inside to align the door at a right angle to the garden shed. Note: Before entering the garden Door shed for adjusting, make sure that the door handle is installed! Screw a.
- Page 13 Installing the shelves Place the metal fitting and the shelf support in the right-angled holes of the rear wall, the door stop and the shelf support strut. Attach the shelf board to the shelf support and the metal fitting as shown in Fig. 2. A punch-out in the shelf support has the further function of preventing the shelf board from falling down.
- Page 14 Final assembly 1. To protect the tool shed from falling over, connect it with a building, etc., by fastening the tool shed with a wire, etc. (not included in delivery) to the metal clasp. Or attach the four anchoring brackets to the four corners and screw them onto the foundation or use ground stakes (ground stakes and screwing material not included).
