Protac PRoX-2622 User Manual

6u compact pci card for socket 370 system w/ vga / lan
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
USER'S
MANUAL
ProX-2622

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRoX-2622 and is the answer not in the manual?

Questions and answers

Summary of Contents for Protac PRoX-2622

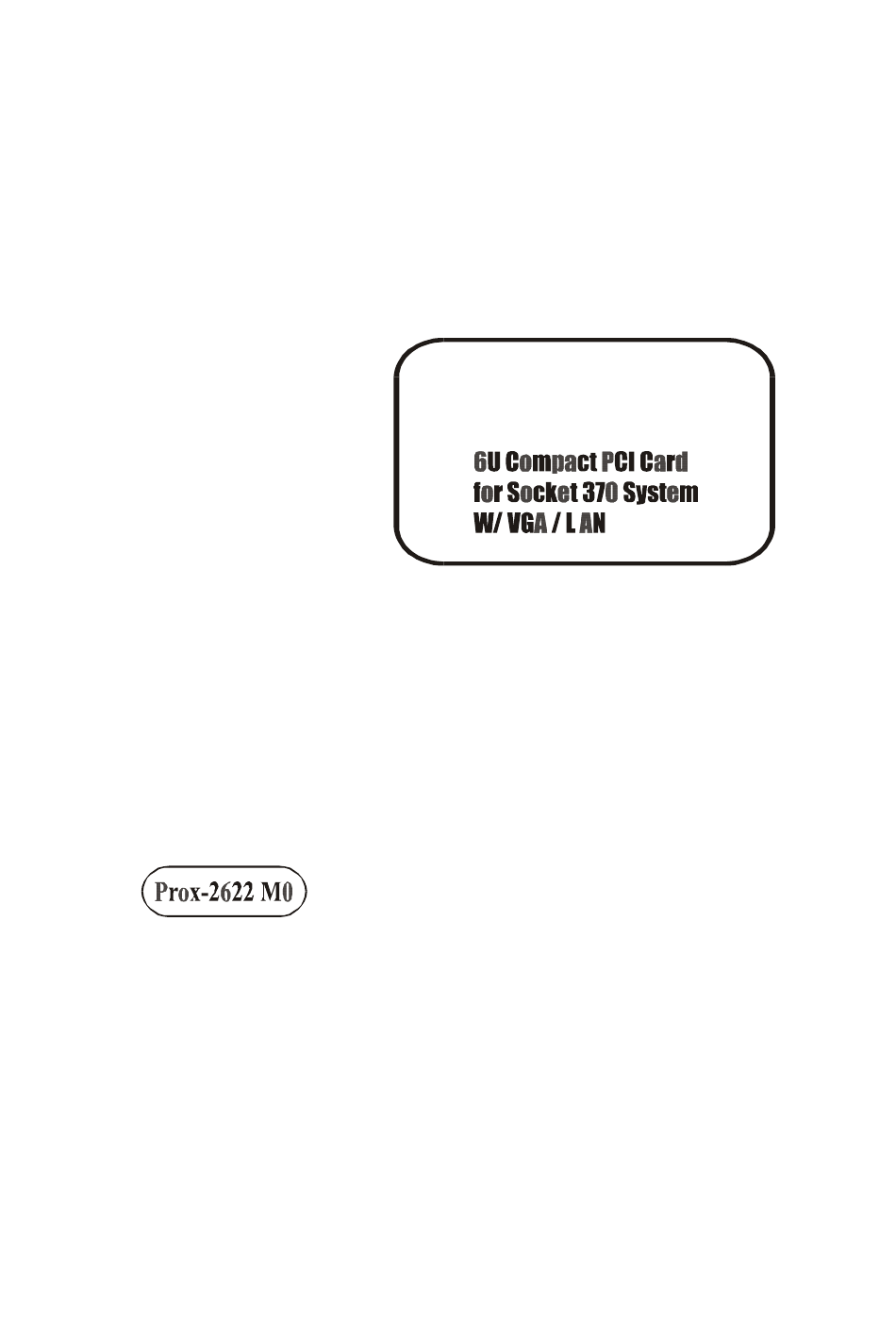

  • Page 1 USER’S MANUAL ProX-2622...
  • Page 2 Copyright Notice Prox-2622 6U Compact PCI Card With VGA / LAN OPERATION MANUAL COPYRIGHT NOTICE This operation manual is meant to assist both Compact PCI manufacturer and end users in installing and setting up the system. The information contained in this document is subject to change without any prior notice.

  • Page 3: Table Of Contents

    Contents TABLE OF CONTENTS CHAPTER 1 INTRODUCTION About This Manual ............System Specifications ............ Safety Precautions ............CHAPTER 2 HARDWARE CONFIGURATION Jumper & Connector Quick Reference Table ....Component Locations ........... How to Set the Jumpers ..........PS/2 Mouse Connector ……………………………….. Keyboard Connector …………………………………..
  • Page 4 Contents VGA Driver Utility …........... Flash BIOS Update ............LAN Driver Utility …............ Watchdog Timer Configuration ........CHAPTER 4 GREEN PC FUNCTION Power Saving Block Diagram ........CPU Doze Mode ............System Standby Mode ........... System Suspend Mode ..........CHAPTER 5 AWARD BIOS SETUP Introduction ..............
  • Page 5 Contents Interrupt Map ................RTC & CMOS RAM Map ............Timer & DMA Channels Map ..........I/O & Memory Map ..............APPENDIX C TROUBLE SHOOTING Trouble Shooting for Error Messages ........Trouble Shooting for POST Codes ...........
  • Page 6 CHAPTER INTRODUCTION This chapter gives you the information for Prox-2622. It also outlines the System specifications. Section includes: About This Manual System Specifications Safety precautions Experienced users can skip to chapter 2 on page 2-1 for Quick Start. Page:1-1...

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction 1-1. ABOUT THIS MANUAL Thank you for procuring our Prox-2622 Compact PCI Card. The Prox-2622 is a 6U-sized Compact PCI all-in-one card enhanced with VGA and LAN, which complies with PICMG 2.0 R2.1 Compact PCI specifications. It provides faster processing speed, greater expandability and can handle more tasks than before.

  • Page 8: System Specifications

    Mini DIN connector, support for PC/AT Keyboard. MOUSE CONNECTOR : Mini DIN connector, support for PS/2 Mouse. BUS SUPPORT : Internal PCI Bus for VGA, IDE, & LAN. PCI to PCI bridges drive up to 8 Compact PCI BUS. Prox-2622 USER ′ S MANUAL Page: 1-3...
  • Page 9 Intel 82559 Fast Ethernet 10/100 Base-T PCI-BUS SERIAL PORT : Two high speed 16550 Compatible UARTs with Send / Receive 16 Byte FIFOs. COM1 = RS-232; COM2 = RS-232/422/485 selectable. MIDI Compatible. Programmable Baud Rate Generator. Prox-2622 USER ′ S MANUAL Page: 1-4...
  • Page 10 DMA CHANNELS : INTERRUPT CONTROLLERS : 82C59 x 2 INTERRUPT LEVELS : OPERATING TEMPERATURE : 0°C to 60°C. COMPACT PCI BUS : PCI to PCI bridges drive up to 8 compact PCI BUS. Prox-2622 USER ′ S MANUAL Page: 1-5...

  • Page 11: Safety Precautions

    3. Always disconnect power when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. Prox-2622 USER ′ S MANUAL Page: 1-6...

  • Page 12: Chapter 2 Hardware Configuration

    CHAPTER HARDWARE CONFIGURATION ** QUICK START ** Helpful information describes the jumper & connector settings, and component locations. Section includes Jumper & Connector Quick Reference Table Component Locations Configuration and Jumper settings Connector’s Pin Assignments Page 2-1...

  • Page 13: Jumper & Connector Quick Reference Table

    HDD1 Floppy Disk Drive Connector …………………… FDD1 Solid State Disk Connector ……………………… SSD Memory Mapping Selection …….…………. JP2, JP5 Memory Installation ……………………………... DIMM1, DIMM2 Reserved pin ……………………………………... PWR1, JP3, JP16 Reserved pin ……………………………………... ’ Page: 2-2 Prox-2622 USER S MANUAL...

  • Page 14: Component Locations

    Chapter 2 Hardware Configuration 2-2. COMPONENT LOCATIONS CompactPCI DIMM 1 RESET DIMM 2 GREEN FDD1 HDD1 HDD PWR 12887 CompactPCI Prox-2622 Connectors, Jumpers, and Components’ Location ’ Page: 2-3 Prox-2622 USER S MANUAL...

  • Page 15: How To Set The Jumpers

    PIN2 & PIN3 to create another setting. The same jumper diagrams are applied all through this manual. The figures on the next following page will show you what the manual diagrams look like and what they represent. ’ Page: 2-4 Prox-2622 USER S MANUAL...
  • Page 16 Chapter 2 Hardware Configuration JUMPER DIAGRAMS JUMPER SETTINGS ’ Page: 2-5 Prox-2622 USER S MANUAL...

  • Page 17: Ps/2 Mouse Connector

    2-4. PS/2 MOUSE CONNECTOR PS2 : PS/2 Mouse Connector The pin assignments are as follows: ASSIGNMENT MOUSE DATA MSCLK 2-5. KEYBOARD CONNECTOR KBD : Keyboard Connector The pin assignments are as follows: ASSIGNMENT KB DATA KBCLK ’ Page: 2-6 Prox-2622 USER S MANUAL...

  • Page 18: Lan Connector

    LED indicates power link, while the orange LED is used to detect data active transfer signal. The pin assignments are as follows: ASSIGNMENT ISOLATED GND ISOLATED GND ISOLATED GND ISOLATED GND PULL HI LED – Green PULL HI LED – Orange ’ Page: 2-7 Prox-2622 USER S MANUAL...

  • Page 19: Universal Serial Bus Connector

    There are two USB connector found in this board, details are shown below. USB1 : Universal Serial Bus Connector The pin assignments are as follows: ASSIGNMENT USBP∅− USBP∅+ USB2 : Universal Serial Bus Connector The pin assignments are as follows: ASSIGNMENT USBP1− USBP1+ ’ Page: 2-8 Prox-2622 USER S MANUAL...

  • Page 20: Printer Connector

    As to link the Printer to the card, you need a cable to connect both DB25 connector and parallel port. The pin assignments are as follows: ASSIGNMENT ASSIGNMENT AUTFE ERROR INIT SLCTIN BUSY SLCT ’ Page: 2-9 Prox-2622 USER S MANUAL...

  • Page 21: Vga Crt Connector

    Chapter 2 Hardware Configuration 2-9. VGA CRT CONNECTOR VGA : VGA CRT Connector The pin assignments are as follows: ASSIGNMENT GREEN BLUE HSYNC VSYNC ’ Page: 2-10 Prox-2622 USER S MANUAL...

  • Page 22: Com Port Connector

    Chapter 2 Hardware Configuration 2-10. COM PORT CONNECTOR You will find two COM port in our Prox-2622 board. COM1 is fixed for RS-232, while the COM2 is selectable for RS-232/422 and RS-485 by jumper selection. COM1 : COM1 Connector, DB9 male connector...

  • Page 23: Rs232/422/485 (Com2) Selection

    The jumper settings are as follows: COM 2 Jumper Settings Jumper Function (pins closed) Illustration Open RS-232 1-2, 5-6, 7-8, 9-10, RS-422 11-12,13-14,15-16, 17-18,19-20 1-3, 4-6, 7-8, 9-10, RS-485 11-12,13-14,15-16, 17-18,19-20 *** Manufactory default --- RS-232. ’ Page: 2-12 Prox-2622 USER S MANUAL...

  • Page 24: Hard Disk Drive Led Indicator

    2-13. POWER LED INDICATOR PWR : Power Led Indicator The pin assignment is as follows: ASSIGNMENT 2-14. RESET BUTTON RST : Reset Button The pin assignments is as follows : ASSIGNMENT RESET GROUND ’ Page: 2-13 Prox-2622 USER S MANUAL...

  • Page 25: Green Button

    2-16. CPU FAN CONNECTOR CPUFAN : CPU Fan connector The pin assignment is as follows: ASSIGNMENT CPUFAN +12V 2-17. SYSTEM FAN CONNECTOR SYSFAN : System Fan connector The pin assignment is as follows: ASSIGNMENT SYSFAN +12V ’ Page: 2-14 Prox-2622 USER S MANUAL...

  • Page 26: External Speaker Connector

    Keyboard INT Ground 2-20. RESET/NMI/CLEAR WATCHDOG JP4 (1-2) : For Reset JP4 (3-4) : For NMI JP4 (5-6) : For Clear Watchdog The pin assignment is as follows: ASSIGNMENT WDGRST WDGRSTJ WDGNMI IOCHKJ CLRWDG ’ Page: 2-15 Prox-2622 USER S MANUAL...

  • Page 27: Hard Disk Drive Connector

    IDERST IDEREQ0 IDED7 IDEIOW IDED8 IDED6 IDEIOR IDED9 IDED5 IDERDY IDED10 PULL HI IDED4 IDEACK0 IDED11 IDED3 IRQ14 IDED12 IOCS16 IDED2 IDEA1 IDED13 IDED1 IDEA0 IDED14 IDEA2 IDED0 IDECS1P IDED15 IDECS3P IDELEDP N.C. ’ Page: 2-16 Prox-2622 USER S MANUAL...

  • Page 28: Floppy Disk Drive Connector

    Chapter 2 Hardware Configuration 2-22. FLOPPY DISK DRIVE CONNECTOR FDD1 : Floppy Disk Drive Connector The pin assignments is as follows: ASSIGNMENT ASSIGNMENT INDEX MTR0 DRV1 DRV0 MTR1 STEP WDATA WGATE TRK0 WRPRT RDATA DSKCHG ’ Page: 2-17 Prox-2622 USER S MANUAL...

  • Page 29: Solid State Disk Socket

    Chapter 2 Hardware Configuration 2-23. SOLID-STATE DISK SOCKET SSD : 32pin Disk-on-chip Socket The pin assignment is as follows: ASSIGNMENT ASSIGNMENT SA12 SA10 SA11 ’ Page: 2-18 Prox-2622 USER S MANUAL...

  • Page 30: Ssd Memory Mapping Selection

    ROM SSD can be install as one of user’s hard disk drive. The SSD Memory Mapping selections are as follows: JUMPER SETTINGS SSD Memory Map JUMPER (pins closed) ILLUSTRATION D0000h-D1FFFh D4000h-D5FFFh D8000h-D9FFFh DC000h-DDFFFh E0000h-E1FFFh *** Manufactory default --- D0000h-D5FFFh ’ Page: 2-19 Prox-2622 USER S MANUAL...

  • Page 31: Memory Installation

    Chapter 2 Hardware Configuration 2-25. MEMORY INSTALLATION The Prox-2622 can support 2 SDRAM banks. DRAM BANK CONFIGURATION DIMM 1 DIMM 2 TOTAL MEMORY 128M 128M 192M 128M 128M 128M 192M 128M 128M 256M 128M 256M 384M 256M 256M 256M 128M...

  • Page 32: Chapter 3 Software Utilities

    CHAPTER SOFTWARE UTILITIES This chapter comprises the detailed information of VGA driver, LAN driver and flash BIOS update. It also describes on how to install the watchdog timer. Section includes: VGA Driver Utilities Flash BIOS Update LAN Driver Utilities Watchdog Timer Configuration Page: 3-1...

  • Page 33: Introduction

    Chapter 3 Software Configuration 3-1. INTRODUCTION Enclosed with our Prox-2622 package is our driver utility, which may comes in a form of a CD ROM disc or floppy diskettes. For CD ROM disc user, you will only need some of the files contained in the CD ROM disc, please...
  • Page 34 (4). In the CHANGE DISPLAY window, click on Have Disk. Follow the instructions appearing on the screen until you complete the whole installation. (5). Once installation is completed, the system must be shut down and restarted for the new drivers to take effect. Prox-2622 USER ′ S MANUAL Page:3-3...

  • Page 35: Flash Bios Update

    Chapter 3 Software Configuration 3-3. FLASH BIOS UPDATE 3-3-1. System BIOS Update: Users of Prox-2622 can use the program “Awdflash.exe” contained in the Utility Disk for system BIOS and VGA BIOS update. 3-3-2. To update VGA BIOS: In order to update VGA BIOS, you need two files. One is the “Awdflash.exe”...
  • Page 36 File Name to Program: C04xxxxx.bin Checksum: XXXXX Reset System or Power off to accomplish update process! F1: Reset F10: Exit Please reset or power off the system, and then the Flash BIOS is fully implemented. Prox-2622 USER ′ S MANUAL Page:3-5...

  • Page 37: Lan Driver Utility

    Chapter 3 Software Configuration 3-4. LAN DRIVER UTILITY 3-4-1. Introduction Prox-2622 Compact PCI is enhanced with LAN function can support various network adapters. Installation programs for LAN drivers are listed as follows: 1. Win 95/98 program 2. Win NT program 3.

  • Page 38: Watchdog Timer Configuration

    I/O port 441H , the system will run the command to stop the Watchdog function. In Prox-2622 watchdog function, you must write your program so when it writes I/O port address 443 for enable watchdog and write I/O port address 441 for disable watchdog.
  • Page 39 Chapter 3 Software Configuration Prox-2622 USER ′ S MANUAL Page:3-8...

  • Page 40: Chapter 4 Green Pc Function

    CHAPTER GREEN PC FUNCTION This chapter gives you the concise information for Green PC Function. Section includes: Power Saving Block Diagram CPU Doze Mode System STANDBY Mode System SUSPEND Mode Page: 4-1...

  • Page 41: Power Saving Block Diagram

    4. Level 1 cache are disabled. 5. VGA monitor displays blank screen. 6. Fixed disk driver motor will be spin off. 7. Any activity occurs, system will exit from Standby mode to On mode. Prox-2622 USER ′ S MANUAL Page: 4-2...

  • Page 42: System Suspend Mode

    6. Fixed disk driver motor will be spin off. 7. Monitor activity according to the setting of Advanced Setup. 8. When system in Suspend mode, only Keyboard / Mouse / Alarm resume can wakeup system. Prox-2622 USER ′ S MANUAL Page: 4-3...
  • Page 43 Chapter 4 Green PC Function Prox-2622 USER ′ S MANUAL Page: 4-4...

  • Page 44: Chapter 5 Award Bios Setup

    CHAPTER AWARD BIOS SETUP This chapter states out how to set up the Award BIOS. Section includes: Introduction Entering Setup The Standard CMOS Setup The BIOS Features Setup The Chipset Features Setup Power Management Setup PNP/PCI Configuration Load BIOS defaults Integrated Peripherals IDE HDD Auto Detection Save Setup and Exit Setup...

  • Page 45: Introduction

    5-1. INTRODUCTION This chapter will show you the function of the BIOS in managing the features of your system. The Prox-2622 Socket 370 Compact PCI Card is equipped with the BIOS for system chipset from Award Software Inc. This page briefly explains the function of the BIOS in managing the special features of your system.

  • Page 46: Entering Setup

    As you highlight each item, a brief description of that item's function appears in the lower window. If you have a colour monitor you can use the Shift F2 keys to scroll through the various colour combination available. Prox-2622 USER ′ S MANUAL Page: 5-3...

  • Page 47: The Standard Cmos Setup Menu

    < Hour >, < Minute >, and < Second >. Use 24 hour clock format, i.e., for PM numbers, add 12 to the hour. For examples, 4: 30 P.M. You should enter the time as 16 : 30 : 00. Prox-2622 USER ′ S MANUAL Page: 5-4...
  • Page 48 (# of heads) X (# of cylinders) X (# of sets) X ( 512bytes/sects) CYLS: This is the number of cylinders found in the specified drive type. HEAD: This is the number of heads found in the specified drive type. Prox-2622 USER ′ S MANUAL Page: 5-5...
  • Page 49 For EGA, VGA, SEGA, SVGA or PGA monitor adapters. CGA 40 Color Graphics Adapter, power up in 40 column mode. CGA 80 Color Graphics Adapter, power up in 80 column mode. MONO Monochrome adapter, includes high resolution monochrome adapters. Prox-2622 USER ′ S MANUAL Page: 5-6...
  • Page 50 The BIOS is the most frequent user of this RAM area since this is where it shadows RAM. Prox-2622 USER ′ S MANUAL Page: 5-7...
  • Page 51 1024 65535 1023 1024 65535 1023 1024 65535 1023 1024 65535 1023 1024 65535 1023 65535 1023 65535 1024 65535 1023 1024 65535 1023 65535 65535 65335 AUTO Award Hard Disk Type Table Prox-2622 USER ′ S MANUAL Page: 5-8...

  • Page 52: The Bios Features Setup Menu

    A brief introduction of each setting in the BIOS FEATURES SETUP program is given as follows: VIRUS WARNING: When Enabled, the BIOS will monitor the boot sector and partition table of the hard disk drive for any attempt for modification. Prox-2622 USER ′ S MANUAL Page: 5-9...
  • Page 53 Today, while keyboards still provide this support, it is more common and much faster for the system chipset to provide support for gate A20. The available options are Normal and Fast. Prox-2622 USER ′ S MANUAL Page: 5-10...
  • Page 54 It determines whether the MPEG ISA/VESA VGA Card can work with PCI/VGA or not. OS SELECT FOR DRAM >64MB: This item allows you to access the memory that over 64MB in OS/2. You may choose OS2 or Non-OS2. Prox-2622 USER ′ S MANUAL Page: 5-11...
  • Page 55 Video Shadow will increase the video speed. C8000-CBFFF SHADOW ~ DC000-DFFFF SHADOW: These categories determine whether option ROMs will be copied to RAM. An example of such option ROM would be support of on-board SCSI. Prox-2622 USER ′ S MANUAL Page: 5-12...

  • Page 56: Chipset Features Setup

    Auto Configuration selects pre-determined optimal values of chipset parameters. When disabled, chipset parameters revert to setup information stored in CMOS. Many fields in this screen are not available when Auto Configuration is Enabled. Prox-2622 USER ′ S MANUAL Page: 5-13...
  • Page 57 SYSTEM BIOS CACHEABLE : Select Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result. Prox-2622 USER ′ S MANUAL Page: 5-14...
  • Page 58 Otherwise, the arbiter only accepts another PCI master access to local DRAM. DELAYED TRANSACTION: The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. Prox-2622 USER ′ S MANUAL Page: 5-15...

  • Page 59: Power Management Setup

    Having made all the settings above, press < Esc > to return to the main menu. ACPI FUNCTION: User are allowed to enable or disable the Advanced Configuration and Power Management (ACPI). Prox-2622 USER ′ S MANUAL Page: 5-16...
  • Page 60 STANDBY MODE: When enabled and after the set time of system inactivity, the fixed disk drive and the video would be shut off while all other devices still operate at full speed. Prox-2622 USER ′ S MANUAL Page: 5-17...
  • Page 61 This item allows you to awaken the system from a soft off state through an incoming call on the modem. IRQ 8 BREAK SUSPEND: You may enable and disable monitoring of IRQ8 so it doesn’t awaken the system from Suspend mode. Prox-2622 USER ′ S MANUAL Page: 5-18...

  • Page 62: Pnp/Pci Configuration

    You can manually configure the PnP/PCI Device‘s IRQ by highlighting the selected item and press the <F1> key, all options for the desired selection will be displayed for choice. User may select the desired options. Prox-2622 USER ′ S MANUAL Page: 5-19...
  • Page 63 PC AT bus specification, requiring a specific interrupt such as IRQ4 for serial port 1. PCI/ISA PnP Devices complaint with the Plug and Play standard, whether designed for PCI or ISA bus architecture. Prox-2622 USER ′ S MANUAL Page: 5-20...

  • Page 64: Load Bios Defaults

    Load BIOS Default ( Y / N ) ? Y To use the BIOS defaults, change the prompt to "Y" and press < Enter >, the CMOS is load automatically when you power on the Prox-2622. 5-9. LOAD SETUP DEFAULTS AUTO CONFIGURATION WITH SETUP DEFAULTS This Main Menu item uses the default SETUP values.

  • Page 65: Integrated Peripherals

    This item let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. Prox-2622 USER ′ S MANUAL Page: 5-22...
  • Page 66 Select a logical LPT port address and corresponding interrupt for the physical parallel port. PARALLEL PORT MODE: Select an operating mode for the onboard parallel port. Select Compatible or Extended unless you are certain both your hardware and software support EPP or ECP mode. Prox-2622 USER ′ S MANUAL Page: 5-23...

  • Page 67: Password Setting

    BIOS Features Setup Menu and its Security option. If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup. Prox-2622 USER ′ S MANUAL Page: 5-24...
  • Page 68 〝PASSWORD SETTING〞a message will appear at the center. PASSWORD DISABELD!!! Press any key to continue... Press < Enter > and the password will be disabled. Once the password is disabled, you can enter Setup freely. Prox-2622 USER ′ S MANUAL Page: 5-25...

  • Page 69: Ide Hdd Auto Detection

    3. Enter Y or N to confirm the acceptance of the parameter reported by BIOS, then press the <ENTER> key. The process will repeat again form Primary Slave, Secondary Master and Secondary Slave Hard Disks. Prox-2622 USER ′ S MANUAL Page: 5-26...

  • Page 70: Save & Exit Setup

    You may call up the setup program at any time to adjust any of the individual items by pressing the <Del> key during boot up. Prox-2622 USER ′ S MANUAL Page: 5-27...
  • Page 71 Quit Without Saving (Y/N) ? Y LOAD BIOS DE SAVING LOAD SETUP DEFAULTS ↑↓→← Esc : Quit :SELECT ITEM F10 : Save & Exit Setup (Shift)F2 : Change Color Abandon all Datas & Exit SETUP Prox-2622 USER ′ S MANUAL Page: 5-28...
  • Page 72 COMPACT PCI APPENDIX CONNECTOR This appendix indicates the pin assignments of the compact PCI connector found in CPU Board Section includes: J1 Connector Pin Assignment J2 Connector Pin Assignment J3 Connector Pin Assignment Page: A-1...

  • Page 73: Compact Pci Connector

    Appendix A EXPANSION BUS COMPACT PCI CONNECTOR There are three Compact PCI connectors found in CPU board (named J1, J2, J3). The figure below shows how to connect the Prox-2622 CPU Board to the backplane. Backplane CPU Board Prox-2622 USER ′ S MANUAL...

  • Page 74: J1 Connector Pin Assignment

    12-14 SFRAME# SIRDY# STRDY# SDEVSEL# SSTOP# SPLOCK# SMBCLK SMBDATA SPERR# SSERR# SPAR SC/BE[1]# SAD[15] SAD[14] SAD[13] SAD[12] SAD[11] SAD[10]# SAD[9] SAD[8] SC/BE[0]# SAD[7] SAD[6] SAD[5] SAD[4] SAD(3) SAD[2] SAD[1] SAD[0] SACK64# REQ64# HSENUM# Prox-2622 USER ′ S MANUAL Page: A-3...

  • Page 75: J2 Connector Pin Assignment

    The pin assignments is as follows: SPCLK1 SPREQ-1 SPGNT-1 SPREQ-2 SPCLK2 SPCLK3 SPGNT-2 SPREQ-3 SPCLK4 SPGNT-3 SPREQ-3 SPGNT-4 (15) FAL- REQ-5 GNT-5 DEG- (15) PRST- REQ-6 GNT-6 (3)(16) (3)(16) (3)(16) (3)(16) SPCLK5 (3)(16) (3)(16) SPCLK6 Prox-2622 USER ′ S MANUAL Page: A-4...

  • Page 76: J3 Connector Pin Assignment

    IDE1ACK IDE1D0 IDE1D4 IDE1D8 IDE1D12 IDE1DRQ IDE2SA0 IDE2SA1 IDE2SA2 IDE2RDY IDE2CS3 IDE2IOW IDE2IOR IDE2IRQ IDE2D3 IDE2D7 IDE2D11 IDE2D15 IDE2CS1 IDE2D2 IDE2D6 IDE2D10 IDE2D14 IDE2D1 IDE2D5 IDE2D9 IDE2D13 IDE2ACK IDE2D0 IDE2D4 IDE2D8 IDE2D12 IDE2DRQ Prox-2622 USER ′ S MANUAL Page: A-5...
  • Page 77 Appendix A EXPANSION BUS Prox-2622 USER ′ S MANUAL Page: A-6...
  • Page 78 APPENDIX TECHNICAL SUMMARY This section introduces you the maps concisely. Sections include: Block Diagram Interrupt Map RTC & CMOS RAM Map Timer & DMA Channels Map I / O & Memory Map Page: B-1...

  • Page 79: Appendix B Technical Summary Block Diagram

    A D D R C N T L D A T A D A T A A D D / D A T A A D D R A D D R A D D R Prox-2622 USER ′ S MANUAL Page: B-2...

  • Page 80: Interrupt Map

    System TIMER interrupt from TIMER-0 Keyboard output buffer full Cascade for IRQ 8-15 Serial port 2 Serial port 1 Available Floppy Disk adapter Parallel port 1 RTC clock Available Available Available PS/2 Mouse Math coprocessor IDE1 Available Prox-2622 USER ′ S MANUAL Page: B-3...

  • Page 81: Rtc & Cmos Ram Map

    Extension memory low byte Extension memory high byte Reserved for extension memory low byte Reserved for extension memory high byte Date Century byte Information Flag 34-3F Reserve 40-7f Reserved for Chipset Setting Data Prox-2622 USER ′ S MANUAL Page: B-4...

  • Page 82: Timer & Dma Channels Map

    Timer Channel Assignment System timer interrupt DRAM Refresh request Speaker tone generator DMA Channel Map : DMA Channel Assignment Available Available Floppy Disk adapter Available Cascade for DMA controller 1 Available Available Available Prox-2622 USER ′ S MANUAL Page: B-5...

  • Page 83: I/O & Memory Map

    Parallel port-2 2B0-2DF Graphics adapter controller 2F8-2FF Serial port-2 360-36F Net work ports 378-37F Parallel port-1 3B0-3BF Monochrome & Printer adapter 3C0-3CF EGA adapter 3D0-3DF CGA adapter 3F0-3F7 Floppy disk controller 3F8-3FF Serial port-1 Prox-2622 USER ′ S MANUAL Page: B-6...

  • Page 84: Appendix C Trouble Shooting

    APPENDIX TROUBLE SHOOTING This section outlines the errors that may occur when you operate the system. It also gives you the suggestions on solving the problems. Section includes: Trouble Shooting for Error Messages Trouble Shooting for POST Code Page: C-1...

  • Page 85: Trouble Shooting For Error Messages

    When you can‘t find the boot device, insert a system disk into Drive A and press < Enter >. Make sure both the controller and cables are all in proper positions, also make sure the disk is formatted correct device. Then reboot the system. Prox-2622 USER ′ S MANUAL Page: C-2...
  • Page 86 Memory has been added or removed since the last boot. In EISA mode use Configuration Utility to re-configure the memory configuration. In ISA mode enter Setup and enter the new memory size in the memory fields. Prox-2622 USER ′ S MANUAL Page: C-3...

  • Page 87: Trouble Shooting For Post Codes

    03 : Initialize all the standard devices with default values Standard devices includes : DMA controller (8237). Programmable Interrupt Controller (8259). Programmable Interval Timer (8254). RTC chip. 05 : 1.Keyboard Controller Self-Test. 2.Enable Keyboard Interface. Prox-2622 USER ′ S MANUAL Page: C-4...
  • Page 88 0D : 1. Program some of the Chipset‘s value according to Setup. (Early Setup Value Program). 2. Measure CPU speed for display & decide the system clock speed. 3. Video initialization including Monochrome ,CGA, EGA/VGA. If no display device found, the speaker will beep. Prox-2622 USER ′ S MANUAL Page: C-5...
  • Page 89 2.Program all onboard super I/O chips (if any) including COM ports, LPT ports, FDD port..according to setup value. 3C : Set flag to allow users to enter CMOS Setup Utility. 3D : 1 Initialize Keyboard. 2 Install PS2 mouse. Prox-2622 USER ′ S MANUAL Page: C-6...
  • Page 90 -assign I/O, Memory, IRQ & DMA TO PnP ISA devices. -initialize all PnP ISA ROMs. 4. Program shadows RAM according to Setup settings. 5. Program parity according to Setup setting. 6. Power Management Initialization. -Enable/Disable global PM. -APM interface initialization. Prox-2622 USER ′ S MANUAL Page: C-7...
  • Page 91 2. Clear memory that have been used. 3. Boot system via INT 19H. FF : System Booting. this means that the BIOS already pass the control right to the operating system. PRINTED IN TAIWAN Prox-2622 USER ′ S MANUAL Page: C-8...
