Instantel Micromate Sound Level Microphone Instruction Sheet

Instruction Sheet
Sound Level Microphone
for the Monitoring Unit

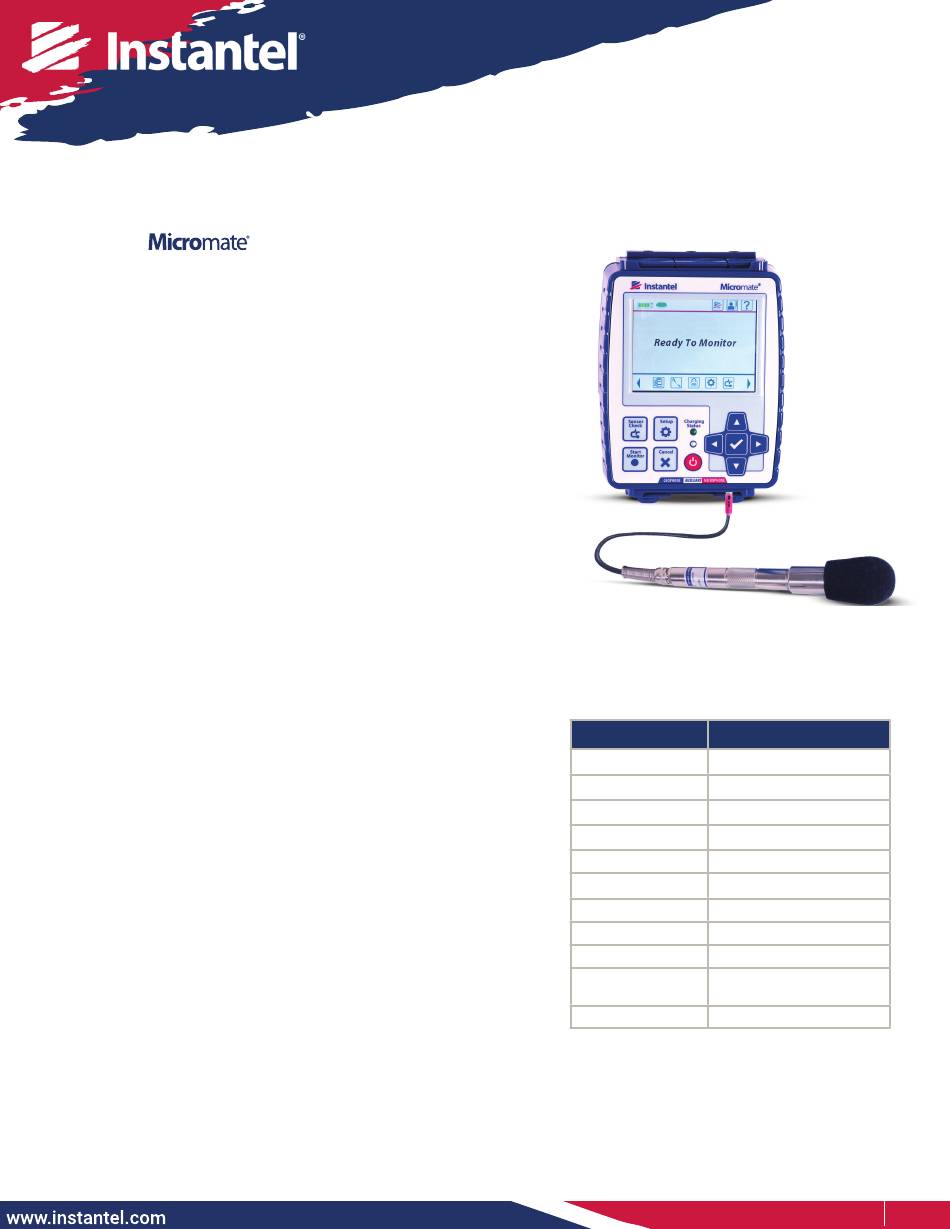

The Sound Level Microphone for the Micromate monitoring
unit, automates noise monitoring from building activities,
construction, traffic, and mining operations. The Micromate
monitoring unit combines noise and vibration monitoring in
the same unit, making it a cost effective and flexible device for
these applications.
The Sound Level Microphone meets the requirements for IEC
61672 Class 1, including A and C weighted specifications and
has a measuring range from 30 dB to 140 dB with a Fast or Slow
response.
There are four record modes to choose from:
• Manual trigger
• Waveform (records up to 90 seconds, once triggered)
• Histogram (2 seconds to 30 minute intervals)
• Histogram-Combo (records both Histogram and Waveform
simultaneously)

Range of Applications

• Building Activities
• Traffic

Tools and Materials Required

Choose one of:
• Micromate ISEE Base Unit. . . . . . . . . . . . .(P/N: 721A2501)
• Micromate DIN Base Unit . . . . . . . . . . . .(P/N: 721A2601)
• Micromate Swedish Blasting Base Unit . . .(P/N: 721A3601)
• Micromate Swedish Pile Driving Base Unit. .(P/N: 721A3801)
• Sound Level Microphone . . . . . . . . . . . . .(P/N: 721A2301)
(stand and windscreen included)
• Extension cables, as required
10 m (33 ft). . . . . . . . . . . . . . . . . . . . (P/N: 721A0803)
30 m (100 ft) . . . . . . . . . . . . . . . . . . .(P/N: 721A0801)
75 m (250 ft) . . . . . . . . . . . . . . . . . . .(P/N: 721A0802)
Custom Extension Cable Kit . . . . . . (P/N: 721A3201)
• THOR software . . . . . . . . . . . . . . . . . . (free version)
• THOR Advanced software . . . . . . . . . . . . . (P/N: 72300201)
• A choice of three optional field calibration devices:
- Delta OHM HD9101 Class 1
- Brüel & Kjaer Sound Calibrator Type 4231
- Rion NC-74 Sound Calibrator
Note: Micromate units with serial numbers below 8000 require a factory update to support the Sound Level Microphone.
• Construction • Quarries
• Mining

Specifications

Field
Response Standard IEC 61672 Class 1
Frequency Weighting A-Weight or C-Weight
Response Fast (125 ms) or Slow (1 s)
Frequency Range
Amplitude Range 30 dB to 140 dB max 160 dB
Trigger Levels
Sample Rates 1,024 - 4,096 S/s
Resolution 0.05 dB (display limit 0.1dB)
Cable Length
Maximum Cable
Length
Temperature Range -10° to 50°C (14° to 122°F)
Values
10 Hz - 20 kHz
33 dB to 140 dB
2 m (6.5 ft)
75 m (250 ft)
