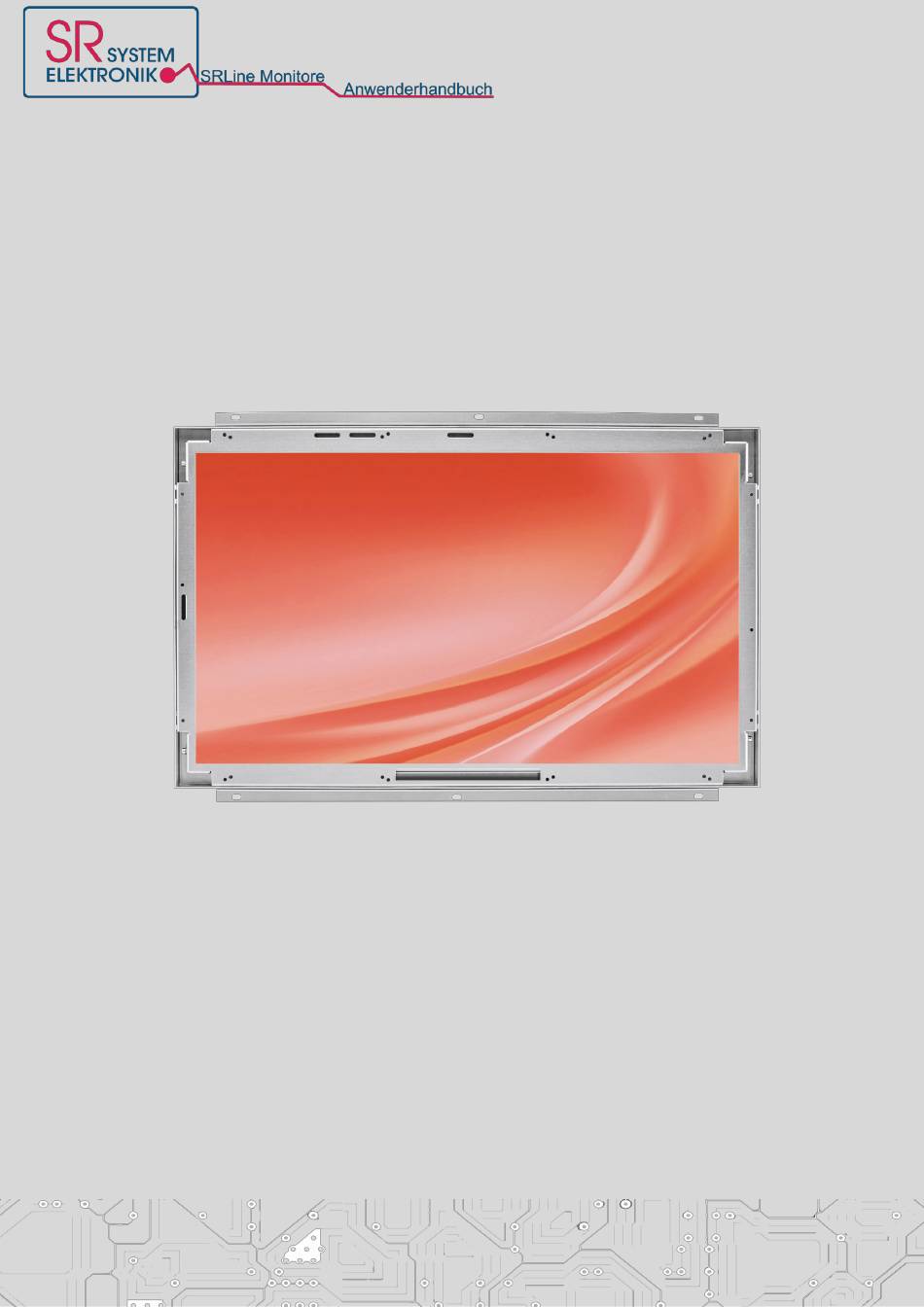

SR-Line
Industry monitors
USER MANUAL
Booth: 22.12.2022
Reproductions of any kind, even as excerpts, require the written permission of SR System Elektronik GmbH.
ATTENTION:
This document will not be withdrawn when a new edition is published, all previous
editions will lose their validity.
Copyright © 2022 SRLine
SR
SYSTEM-ELEKTRONIK GmbH
|
Eschachstr. 23
|
D-78078 Niedereschach
|
phone +49 77289268-0
|
info@sr-line.com
Seite | 1
Advertisement
Table of Contents
Summary of Contents for SRLine R-FLAT
- Page 1 Reproductions of any kind, even as excerpts, require the written permission of SR System Elektronik GmbH. ATTENTION: This document will not be withdrawn when a new edition is published, all previous editions will lose their validity. Copyright © 2022 SRLine SYSTEM-ELEKTRONIK GmbH Eschachstr. 23 D-78078 Niedereschach phone +49 77289268-0 info@sr-line.com...
-
Page 2: Table Of Contents
Table of contents Content Table of contents ............................. 2 Electrostatic sensitive modulesl ......................4 General ..............................5 Introduction ............................. 6 Definition, abbreviations ......................... 7 Definition ..............................7 Abbreviations ............................7 Safety instructions ........................... 8 Putting the TFT monitor into operation ....................9 Notes on compliance with the EMC Directive (CE mark) .............. - Page 3 HDMI D24P ............................24 AC supply ............................... 25 DC- Plug 12 / 24 V ..........................25 Grounding bolt ............................25 IR Remote Control (Option) ........................26 Modified Output Reason for change Chapter stand / Page 22.12.2022 Creation of this document SYSTEM-ELEKTRONIK GmbH Eschachstr.
-
Page 4: Electrostatic Sensitive Modulesl
Electrostatic sensitive modulesl Electronic components can be damaged or destroyed by electrostatic discharges. This does not necessarily lead to a failure of the module, it can also result in malfunctions! The following instructions must therefore be observed: • Before working on the open unit, any charge on the body must be discharged by touching the grounded housing parts. -
Page 5: General
General The operating manual is intended to assist you with the assembly, installation and operation of the flat panel monitor. Please read through the manual completely once, as information relating to several chapters is only reproduced once. Keep the manual in a safe place. Follow all instructions and warnings marked on the product itself. -
Page 6: Introduction
Introduction This LCD display functions as a video-compatible color display. The monitor is used to drive digital TFT displays with resolutions from 640 x 480 up to 1920 x 1080 dots directly with the standard video signals of PCs and workstations. A special graphics card is not required. -
Page 7: Definition, Abbreviations
Definition, abbreviations Definition Abbreviations On Screen Display Number of oscillation processes in millions of oscillations per second Number of oscillation processes in thousands of oscillations per second Number of oscillation processes in oscillations per second H-Sync Indicates the start of transmission of a new line. Serves for synchronization between an image source and a receiver. -
Page 8: Safety Instructions
Safety instructions The TFT monitor is designed for use in industrial and commercial areas. The person who installs the device is responsible for safety, compliance with occupational safety and accident prevention regulations, and all other legal requirements. Commissioning, setup and repair work may therefore only be carried out by professionally qualified personnel. -
Page 9: Putting The Tft Monitor Into Operation
Putting the TFT monitor into operation Unpack device The device is delivered in a sturdy cardboard box. The device is fixed in place and protected from damage during transport by the tensioned Swing foil. Keep all parts for the time being in order to have suitable transport packaging in case of a necessary return. -
Page 10: Notes On Compliance With The Emc Directive (Ce Mark)
Notes on compliance with the EMC Directive (CE mark) Within the EU, laws require compliance with uniform limit values for interference radiation and interference immunity. The TFT monitor is built in such a way that these limits are complied with. It is therefore provided with the CE mark and a declaration of conformity. Outside the EU, the respective national regulations must be observed. -
Page 11: Model Variants
R-FLAT 15/8-B (Bedienelemente vorne) Bedienelemente vorne (seitlich bei M-FLAT) 24V DC (12 V p) R-FLAT 15/8-ALP (Edelstahl, Touch kap. USB, 24 V DC) 230V AC(12 V extern) (abweichend von Standard) R-FLAT 15/10024 (Kundenvariante, Kundennr.=10024) Video BAS / FBAS BNC (Cinch,S-VideoI) DisplayPort (HDMI) (Achtung: früher DVI) -
Page 12: Auto Signal Detection
Auto signal detection This function automatically detects the connected video input signal . The monitor has a VGA input/DVI and optional display port or HDMI input. The controller starts with VGA, then DVI, HDMI, DP. If the signals become active later, the portscan be within the search sequence. -
Page 13: Service Osd
Service OSD All settings are made via theOnScreenDisplay (OSD). Functions and keys Hotkeys OSD Status (external LED`s) SYSTEM-ELEKTRONIK GmbH Eschachstr. 23 D-78078 Niedereschach phone +49 77289268-0 info@sr-line.com Seite | 13... -
Page 14: Osd Menu Overview
OSD Menu Overview To activate the OSD, press the "Menu" key Menu „Picture“ Dddd OSD Menu Description Backlight Setting the BLU (backlight) level (0~100) Brightness Setting the LCD Brightness (0~100) the LCD Brightness (0~100) Contrast Adjust the image contrast (0~100) Image sharpness Setting the image sharpness (0 ~ 4) Menu „Display“... -
Page 15: Menu „Color
Menu „Color“ OSD Menu Description Gamma Select the image gamma value (Off / 1.8 / 2.0 / 2.2 / 2.4) Temperatur Select color temperature (9300 / 7500 / 6500 / 5800 / sRGB / User) Color effect Select the color mode (Standard / Game / Movie / Photo / Vivid / User). Demo The user can test the values of the color menu in demo mode. -
Page 16: Menu „Advance
Menu „Advance“ OSD Menu Description Aspect ratio Set display ratio (full screen / 16:9 / 4:3 / 5:4 / 1:1 / User) Over Scan Display Over Scan Function (only HDMI Video Input) DDCI DDCI function enable (On / Off) Ultra Vivid Ultra Vivid Level (Off / Low / Middle / High) Menu „Audio“... -
Page 17: Hotkey Function Definition
Hotkey Function Definition Description Down Key Check input video information Up Key Select video input (Auto / DP / HDMI / RGB / DVI) < < Input Video Select > < Input Video Select > SYSTEM-ELEKTRONIK GmbH Eschachstr. 23 D-78078 Niedereschach phone +49 77289268-0 info@sr-line.com Seite | 17... -
Page 18: Operation And Repairs
Operation and repairs • Displaying a still image for a longer period of time can lead to image sticking problems (see our notes on the support area on the Internet at FAQ). • Before opening the device, switch it off and disconnect it from the power supply. •... -
Page 19: Cleanining
Cleanining • Disconnect the device from the supply voltage before cleaning. Normally, cleaning with a dry cloth is sufficient. If the system unit is more heavily soiled, it can be cleaned with a damp cloth and a mild cleaning agent (CRTs only). No liquid should be allowed to enter the interior of the unit (open unit). •... - Page 20 Correct disposal of this product. (Electrical waste) Europe only. To be used in the countries of the European Union and other European countries with a separate collection system. The marking on the product or on the accompanying literature indicates that it must not be disposed of with other household waste at the end of its working life.
-
Page 21: Emv And Equipment Safety
EMV and equipment safety Compliance with standards and guidelines Certification that the industrial monitors/computers have been designed, manufactured and tested in accordance with the following guidelines established by the Council of the European Community: 2014/35/EU und 2014/30/EU Applied standards: • DIN EN 62368-1:2020 + A11:2020 Applied standards: •... -
Page 22: Appendix
Appendix Pin assignment VGA 15-pol. HD-Sub Mini DIN Signal Green Blue DDC Data / SDA H-SYNC V-SYNC DDC Clock SYSTEM-ELEKTRONIK GmbH Eschachstr. 23 D-78078 Niedereschach phone +49 77289268-0 info@sr-line.com Seite | 22... -
Page 23: Dvi D24P
DVI D24P DVI-D Dual Link SYSTEM-ELEKTRONIK GmbH Eschachstr. 23 D-78078 Niedereschach phone +49 77289268-0 info@sr-line.com Seite | 23... -
Page 24: Hdmi D24P
HDMI D24P max. 10 m line length DisplayPort DP max. 3 m line length SYSTEM-ELEKTRONIK GmbH Eschachstr. 23 D-78078 Niedereschach phone +49 77289268-0 info@sr-line.com Seite | 24... -
Page 25: Ac Supply
AC supply 100 – 240 V~ AC IEC Cold appliance socket DC- Plug 12 / 24 V Phoenix MSTB 2,5 / 2-STF-5,08 Grounding bolt Low-voltage ground, functional ground. For proper function especially in connection with a capacitive touch. SYSTEM-ELEKTRONIK GmbH Eschachstr. -
Page 26: Ir Remote Control (Option)
IR Remote Control (Option) SYSTEM-ELEKTRONIK GmbH Eschachstr. 23 D-78078 Niedereschach phone +49 77289268-0 info@sr-line.com Seite | 26...
