Summary of Contents for Joled glancy EPS269Q01DA

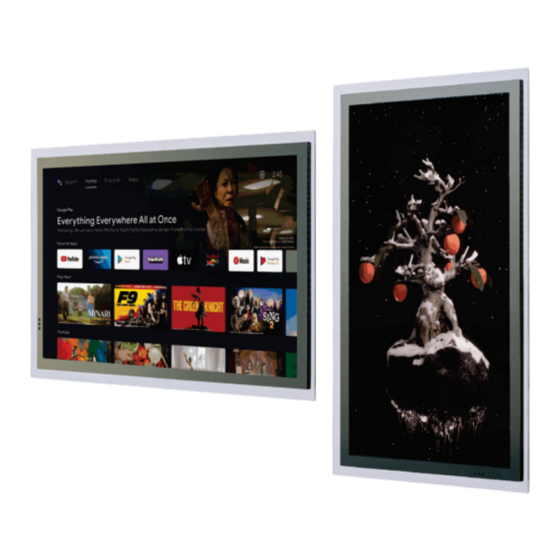

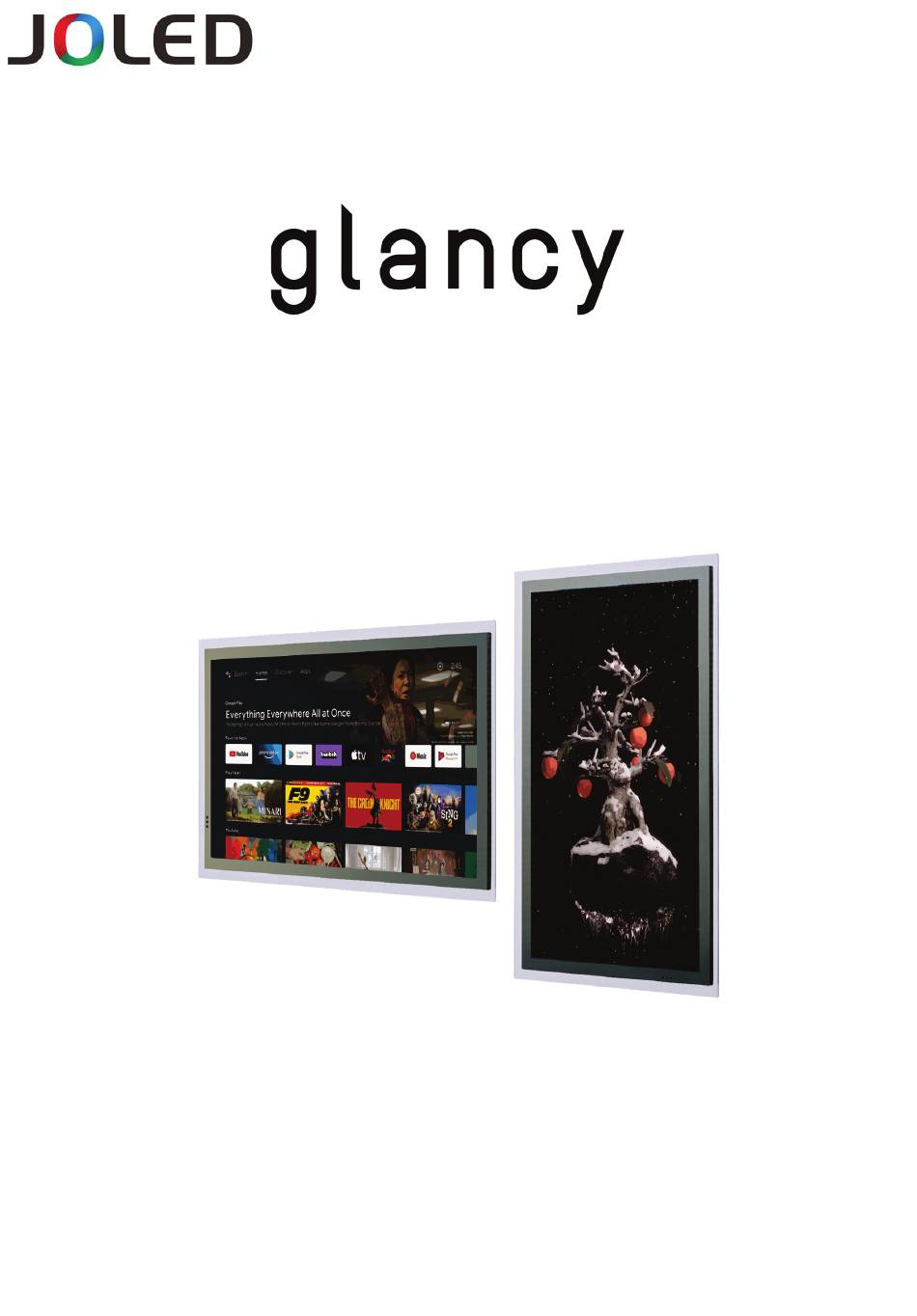

- Page 1 EPS269Q01DA Monitor operation manual Important • Before use, be sure to read this instruction manual and usage instructions carefully and use it correctly. • Please see https://glancy.jp for the latest information on various manuals.
-
Page 2: Table Of Contents
Table of contents 1. Important Note..............2 1.1 Safety precautions and maintenance........2 1.2 Warning indication..............5 1.3 Disposal of products and packing materials.......5 2. Operation of monitor............6 2.1 Included items...............6 2.2 Remote controller..............7 2.3 Assembly, connection and other connections......8 2.4 Operation of the monitor............13 3. -
Page 3: Important Note
The product may fall, causing serious This operation manual is for everyone personal injury or death. To prevent who uses JOLED monitors. Please injury, this product must be securely read this user manual carefully before attached to the floor/wall in accordance using the monitor. - Page 4 Caution during operation • Do not tilt the monitor down beyond • Do not directly expose to direct sunlight -10 degrees. This may cause or very strong light. Also, do not place damage, such as the panel peeling near the heat source. If left in such an off the bezel.
- Page 5 Blue light Missing dots • JOLED strives to provide the highest • This product uses an OLED panel quality products. We use the most with less blue light. advanced manufacturing processes in the industry and practice strict Maintenance quality control, but there may be dots(missing dots) that do not light •...
-
Page 6: Warning Indication
Service support 1.3 Disposal of products and • Do not open the case cover except in packaging materials the service personnel. • If repair or adjustment is required, please contact the service center Disposal of electrical and electronic (please refer to the service center equipment (WEEE）... -
Page 7: Operation Of Monitor
2. Operation of monitor 2.1 Included items ❶Monitor ❷Tools for wall mount Rotating bracket with cable cover Wall mount bracket Anchor C Anchor B Screw C Screw B each 4 pieces each 4 pieces spare) spare) (1 piece is a (1 piece is a Screw A 4 pieces... -
Page 8: Remote Controller
2.2 Remote controller Please insert the attached battery paying attention to +/-. Function ① Power ① ② ② Input Select ③ ③ ④ ⑥ DOWN ⑤ ⑦ ⑤ LEFT ④ ⑥ RIGHT ⑧ ⑪ ⑨ ⑦ ENTER ⑩ ⑫ ⑧ BACK ⑬... -
Page 9: Assembly, Connection And Other Connections
Assembly, connection and other connections Take the included items out of the box. １ Waring It contains heavy objects, so be careful not to drop it or hit it when removing it. (Front)LED and Sensor light receiving part. Luminance sensor Remote control receiver Power LED... - Page 10 Hang the monitor on the wall. Please prepare a screwdriver and a drill. ①Attach the rotating bracket to the monitor Remove the white cable cover once, pass Align the arrow mark on the rotating bracket the DC extension cable through the hole of with the ^ mark on the VESA mount on the the rotating bracket, and attach the cable main unit, and attach it with the attached...
- Page 11 ②Mount the monitor on the wall *If you are worried about the holes in the wall, please refer to ”Kabebijin” of "Enjoy doing it Yourself" on glancy.jp, and https://www.youtube.com/watch?v=tOkI1JV5bPs. Please purchase "Kabebijin” and download the guide sheet to use it. Only for gypsum board. (1)Draw marks for anchors or screws When using only a standard DC cable (1.5 m in length), set the upper side height of the wall mount bracket to 1.3 m or less.
- Page 12 (3)Attach the wall mount bracket to the wall (4)Rotating the bracket Attach the wall mount bracket with screw B Rotate the rotating bracket 90 ° or screw C suitable with the anchor. counterclockwise so that it faces vertically, and hold the housing part. Warning Do not apply force to the screen part.
- Page 13 (6)Lock the bracket (7)Return to horizontal screen Push the arm part to rotate the After making various settings in lock bracket and hook it on the pin landscape mode, you can enjoy it to lock the hook of the wall mount by rotating it to the desired screen bracket (upper figure is the back orientation.
-
Page 14: Operation Of The Monitor
２ On Screen Display What is an on-screen display? The on-screen display (OSD) is a feature of JOLED monitors. Users can adjust the screen behavior and select monitor function directly from the on- screen display window. The interface of the On Screen Display is shown below. - Page 15 Setup1/2 Luminance1/2 OSD menu Contents OSD menu Contents OSD Timeout time selection (5 - 100) Living (changeable): Screen rotation Brightness=80, Black Level=0 Rotation Scene (Auto/0°/90°/180°/270°) Select NightRoom (changeable): Language selection Brightness=50, Black Level=0 (English, Español, Français, Language Deutsche, Português, Black Level Black level(-50 - ＋50) Русский, 简体中文,繁體中文, 日本語) Brightness...
- Page 16 Power LED mode table In signal In signal In changing mode AC off No signal DC off inputting search input Green Green Green Green Green Green Green DDC/CI command table Code name Descripition Code This VCP code is used to determine if a display control has been 02h New Control Value used, this control allows for the synchronization of display hardware/firmware and asoftware utility.
-
Page 17: Specification
3. Specification 3.1 Monitor specification Display Display Panel OLED Screen size 26.9" Aspect ratio 16:9 Pixel pitch 0.15525 (H) mm x 0.15525 (V) mm Contrast (typ.) 1,000,000:1 Resolution 3840 x 2160 @ 60 Hz Response time (typ.) 0.1ms (tr to tf) Viewing angle 178°... - Page 18 Power consumption Normal operation 52.7 W (typ.) 0.3W LED indicator ON: Green, SOS: Orange blinking ACDC adaptor 100-240V AC, 50-60Hz Dimension Monitor (W)674 x (H)413 x (D)25.1 mm Monitor with wall mount (W)674 x (H)413 x (D)39.1 mm Package (W)754 x (H)502 x (D)134 mm Weight Monitor 3.8 kg...
-
Page 19: Supported Resolution, Color Range And Color Depth
3.2 Supported resolution Maximum resolution 3840 x 2160 @ 60 Hz Recommended resolution 3840 x 2160 @ 60 Hz HDMI Freq.(1) Freq.(2) Color Depth (HDMI) YCbCr YCbCr YCbCr Resolution Aspect V Freq. H Freq. V Freq. H Freq. 4:4:4 4:4:4 4:2:2 4:2:0 Ratio... -
Page 20: Power Management
4. Power management If a VESA DPM-compliant display card or software is installed on your PC, the monitor can automatically reduce power consumption when not in use. When input from the keyboard, mouse, or other input device is detected, the monitor automatically returns. -
Page 21: After-Sales Service And Product Warranty
5. After-sales service and product warranty If you have any questions or support, please contact the JOLED Service Center below. E-mail: joled@seamless.co.jp 10: 00-17: 00 (excluding Saturdays, Sundays, Japanese holidays and year-end and New Year holidays) See warranty for warranty period. -
Page 22: Troubleshooting And Faq
If trying these the On Screen Display. solutions does not resolve the issue, Image sticking (residual image) please contact JOLED service center. remains even when the power is turned off. General issues for monitor • Avoid displaying the same video for a long time. -
Page 23: Faq
6.2 FAQ What should I do if I see "No I can't tell what to do when signal input" on the screen adjusting the monitor on the when I install the monitor? OSD. Recommended resolution for Ans. After pressing the button, Ans. - Page 24 Can OLED monitors connect to PCs, Macs and workstations? Ans. You can connect. OLED monitors are compatible with standard PCs, Macs, and workstations. You may need a cable adapter to connect your monitor to your Mac. For more information, please contact JOLED service center.
-
Page 25: Appendix
Laboratories. • QR code is a registered trademark of DENSO WAVE INCORPORATED. • glancy is registered trademarks of JOLED Inc.. • Other system and product names mentioned in this document are generally registered trademarks or trademarks of each development manufacturer. In the text, TM, ®... -
Page 26: Energy Star
ENEGY STAR • ENERGY STAR is a program run by the U.S. Environmental Protection Agency (EPA) and U.S. Department of Energy (DOE) that promotes energy efficiency. • This product qualifies for ENERGY STAR in the “factory default” settings and this is the setting in which power savings will be achieved. •...
