mcf88 MCF-LW06KIO Manual

Manual MCF-LW06KIO

Rev.2

1. DESCRIPTION

MCF-LW06KIO is able to transfer RS232 serial data to a LoRaWAN™ network. The serial protocol is defined

by mcf88. MCF-LW06KIO is a Lora Alliance certified product.

Furthermore MCF-LW06KIO is able to transmit the state of its five opto isolated inputs (4 working with low

voltage, one working at 230VAC) and control two relay outputs through the LoRaWAN™ network.

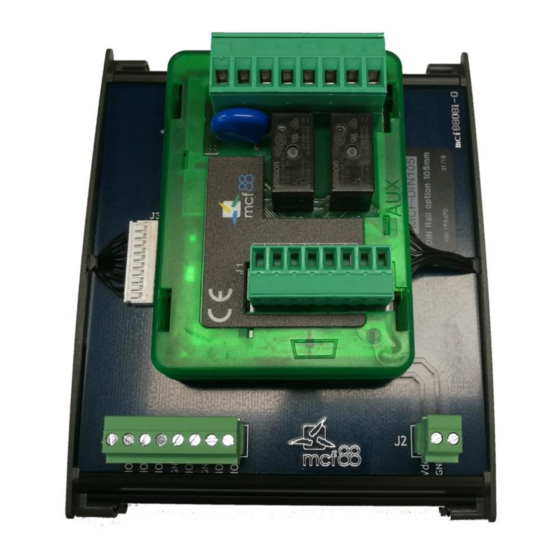

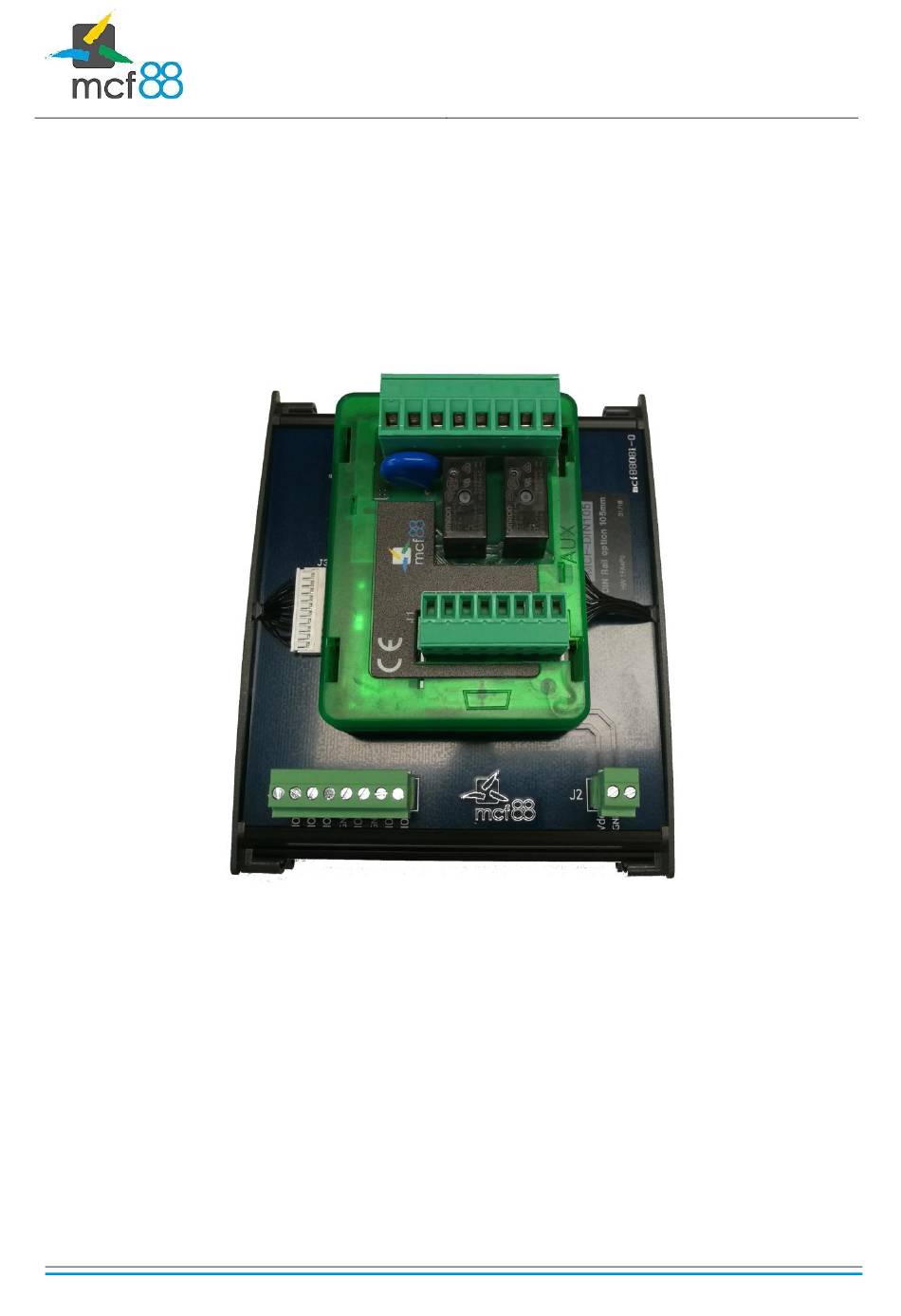

MCF-LW06KIO

is available with an optional DIN rail mount board (MCF-DIN105) as follow:

1 of 6

Table of Contents

Do you have a question about the MCF-LW06KIO and is the answer not in the manual?

Page 1 MCF-LW06KIO is a Lora Alliance certified product. Furthermore MCF-LW06KIO is able to transmit the state of its five opto isolated inputs (4 working with low voltage, one working at 230VAC) and control two relay outputs through the LoRaWAN™ network.
Page 2 Manual MCF-LW06KIO Rev.2 2. CONNECTION OF THE DEVICE 2.1 Connection as stand-alone device: 2.1.1 Power supply: ➢ red wire: positive power supply with range [10-36]Vdc ➢ black wire: negative power supply Power can also be supplied by USB but in that case I/Os capability is not available.
Page 3 Manual MCF-LW06KIO Rev.2 2.3 I/Os monitor and control: Please make the connections as follows Name Description Range J1.1 IN1+ INPUT 1 Positive [5-24] Vac/dc J1.2 IN1- INPUT 1 Negative J1.3 IN2+ INPUT 2 Positive [5-24] Vac/dc J1.4 IN2- INPUT 2 Negative J1.5...
Page 4 NONE: sensor not activated OTAA: the appkey and AppEUI must be written to the device. OTAA MCF88: Over the air activation according to mcf88 specifications ABP: requires writing to the device of NwkSkey, AppSkey, DevAddr The device exits factory activated with NONE mode.
Page 5 Manual MCF-LW06KIO Rev.2 5 of 6...
Page 6 Manual MCF-LW06KIO Rev.2 6. INSTALLATION Connect the antenna as shown below: The magnetic antenna must be positioned on a metal body. It should preferably be vertical and at least 30 cm away from other metal bodies. The installation must take place in a place where the LoRaWAN ™ signal coverage is good (SF=7 optimal, SF=12 weak).
