Summary of Contents for Dynascan XBP301

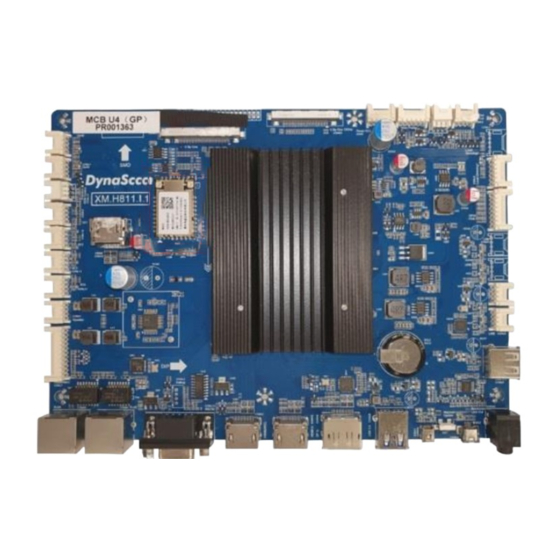

- Page 1 User Manual Android Control Board With Wireless module Product .：Digital Transmission System Model No.：XBP301...
- Page 2 This user manual pertains to Android player main board with wireless module, the main board can be assembled in the Android based Advertising Media player, listed as below Model Model Description 66502 65”Monitor 66901 86”Monitor Specifications Item Description Storage Internal：16GB NAND Flash, External：Micro SD Card WIFI 802.11 b/g/n Ethernet...
- Page 3 Hardware interface...
- Page 4 WIFI pin location and description： PIN SYMBOL DESCRIPTION PIN SYMBOL DESCRIPTION Not Connect BT_SYNC_IN Not Connect Not Connect Not Connect WL_USB_DP USB D+ WL_USB_DN USB D- Not Connect WLAN CHIP Not Connect WLAN_WAKE_HOST WAKES UP HOST Shutdown CHIP （Internal 47KΩ Not Connect CHIP_EN pull up to 3.3V,...
- Page 5 FCC Statement： FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 6 1. This module is certified pursuant to Part 15 rules section(15.247). 2. This module is limited to host model number: 66502, 66901 / Brand: DynaScan 3. This module has been approved to operate with the antenna types listed below, with the maximum permissible gain indicated.
- Page 7 For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. Name: DynaScan Technology, Inc. Address: 7 Chrysler, Irvine, CA 92618, USA Office: +1 949.421.0348 https://www.dynascandisplay.com...
