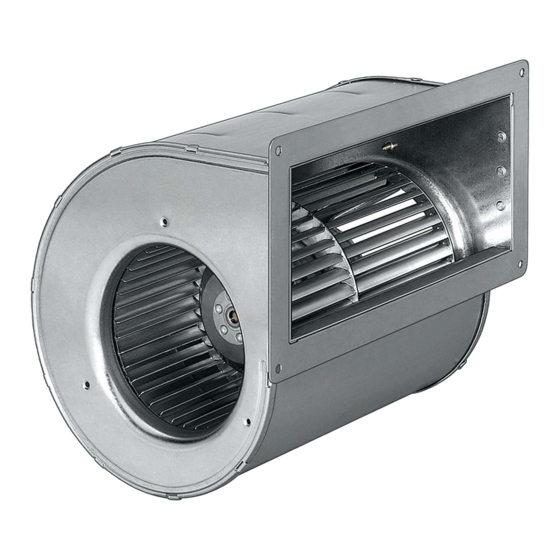

ebm-papst D2E133-AM47-23 Operating Instructions Manual

D2E133-AM47-23
ebm-papst Mulfingen GmbH & Co. KG
Bachmühle 2
D-74673 Mulfingen
Phone: +49(0)7938/81-0
Fax: +49(0)7938/81-110
info1@de.ebmpapst.com
www.ebmpapst.com
CONTENTS
1. SAFETY REGULATIONS AND NOTES
1.1 Levels of hazard warnings
1.2 Staff qualification
1.3 Basic safety rules
1.4 Electrical voltage
1.5 Safety and protective functions
1.6 Mechanical movement
1.7 Emission
1.8 Hot surface
1.9 Transport
1.10 Storage
1.11 Disposal
2. PROPER USE
3. TECHNICAL DATA
3.1 Graphic rendition of products
3.2 Nominal data
3.3 Technical description
3.4 Mounting data
3.5 Transport and storage conditions
4. CONNECTION AND START-UP
4.1 Connecting the mechanical system
4.2 Connecting the electrical system
4.3 Connection of the cables
4.4 Connection diagram
4.5 Checking the connections
4.6 Switch on device
4.7 Switching off the device
5. MAINTENANCE, MALFUNCTIONS, POSSIBLE
CAUSES AND REMEDIES
5.1 Cleaning
5.2 Safety test
Item no.: 10195-5-9970 · Revision status: KM72138 · Print-out on 08/04/2011 · Y. Uhlmann (VM-TDO) · Page 1 of 9
ebm-papst Mulfingen GmbH & Co. KG · Bachmühle 2 · D-74673 Mulfingen · Phone: +49(0)7938/81-0 · Fax: +49(0)7938/81-110 · info1@de.ebmpapst.com · www.ebmpapst.com
Operating instructions

1. SAFETY REGULATIONS AND NOTES

Please read these operating instructions carefully before starting to work
with the device. Observe the following warnings to prevent malfunctions
or physical damage to both property and people.
These operating instructions are to be regarded as part of this device.
If the device is sold or transferred, the operating instructions must
accompany it.
These operating instructions may be duplicated and forwarded for
information about potential dangers and their prevention.

1.1 Levels of hazard warnings

1
These operating instructions use the following hazard levels to indicate
1
potentially hazardous situations and important safety regulations:
1
DANGER
1
Indicates an imminently hazardous situation which, if not
1
avoided, will result in death or serious injury. Compliance with
the measures is mandatory.
2
2
WARNING
Indicates a potentially hazardous situation which, if not avoided,
2
could result in death or serious injury. Exercise extreme
2
caution while working.
2
CAUTION
2
Indicates a potentially hazardous situation which, if not avoided,
2 may result in minor or moderate injury or damage of property.
NOTE
3
A potentially harmful situation can occur and, if not avoided, can
4
lead to property damage.
4

1.2 Staff qualification

5
Only specialised electrical personnel may install the device, perform the
5
test run and work on the electrical system.
5
Only trained and authorised specialist personnel are permitted to
transport, unpack, assemble, operate or maintain the device, or to use it
5
in any other manner.
6

1.3 Basic safety rules

6
Any safety hazards stemming from the device must be re-evaluated
6
once it is installed in the end device.
6
Observe the following when working on the unit:
7
⇒ Do not make any modifications, additions or conversions to the
8
device without the approval of ebm-papst.
8

1.4 Electrical voltage

8
⇒ Check the electrical equipment of the device at regular intervals, refer
8
to chapter 5.2 Safety test.
⇒ Remove loose connections and defective cables immediately.
9
DANGER
9
Electrical load on the device
Risk of electric shock
→ Stand on a rubber mat if you are working on an electrically
WARNING
Terminals and connections have voltage even with a
unit that is shut off
Electric shock
→ Wait five minutes after disconnecting the voltage at all poles
charged device.
before opening the device.
