Summary of Contents for Acuity Controls xCella XCR RM 1RL DNI

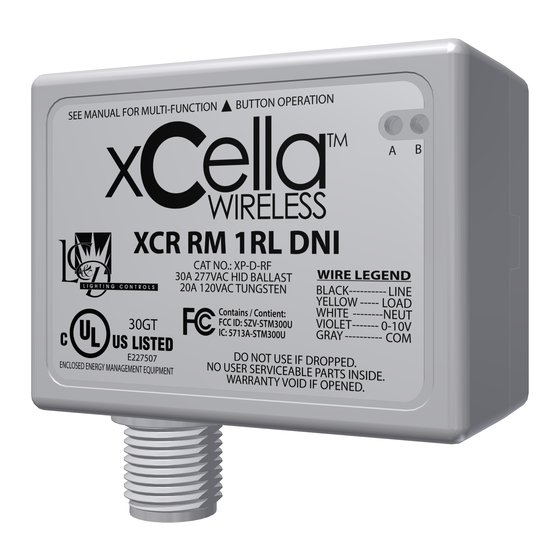

- Page 1 xCella ™ XCELLA WIRELESS REMOTE MODULE SETUP & PAIRING GUIDE IMPORTANT SAFEGUARDS READ AND FOLLOW ALL SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS Revision Date: 3/11/2015...
- Page 2 WARNINGS All servicing should be performed by qualified service personnel. “WARNING, Battery may explode if mistreated. Do not recharge, disassemble or dispose of in fire. ” “CAUTION - This equipment provides more than one power supply output source. To reduce the risk of electric shock disconnect both normal and emergency sources within this unit before servicing any equipment connected to this unit”...
- Page 3 PAIR & PLAY INSTRUCTIONS STEP 1: Enter Pairing mode. Double tap the xCella Remote Module user button to enter Override mode, then double tap again to enter Pairing mode. The Remote Module LED will blink rapidly. Remote Module user button Normal Double tap Override...
- Page 4 DEFAULT SEQUENCE OF OPERATIONS Wireless Switch With the lights off, tap the Up button to go to default on level of 70% Alternatively, you may double tap Up to turn on the room to full brightness. Press and hold the Up or Down button to begin continuously increasing or dimming the light level. Release the button when the desired light level is reached.
- Page 5 OVERRIDE MODE & INSTALLATION VERIFICATION The xCella Remote Module Override Mode can be used to manually override the lights via the Remote Module User button. This feature also provides a means of verifying the wiring connections of the Remote Module. STEP 1: Enter Override mode.
- Page 6 LED B Blink Pattern Description Power on Triple blinks Indicates the XCella Module has been recently powered MORE INFORMATION For more information, contact an Acuity Controls Support Representive at: (800) 345-4448 LCD-Support@AcuityBrands.com Or visit our website at: www.lightingcontrols.com WARRANTY Lighting Control & Design Inc. warrants each new unit for 36 months from date of shipment to be free of defects in material and workmanship under conditions of normal use and specified ambient temperature when installed and operated under LC&D’s product specifications and in...
