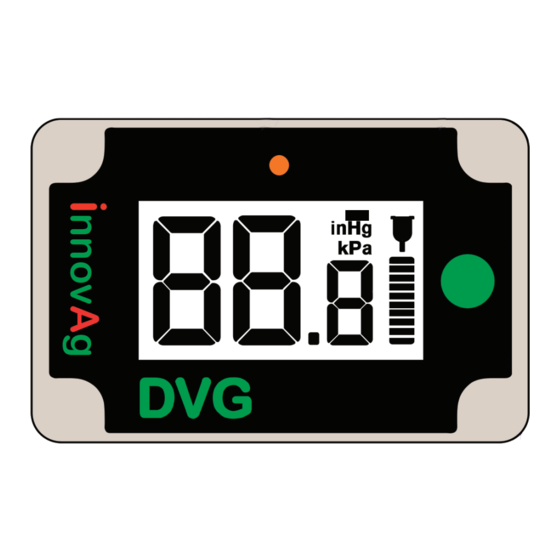

- Page 1 Dairy Vacuum Gauge USER MANUAL Part No. DR51-0044-14...
- Page 2 IEC 61326-1:2005 • EU Directive 2002/95/EC • EU Directive 2004/108/EC • China RoHS Manufacturer’s Name: InnovAg Pty. Ltd. Manufacturer’s Address: 37/328 Reserve Road, Cheltenham Victoria 3192, Australia Type of Equipment: Vacuum Gauge Brand Name: Model Number: DR40-0080 © 2018 InnovAg...
- Page 3 Enclosure Silicone tubing Metal fittings Front panel label Rating labels I, the undersigned, hereby declare that the equipment specified above conforms to the above Directives and Standards. Braham Basser Date: 30 July 2010 Director InnovAg Pty. Ltd © 2018 InnovAg...
-
Page 5: Table Of Contents
8. Specifications 9. Warranty All rights reserved. No part of this manual may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form by any means without the written permission of InnovAg Pty. Ltd. -
Page 6: Features
The display will first show a test screen, then 0.0 The round black sticker on the side of the DVG is an expensive waterproof air vent that allows the case to ‘breath’. It should NOT be removed or covered. © 2018 InnovAg... -
Page 7: Initial Setup
Keep holding the button down after the calibration year is shown in setup mode to initiate Manual-zero. Make sure there is no vacuum on the port. The display will flash 0.0 five times before the zero starts. When it stops flashing Manual-zero is completed. © 2018 InnovAg... - Page 8 Units = kPa. Liner milkings = 2500 Liner milkings = disabled Units = inHg. Units = kPa. Liner milkings = 1200 Liner milkings = 1200 Units = inHg. Units = kPa. Liner milkings = disabled Liner milkings = 2500 © 2018 InnovAg...
-
Page 9: Normal Operation
Pressing the button will display remaining liner life percentage, eg. 75.3%. Holding the button down will display the software version, calibration month and calibration year. The software version is shown eg. v5.0 Calibration month eg. October Calibration year eg. 2018 © 2018 InnovAg... - Page 10 100% (99.9%). Keep holding the Button down after FAST mode to initiate Liner reset mode. The display will flash 10 times before resetting. Continue holding the button down until the display stops flashing and shows 99.9% © 2018 InnovAg...
-
Page 11: Display Indications
DVG will detect if the vacuum is unstable (drops by more than 4kPa from the average) and will flash the decimal point for 5s each time a drop is detected. The displayed reading is not affected by the drop. The Unstable indicator is not shown in Fast Mode. © 2018 InnovAg... -
Page 12: Demonstration Mode
Wait for vacuum to stabilise at start of milking 20 min 1 min Liner wear bars drop one by one at 1200 10.8s Liner wear bars drop one by one at 2500 62.5h 22.5s Exit Demonstration Mode by removing the short and power cycling DVG. © 2018 InnovAg... -
Page 13: Maintenance & Calibration
±0.5kPa. If checking DVG be careful that the other meter you are using is reliably accurate and the vacuum is perfectly stable. DVG can be returned to InnovAg for recalibration. Contact InnovAg or your local distributor for the latest calibration prices. 8. Specifications... -
Page 14: Warranty
WHAT IS NOT COVERED This Warranty does not cover any failures of equipment not supplied by innovAg, nor does it cover any failures of or damage to the product due to: (i) improper handling, misuse, neglect, accident, improper installation , non-compliance with the directions for use;... - Page 15 Purchaser, where permitted, is limited to the undertakings as stated in the clause headed ‘WHAT WE WILL DO’. Subject to the above, in no event shall innovAg be liable (whether before or after discharge of the contract for supply of the product or otherwise)
- Page 16 InnovAg Pty Ltd 37/328 Reserve Road Cheltenham Victoria 3192, Australia FreeCall (within Australia) 1800 061 167 +61 3 9583 2832 sales@innovag.com www.innovag.com A.C.N. 073 191 376 © 2018 InnovAg © 2018 InnovAg...
