Summary of Contents for ORANGE 105520-0-A

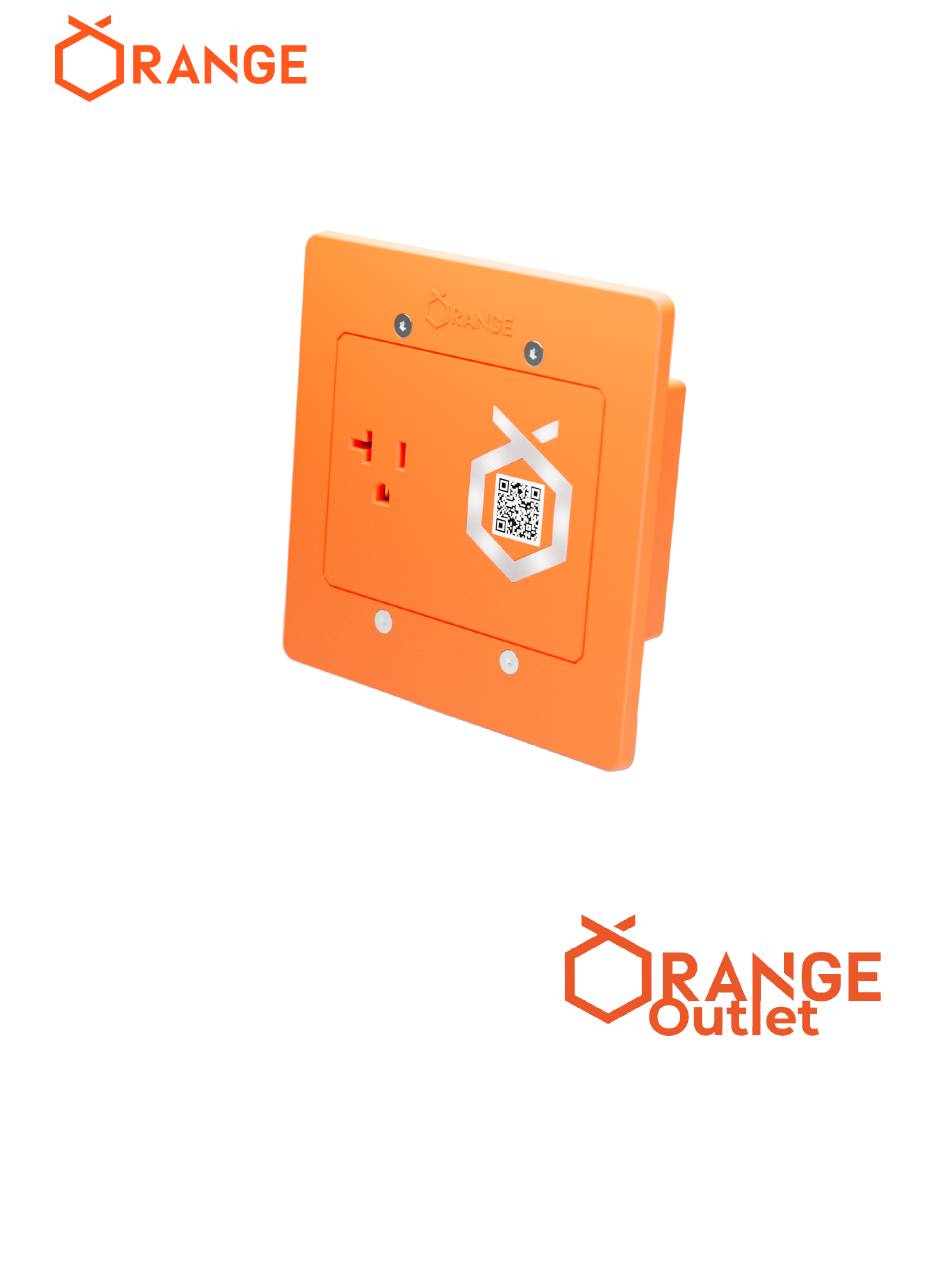

- Page 1 Orange Outlet Manual 20 Amp Smart Electric Vehicle Charging Outlet...
- Page 2 TABLE OF CONTENTS Published Jul 5th, 2022 Revision 1.3 Part Numbers This User Manual Is Intended for: 105520-0-A, 105620-0-A, 115520-0-A, 115620-0-A Important Safety Information Product Overview Product Specifications Circuit breaker Rating / Maximum Output Using Orange Outlet Features Connectivity Power Outages...
-
Page 3: Important Safety Instructions
WARNING: Use the outlet only within specified operating parameters. WARNING: Do not use Orange Outlet if it is defective, appears cracked, frayed, broken, or otherwise damaged, or fails to operate. WARNING: Do not attempt to disassemble, repair, tamper with, or modify Orange Outlet. - Page 4 WARNING: When transporting Orange Outlet, handle with care. Do not subject it to strong forces, impacts, pulls, drag, or step on Orange Outlet to prevent damage to any components. WARNING: Do not touch Orange Outlet contact terminals with fingers, or sharp metallic objects, such as wires, tools, or needles.
- Page 5 115620-0-A Circuit Breaker Rating / Maximum Output For the NEMA 5-20 Outlet PN: 105520-0-A or 115520-0-A For maximum power output, install a standard single-pole 20 amp circuit breaker. If the outlet is installed outside or outdoors use a standard single-pole 20 amp GFCI circuit breaker.
-
Page 6: Product Specifications
3 Year Circuit Breaker Rating / Maximum Output For maximum power output, install a standard double pole 20 amp circuit breaker. Voltage Circuit breaker Max output (amps) Power output at 240 volts (amps) - GFCI 3.84 Copyrights Orange Charger Inc 2022... - Page 7 1.92 Grounding Connections Orange Outlet must have a ground path back to the main equipment earthing point on site. Without a proper ground connection, the Orange Outlet will fault during a ground assurance test. An equipment grounding conductor must be run with the circuit conductors and connected to the equipment-grounding terminal in the wire box.
- Page 8 Connectivity Orange Outlet comes in two connectivity options, Wifi or Cellular, in most cases we recommend installing cellular connectivity devices if you are not the owner and operator of an on-premise WiFi network with high reliability. Limited LTE Access In situations where LTE connectivity is limited, like underground parking garages Orange Outlets have the ability to relay information on their own mesh-like local network and find a unit that has the best connectivity to transmit data over.
-
Page 9: Scan Qr Code
In the Box 12AWG WAGO Connectors (x3) One Orange Outlet (x1) Cover Fasteners (x4) Documentation Papers (Online) SCAN QR CODE Required Tools (Not INcluded) T10 Torx Screwdriver or Bit Smartphone With Orange Mobile App Copyrights Orange Charger Inc 2022... -
Page 10: Installation Considerations
For cellular and Wifi connections please check the mobile app during installation to see if its signal strength is above 30% signal. Signal reception is negatively affected by metallic enclosures, ensure that a non-metallic enclosure is used. Install Clearance Requirements Copyrights Orange Charger Inc 2022... -
Page 11: Installation Instructions
Install the Orange Outlet in a location with ample clearance on all sides to allow for easy access and possible additional cable management. Recommend Minimum Outlet Clearance Inches (in) Millimeter (mm) Front Left Side Right SIde Botton INSTALLATION INSTRUCTIONS STEP 0: WARNING: Always de-energize the circuit you are working on before performing any electrical work, installation, or maintenance. - Page 12 Using the supplied WAGO connectors you can now connect the wires based on the product type you are installing. All Orange Outlets have a black and green wire and for 120V versions a white wire or for 240V versions a red wire. Match those to the table below.
- Page 13 WAGO connector, and made sure all connections are correct and secure you can push the Orange Outlet into the 2 Gang box. Use the 4 screws provided to attach the Outlet to a 2 gang box, and make sure you follow proper torque requirements.
- Page 14 Copyrights Orange Charger Inc 2022...
- Page 15 After completing the installation, you can return to the breaker panel to energize the circuit breaker. If everything was connected property, you should know the LED ring should turn on and breathe deep blue. This way takes 2-5 minutes for a cellular connection to be made. Copyrights Orange Charger Inc 2022...
- Page 16 Step 4: Commission Software Next, download the Model App to complete the setup of the outlet and connect the payment service to your property. Copyrights Orange Charger Inc 2022...
- Page 17 LED Status Copyrights Orange Charger Inc 2022...
- Page 18 The Orange LED Logo gives useful information about the current state of any Orange O No LEDs On, POWER ISSUE. Check breaker panels and make sure all circuits are properly installed. Please contact Orange or a locally certified electrician if the breaker is not the issue.
-
Page 19: Warranty
Failure to contact Orange Charger upon discovery of a defect covered by this Orange Outlet Limited Warranty; Any repair, alteration, or modification to the Orange Outlet or any part, or the installation or use of any parts or accessories, made by a person or facility not authorized or certified to do so;... -
Page 20: Limits Of Liability
Orange authorized repair facilities have special training, expertise, tools, and supplies concerning Orange products and, in certain cases, may employ the only persons, or be the only facilities authorized or certified to work on Orange products. Orange strongly... - Page 21 OrangeCharger shall not be liable for any defects under this Orange Outlet Limited Warranty that exceed the fair market value of the applicable Orange Outlet at the time immediately preceding the discovery of the defect. In addition, the sum of all benefits payable under this Orange Outlet Limited Warranty shall not exceed the price you paid for the applicable Orange Outlet.
- Page 22 Change Log Published April 30th, 2021 Revision 1.0 Published Dec 12th, 2021 Revision 1.1 Published Jun 10th, 2022 Revision 1.2 Published July 5th, 2022 Revision 1.3 Published Aug 1st, 2022 Revision 1.4 Copyrights Orange Charger Inc 2022...
