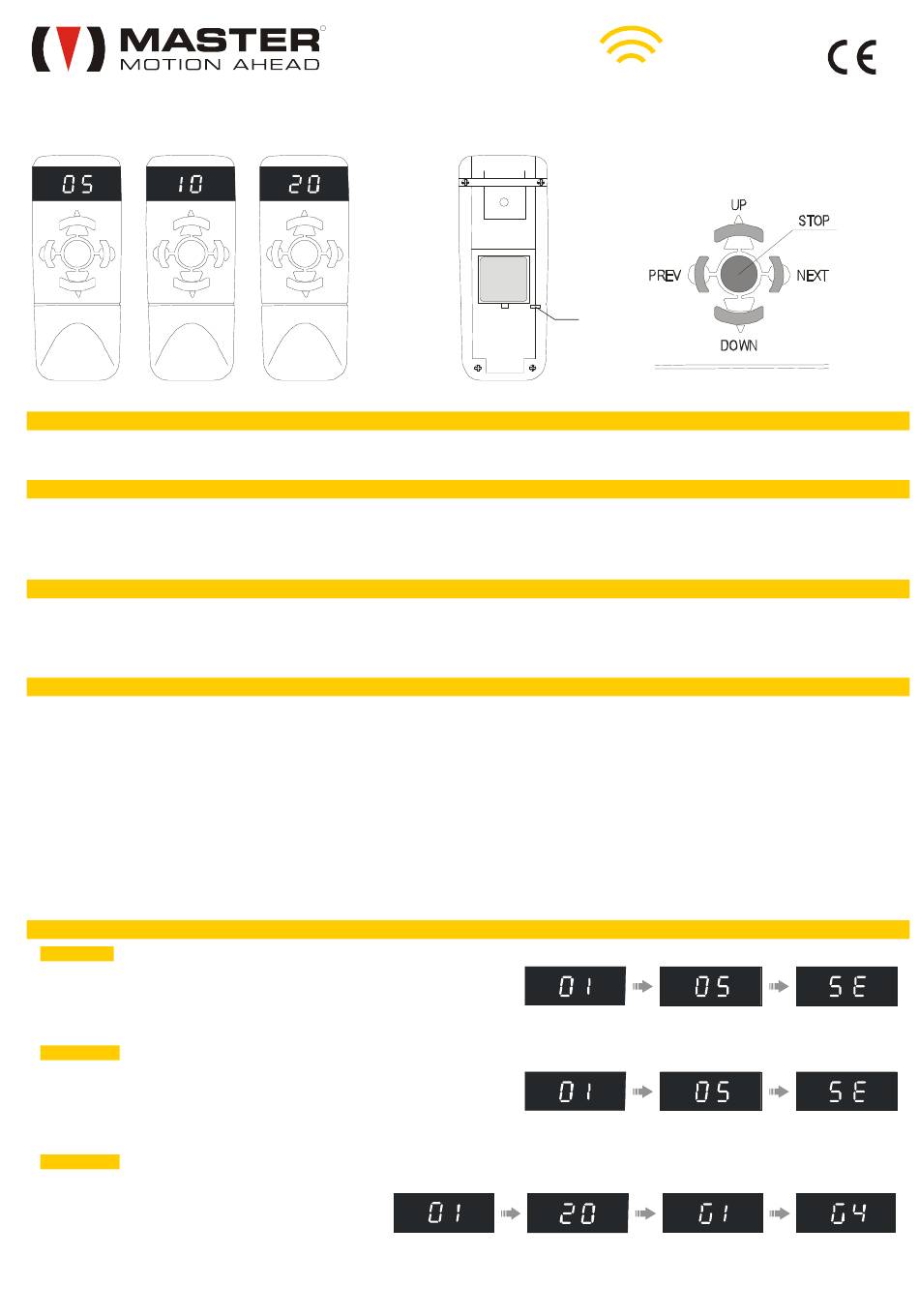

Master VECTOR 5 Quick Start Manual

VECTOR 5 – VECTOR 10 – VECTOR 20
Warnings
In this sheet there are included important informations regarding the use conditions and installation safety. Respect this instructions and keep them for eventual following consultations. The
VECTOR 5 – VECTOR 10 – VECTOR 20 transmitter series are especially projected for the control of awnings, inside curtains, roller shutters, screen or similar. Any other use is
inappropriate and prohibited.

1. Technical Data

(referred to 20°C temperature)
- Power Supply: 1 Battery type CR2032
- Working Temperature: from –20 to +55 °C
- Dimensions: 40 x 100 x 13 mm
- Radio Channels: VECTOR5 : 05 + Sequence program function VECTOR10: 10 + Sequence program function VECTOR20 : 20 + 4 programmable Groups
- Radio Frequency: 433.92 MHz

2. Important Notes about Radio Systems

- It is advisable to not use radio installation where there is a high disturbing factor (for example: near police station, airports, banks and hospitals). However it is advisable a technical
control of the place before installing any kind of radio system in order to avoid any possible interference sources.
- Radio devices can be used only if any possible interferences or diseases of the transmitter or of the receiver are not a factor of risk, or if the factor of risk is cancelled by security
system.
- Radio devices working at the same frequency (for example alarms and earphones) can interfere each other, producing disease of radio system itself.

3. Functions associated to transmitter buttons

- PROG Program Button
- STOP Stop Button
- UP Upward Command
- DOWN Downward Command
- NEXT select the next active Channel
- PREV select the previous active Channel
- PREV+NEXT Indicate the battery condition and allow to enter into active radio channels menu setting
- STOP+UP Special Code
- STOP+DOWN Special Code
- STOP+NEXT change the setting of Sun/Automatic Downward function
- STOP+PREV change the setting of Anemometric Test function/ Delay with insertion on general command function
- STOP+PROG Enter on group set up menu (only VECTOR 20)
•
According to radio receiver type tuned on radio channel, some of these functions cannot be available or can operating in a different way. For any further informations, please read the
instruction guide of the radio receiver tuned on the radio channel.

4. General Characteristics

4.1 VECTOR 5
The VECTOR 5 transmitter is a transmitter that can manage up to 5 Radio Channels. Moreover
the transmitter has a virtual channel (sequence program, indicate with "SE" symbol, see
section 6.1) which send the selected command to all active radio channels in series. Each
channel can be enable or disable (see section 5). For each 5 radio channels supported can be
set up some special functions (see section 7 and 8).
4.2 VECTOR 10
The VECTOR 10 transmitter is a transmitter that can manage up to 10 radio channels.
Moreover the transmitter has a virtual channel (sequence program channel, indicate with "SE"
symbol, see section 6.1) which send the selected command to all active radio channels in
series. Each Channel can be enable or disable (see section 5). For each 10 radio channels
supported can be set up some special functions (see section 7 and 8).
4.3 VECTOR 20
The VECTOR 20 transmitter is a transmitter that can manage up to 20
radio channels. Moreover the transmitter has 4 programmable virtual
channels (groups, indicate with "G1" ... "G4" symbols see section 6.2)
which send to all channel radio, members of the current group, the
selected command in series. Each Channel can be enable or disable
(see section 5). For each 20 radio channels supported can be set up
some special functions (see section 7 and 8).
R
433,92 MHz
Prog
*
*
*
*
*
