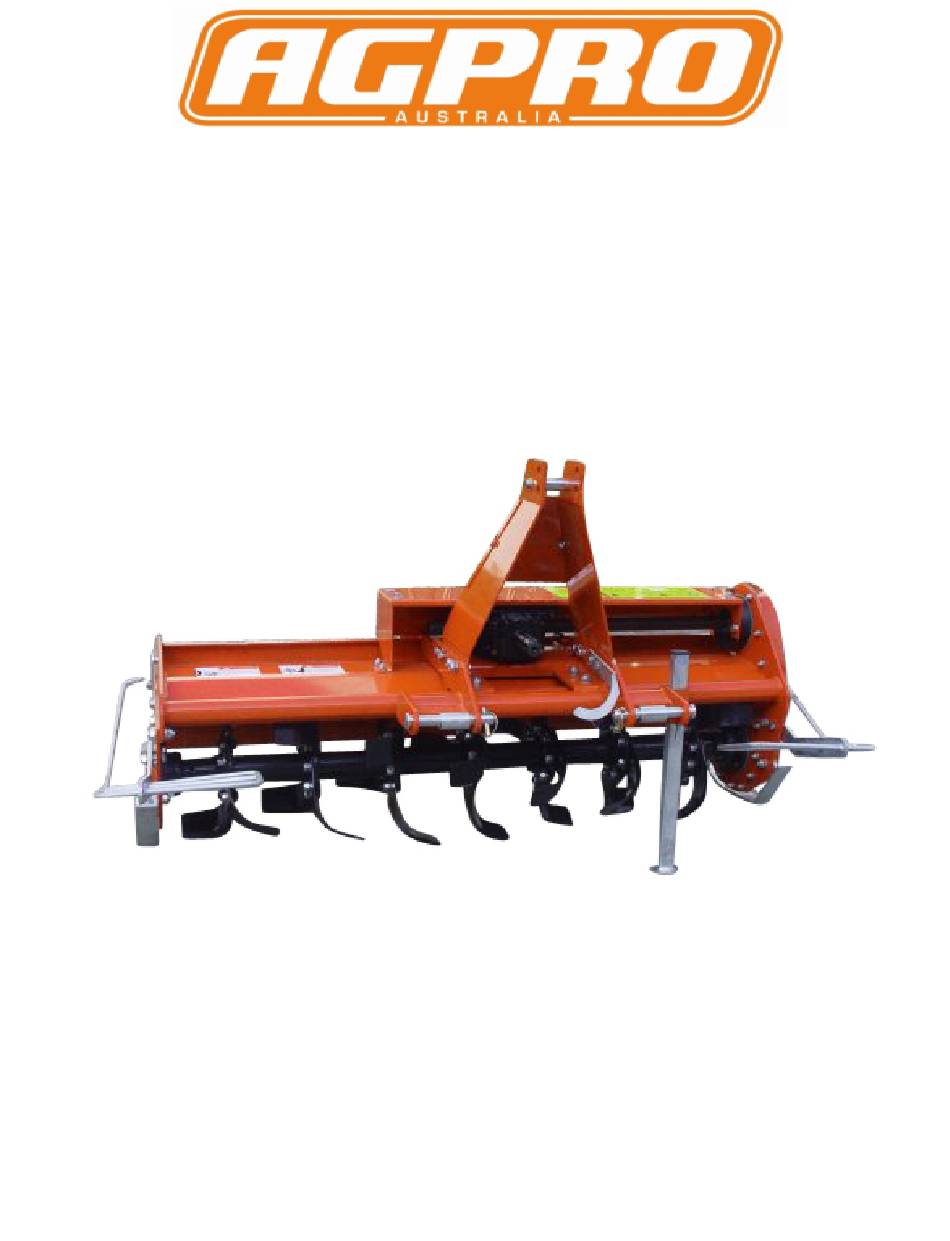

- Page 1 MEDIUM DUTY ROTARY HOE AGTL105/125 OPERATION MANUAL Ag Pro Australia Pty Ltd 3730 Harmony Way Harcourt Victoria 3453 1300 121 131 agpro@agproproducts.com.au...
- Page 2 I. GUARANTEE Materials made by us have guaranteed that no defects are on the materials themselves or that there is no blemish during manufacturing. This guarantee will have no effect after the expiry. Exception conditions: (1) It is unworkable due to damaging (lake of care or maintenance), abnormal operations, overused or abnormal abrasion.
- Page 3 II HAND-OPERATING MILLING CUTTERS Seeing this symbol means possible danger to you, so please pay enough attention to this symbol. Ⅲ AFTY & PREVENTIVE STEPS FOR ACCIDENT During operation, you should always remind yourself to be careful to maintain and replace parts and to obey rules to avoid accident. To operate the machine in a better way, please follow safety rules including these: (1) Stop tractor, waiting all moving parts to stop.
- Page 4 (6) Don't let machine operate without human control. (7) When you maintain, repair or keep the key of tractor, keep the machine from moving forward. (8) Don't wear tights to avoid being rolled. Wear glove when cutting parts. (9) Don't let anybody seat on implements and tractor. (10) Cardan shaft should always be kept in good condition.
- Page 5 4. Operation speed is better to be 1.2-1.5 km/h. Ⅴ TENSILITY OF CHAIN 1. Tensility of chain is caused by elasticity inside bonnet. If the machine has noise or works for successive 200 hours, adjust elasticity and chain. Adjust parts and components in special workshop. Install bonnet with new fastening.
- Page 6 If there is damage on protective gear, replace it completely. Generally, a chain should be fitted on protective device not only under working condition. 3. When an implement is fitted on tractor, always use pins to lock the crankshaft. If pins go wrong, replace them. 4.
- Page 7 Ⅸ INFORMATION SYMBOLS 1. Label No. 1 means the model. 2. To transport easily, machine can be delivered without engine oil. 3. Read Operation Instruction carefully before using. 4. Output power is 540rpm. 5. Pay attention to the small clods casted out. Frequent inspection for the working parts and components is necessary.
- Page 9 Ser. No. Name Ser. No Name Bolts Stop washer Nuts Chain Shield protective cover Oil seal ring Washer Oil filler plug Lower suspension pin Side chain gear box Small bevel gear Oil drain plug Bearing Circular nut Oil seal ring Circlip Big sprocket wheel Bolts...
