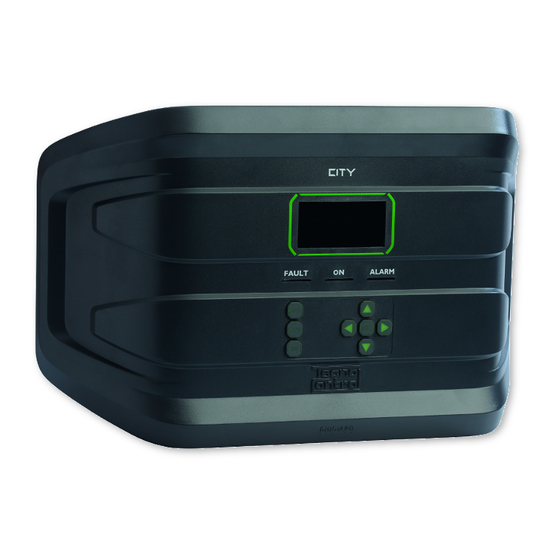

GAS CONTROL UNIT
CITY
CE408P
Max no.8 4÷20mA Gas Detectors
USER MANUAL
TECNOCONTROL S.r.l.
Via Miglioli, 47 20054 SEGRATE (MI) Italy- Tel. (+39) 02 26922890 - Fax (+39)02 2133734
http:
www.cpftecnogeca.com
e-mail:
info@tecnocontrol.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CITY CE408P and is the answer not in the manual?

Questions and answers

Related Manuals for Tecnocontrol CITY CE408P

Summary of Contents for Tecnocontrol CITY CE408P

  • Page 1 IST-1408.CE02.02/A File: IST-1408.CE02.02-A_CE408-EN (04.03.2021).docx GAS CONTROL UNIT CITY CE408P Max no.8 4÷20mA Gas Detectors USER MANUAL TECNOCONTROL S.r.l. Via Miglioli, 47 20054 SEGRATE (MI) Italy- Tel. (+39) 02 26922890 - Fax (+39)02 2133734 http: www.cpftecnogeca.com e-mail: info@tecnocontrol.it...

  • Page 2: Information And Warnings Of Use

    Aggiornamento Documento per Firmware Vers.2.0 / Document Update for 04/03/2021 UT/FG Firmware Vers.2.0 / Mise à jour du document pour le micrologiciel version 2.0 TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 3: Table Of Contents

    ZONES - CONFIGURE (Level 2):  Description of items related to the Zone:  Description of the items relating to the outputs: TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 4 TABLE 6 - PRECONFIGURED Parameters of Relay Output Operation Configuration Reminder Tables Diagram Menu with access without password TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 5: Product Description

    It can be configured to activate one of the available relays and can be used by devices with NO or NC contact outputs (gas sensors with a relay contact, smoke sensors, buttons, etc.). TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 6 Hysteresis OFF delay). For example you can use it to enable devices that cannot be powered down, or to send a pulse to a phone dialer. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 7 LEVEL 1: for the User LEVEL 2: for the Installer or Maintenance technician. LEVEL 3: Reserved - Only accessible for factory settings. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 8: Control Unit Installation

    TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 9: Electrical Connections

    Ingresso Alimentazione di Rete Entrées des sondes Mains power supply Input Entrée Alimentation Reseau Fig.4 – Inputs for cable glands TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 10: Power Connection

    90÷ 264 Vac / 47÷63Hz Mains power supply terminal Fig 5 – CE408P Wiring diagram for Power, Batteries, AUX input and relay output No.9. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 11: Connection With Gas Detectors (Sensors)

    On each detector (sensor) it will be necessary to use two cable glands, one for the input and one for the output. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 12 DISCONNECT THE POWER SUPPLY TO THE CONTROL UNIT AINS POWER AND ATTERY IF PRESENTS BEFORE YOU UNPLUG OR RE CONNECT ANY EXPANSION CARD TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 13: Use Of The Control Unit

     Single digit numeric field (password entry, etc.) By pressing key, the number is displayed in the field. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 14: Screens 'Enable

    Symbols used to indicate the presence of mains power: = mains operation (is absent, when the power is by the batteries). TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 15 Value 0 (zero) indicates, at that threshold, the output not been assigned, while the highlighted value indicates that output relay is currently active (alarm). The values are real time updated. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 16 Press to enter the Main Menu. The Control Unit has No. 2 Zones and No.1 Logic Input. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 17: Main Menu

    Enter a submenu where you can update  the Firmware of the control unit via 0-SD CARD an SD Card TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 18: Reset

    If you have selected a group of sensors, the ones that have been configured are enabled or disable. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 19: Configure Sensors (Level 2)

    TS282KB complete the selection by selecting the complete entry TS282KM and TS282KG TS282KI press to confirm. ENTER TS282KM TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 20: Description Of Items Related To The Preconfigured Sensor

    2 ≥ FAULT must be set in increasing order. Each alarm level is a value obtained with a temporal average. TLVs in detail are: TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 21: Description Of The Items Relating To The Outputs

    TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 22: Configure - Generic Sensor

    It indicates the gas that the sensor will detect. You can choose between Flammab. TYPE (Flammable), Toxic, Vital (e.g. Oxygen), Asphixian. (e.g. CO2 is asphyxiating) and Refriger. (Refrigerant e.g. R134a). TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 23: Sensors-Copy (Level 2)

    DELETED Then the screen returns to the beginning of the CANCEL management. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 24: Sensors-Modify (Level 2)

    Indicates the status of the input. LOW means that it will go into ALARM when the ACTIVE circuit is open (e.g. button). HIGH mean it will go into ALARM when closed. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 25: Logic Input - Delete (Level 2)

    These two items allow you to Enable or Disable one or more ZONES at the same time. The Disable status is displayed on the main screen, next to the Input, with the symbol “ ”. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 26: Zones - Configure (Level 2)

    N. 1 warns that the operation was successful. CONFIGURED Then the screen returns to the CONFIGURE ZONES screen. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 27: Zones-Delete (Level 2)

    Events are displayed in groups on the same day starting with the most recent. Then with the keys you scroll through the events and days. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 28: Settings

    The window will warn that the operation was successful. SETTTINGS Then the screen returns to the beginning of the SETTINGS SAVED management. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 29: Settings-Display Contrast

    LEVEL 2: intended for the Installer or Maintenance Technician LEVEL 3 is reserved only for the Manufacturer (Tecnocontrol). TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 30: Enable Level

    In case of loss of passwords, contact our assistance service. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 31: Service

    PRESENT or ABSENT. If the SD card is inserted but not detected, it may be inserted incorrectly or the card holder is broken. Press to return to the previous screen. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 32: Service-Battery (Level 2)

    FAT32 (max 32Gb). Normally the control unit accepts all SD Cards, however it is recommended to use those from qualified manufacturers. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 33: Update Fw. (Level 2)

    CORRUPT integrity of the update file by loading the previous working firmware version. If not, contact the supplier. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 34: Appendix

    (aging, temperature, etc.). (4) Using Metric Cable Glands (M16 and M20 Pitch ISO 1,5mm) with IP55 or higher protection degree. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 35: Summary Of The List Of Fault And Alarm Messages

    The control unit is unable to start, incomplete or missing firmware. CORRUPT FIRMWARE The Control unit is unable to update the Firmware from the SD-Card UPDATE FAILED TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 36: Tables With List Of Preconfigured Gas Detectors

    Alarm =OXYGEN 19.5 18.5 22.5 TS282 EO Configurable 0÷25.0 % vol TS293 EO 20.0 19.5 18.5 Alarm =DECREASING TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 37 RANGE UNIT Alarm =OXYGEN 19.5 18.5 22.5 Configurable TS593 EO 0÷25.0 % vol 20.0 19.5 18.5 Alarm =DECREASING TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 38 60 minutes, while the delay of the relay activation, in HYST.ON (Hysteresis ON) THRESHOLD 3, can be set from 60 to 300 seconds. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 39 Logic Output (seconds) NO-NON NO-NON NO-NON  NO-NON SI-YES-OUI SI-YES-OUI  NO-NON SI-YES-OUI SI-YES-OUI FAULT NO-NON SI-YES-OUI NO-NON TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 40: Configuration Reminder Tables

    (from 0 to 300 Seconds) HYSTEresis OFF (from 0 to 300 Seconds) TIME ON (NO/YES) POSITIV LOGIC (NO/YES) LATCHED Output TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 41 (NO/YES) POSITIV LOGIC (NO/YES) LATCHED Output OUTPUT 2 THRESHOLD 2 (2 Relay Number for ALARM 2) (NO/SI) TACITABILE TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
  • Page 42 The Serial Number is on the Test Label located inside, in the base of the Control Unit. The model and firmware version are visible at start-up or on display with Settings  General  Info menu. TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...

  • Page 43: Diagram Menu With Access Without Password

    LEVEL 3: Manufacturer (Tecnocontrol). 3 MODIFY 3 LEVEL 3 SERVICE ELECTRIC TEST BATTERY SENSORS STATUS FACTORY TEST SD CARD UPDATE FW TECNOCONTROL S.r.l. - Via Miglioli, 47 20054 SEGRATE (MI) - Tel. 02. 26 92 28 90 - Fax 02. 21 33 734...
