INSTALLATION INSTRUCTIONS
C-SW-A-S66L-SCCT-US-UC Series
CAUTIONS
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions
should always be followed including the following:
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. DANGER- Risk of shock- Disconnect power before
installation.
DANGER – Risque de choc – Couper l'alimentation
avant l'installation.
2. This luminaire must be installed in accordance with the
NEC or your local electrical code. If you are not familiar
with these codes and requirements, consult a qualified
electrician.
Ce produit doit être installé conformément à NEC ou
votre code électrique local. Si vous n'êtes pas familier
avec ces codes et ces exigences, veuillez contacter un
électricien qualifié.
3. Suitable for damp locations.
Convient aux emplacements humides.
SAVE THESE INSTRUCTIONS FOR
FUTURE REFERENCE
DIRECT MOUNT INSTALLATION
NOTE: Fixture is intended to be wall mounted.

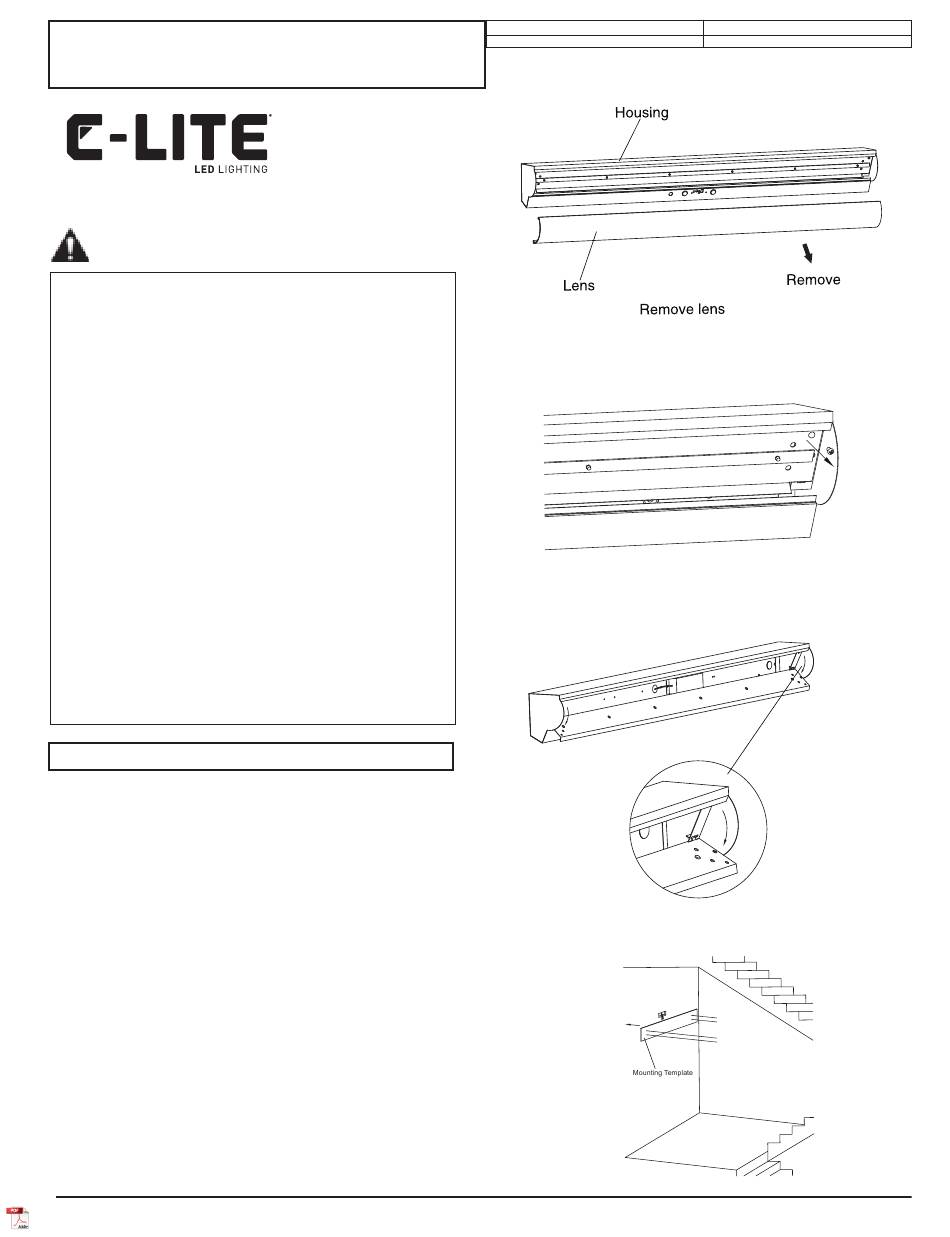

1. Remove the lens from the housing by squeezing the lens and
lifting it away from the housing. See Figure 1.
2. Remove the (2) screws near the ends of the LED panel. Retain
screws for later use. See Figure 2.
3. Flip the LED panel forward to expose the driver(s) and wiring
compartment. See Figure 3.
Remove appropriate knockout from fixture housing for supply wire
4.
entry.
5. Use the supplied cardboard mounting template to mark the
locations of the (4) mounting screws. See Figure 4.
NOTE: Make sure fixture is positioned to allow supply wires to
enter through chosen knockout location.
6. Install customer supplied #8 mounting screws appropriate for the
mounting surface at the marked locations. Thread the screws
into the mounting surface, but stop when the screw heads are
approximately 1/4" from the surface.
7. Feed the supply leads through the knockout removed in Step 4.
Bring the fixture to the mounting surface and pass the screw
8.
heads through the holes in the keyhole slots on the back wall of
the fixture housing. Allow the fixture to drop down over the screws
and fully tighten the (4) mounting screws.
Document:
Created By:
http://lighting.cree.com/warranty
LPN00869X0001A0_A
TMT
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4
| 866.924.3645
Date:
1-04-2022
