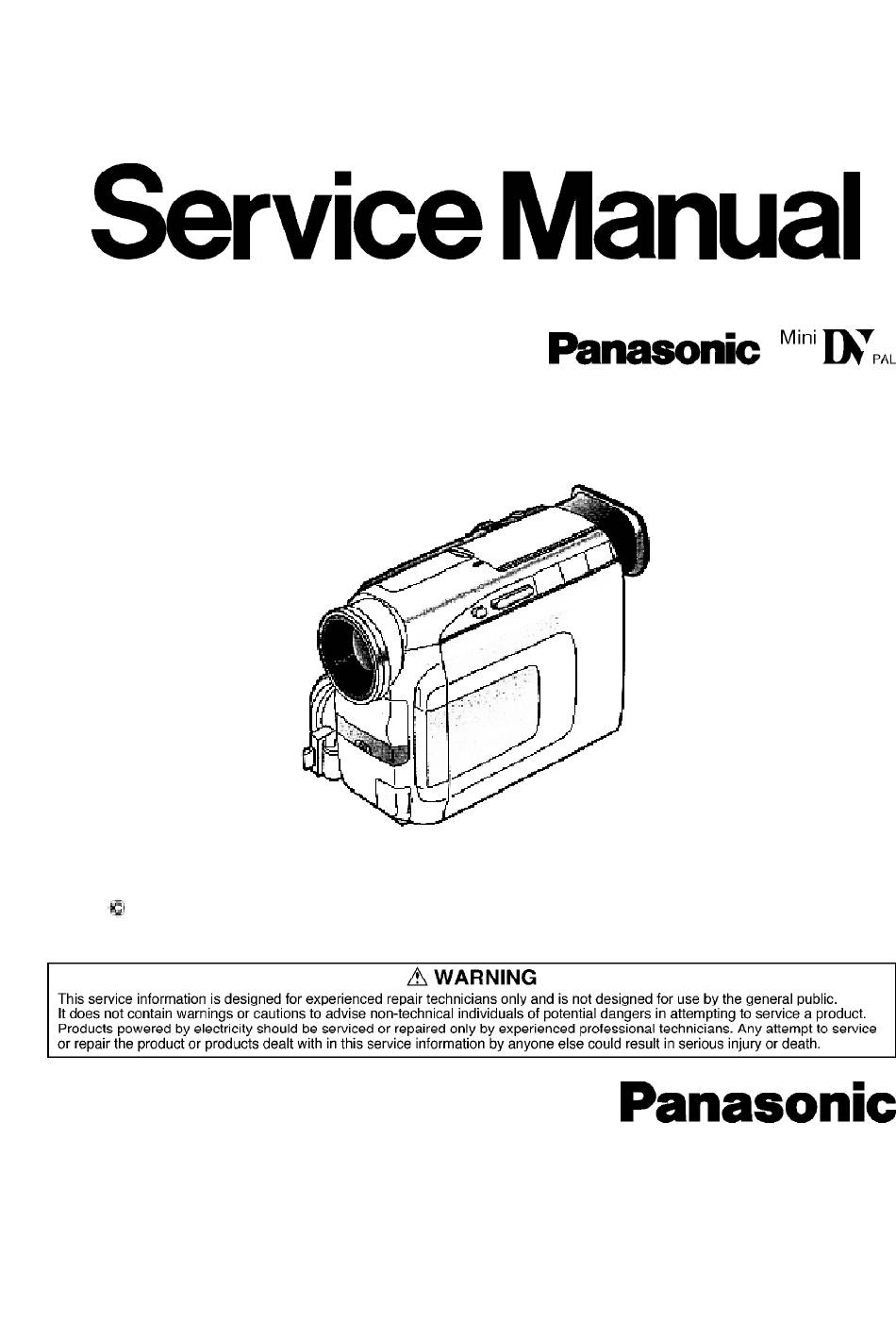

ORDER NO. VMD9807038C2 Digital Video Camera/Recorder NV-DS77 Q1-MECHANISM EG/B SPECIFICATIONS 1998 Matsushita Electric Industrial Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law. 1. INTRODUCTION Note 1: These movie camera uses AC Adaptor VW-AD7E/B/A. This Service Manual for AC Adaptor is separate volume.
Order number for VW-AD7E/B/A VMD9807039C8 Note 2: This service manual does not contain the following information because of the impossibility of servicing at component level. 1. Schematic diagram and C.B.A. layout of VTR Main C.B.A. 2. Parts list for individual parts of VTR Main C.B.A. 3.
If you lose the fuse cover, the plug must not be used until a replacement cover is obtained. A replacement fuse cover can be purchased from your local Panasonic Dealer. If the fitted moulded plug is unsuitable for the socket outlet in your home then the fuse should be removed and the plug cut off and disposed of safety.
2.2.3. How to replace the Fuse 1. Remove the Fuse Cover with a screwdriver. 2. Replace the fuse and attach the Fuse cover. 3. SERVICE INFORMATION 3.1. Service Extension Cables Part No. Part Name Connection Q'ty Remarks VFK1443 Flat Cable FP2201 (VTR Main)-Mecha. Cap. VFK1443 Flat Cable FP2203 (VTR Main)-Mecha.
3.3. Preparation for Electrical Adjustment Remove Screw and EVR Cover which is located on the Side Case Unit as follows. <Fig.E1> Then connect the following cables as shown in Fig. E2. Part No. Part Name Remarks Q'ty VFA0272 232C (M3) I/F Cable VFK1308E Measuring Board VFK1309...
<Fig.E3> 3.4. Service Mode When undesirable conditions occurred, the error code is displayed on the EVF or LCD Monitor. Also, the Camera LED is flashed according to the error code as follows. DISPLAY CONDITION POWER OFF TIMING / POWER LED FLASHING TIMING T-Reel Lock After 1 minute flashing the LED S-Reel Lock...
<Fig.B1> Note: The lithium battery is a critical component (Type No.: VL1220/1FC Manufactured by Panasonic.) / It must never be subjected to excessive heat or discharge. / It must therefore only be fitted in equipment designed specifically for its use. / Replacement batteries must be of the same type and manufacture.
5. ADJUSTMENT PROCEDURES 5.1. DISASSEMBLE FLOW CHART This flow chart indicates the disassembly steps the cabinet parts, C.B.A. and Mechanism Unit in order to access to items to be serviced. When reinstalling, perform the steps in the reverse order. <Fig.F1> 5.2.
Page 10
Item / Part Fig. Removal (Screw & Other) (1) Front Case Fig.1 Remove the DV Cover Unit and Grip Belt. / 1- Screw (A) / 1-Screw (B) 2-Screws (C) / 2- Screws (D) / Unlock----- Locking Tab (2) Mic Unit Fig.2 3-Screws (E) / Disconnect FP4801.
Page 11
Item / Part Fig. Removal (Screw & Other) (8) EVF C.B.A. Fig.6-1 Slide the EVF Slide Case. / 2-Screws (V) / Remove the EVF Unit from Top Case Unit. / Remove the Wind Cover. / Remove the EVF Slide Case. Fig.6-2 3-Screws (W) / Unhook ----(a) / Unhook----(b)
Fig.9-2 5.3. DISASSEMBLY PROCEDURES OF LENS UNIT The following flowchart describes order or steps for removing the lens units and certain printed circuit boards in order to make access to the item needing service. To reassemble the unit follow the steps in reverse order. Fig.L1...
