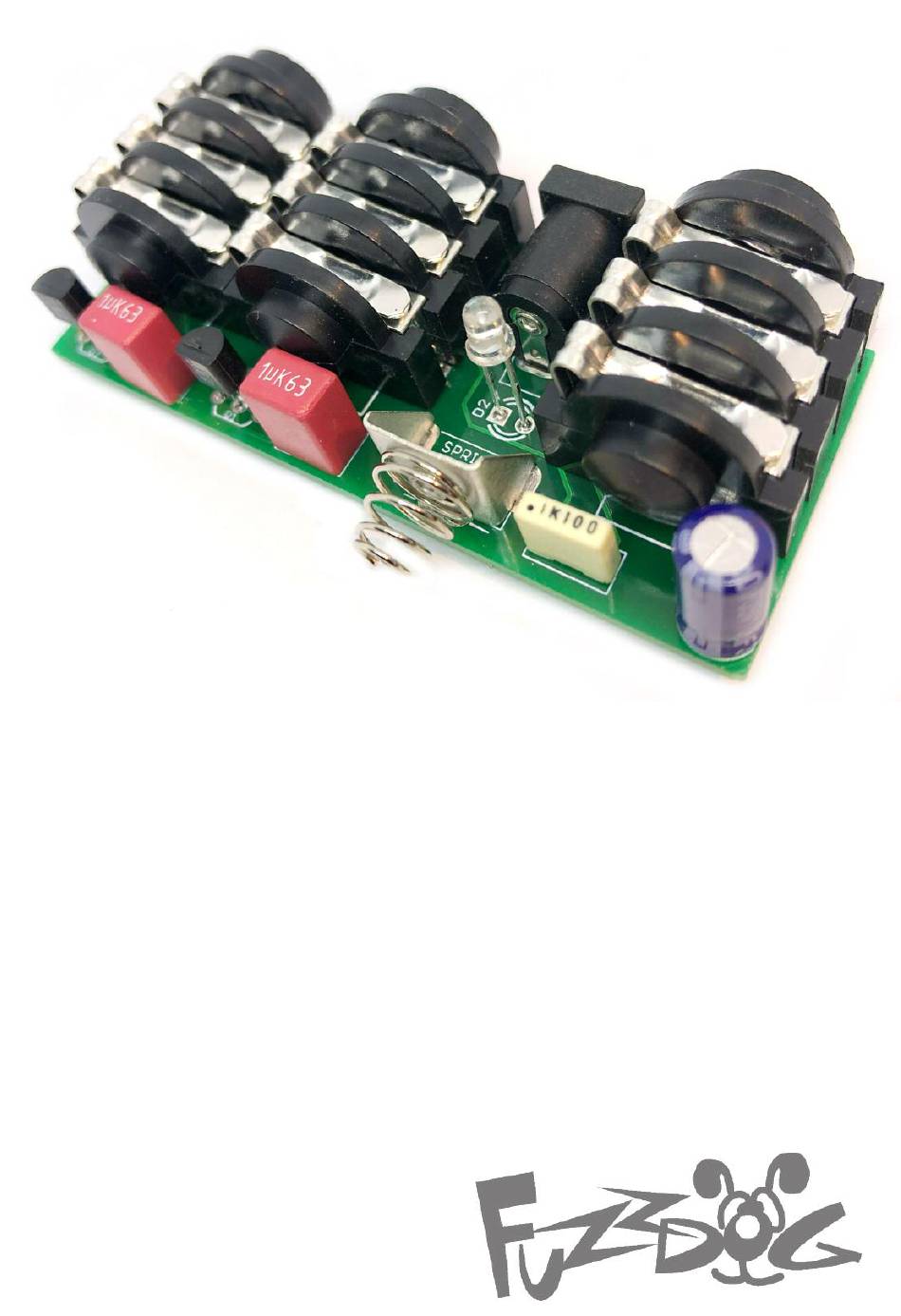

Important notes If you’re using any of our footswitch daughterboards, DOWNLOAD THE DAUGHTERBOARD DOCUMENT • Download and read the appropriate build document for the daughterboard as well as this one BEFORE you start. • DO NOT solder the supplied Current Limiting Resistor (CLR) to the main circuit board even if there is a place for it.
Page 3
Schematic + BOM 1u** 1N4001 LED* 100u elec 2N5457*** 100K 2N5457*** 100K 2K2 (CLR)* *Optional. You don’t have to include the LED if you want one less glowing light on your pedalboard. **The input cap can be altered to suit your needs. The original design has it at 100nf, which will normally allow all frequencies produced by a guitar into the circuit.
Page 5
SMALL OOPS! HACK REQUIRED Be very careful when soldering the FETs and LED. They’re very sensitive to heat. You should Of course, adding the battery spring to ground use some kind of heat sink (crocodile clip or the circuit to the enclosure is pure genius. reverse action tweezers) on each leg as you Forgetting to connect that spring to the ground solder them.
20.5mm 22mm This template is a rough guide only. You should ensure correct marking of your enclosure before drilling. You use this template at your own risk. Pedal Parts Ltd can accept no responsibility for incorrect drilling of enclosures. FuzzDog.co.uk...
