CBN CH8568 Quick Installation Manual

QUICK
INSTALLATION
GUIDE
STEP BY STEP
INSTRUCTIONS

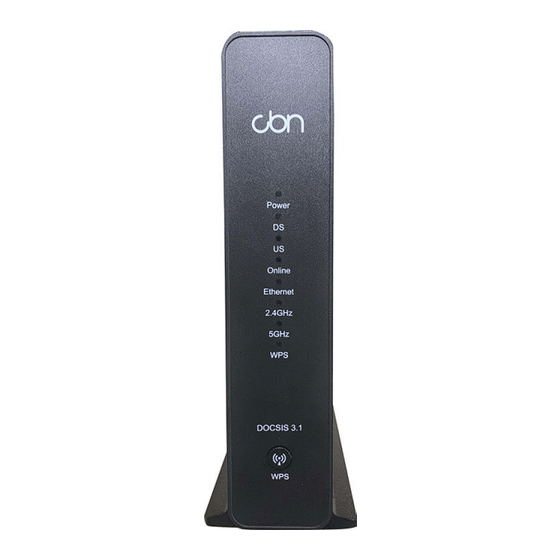

TO CONNECT CABLE INTERNET MODEM (CBN CH8568)
IMPORTANT!
INCLUDED
Wait until your
EQUIPMENT:
internet installation/
activation date and
time, then follow the
steps in this guide.
STEP
Connecting Coaxial Cable to the Modem
• Locate the coaxial cable in your home.
(connected to the cable outlet).
• Connect it to the cable port
(located on the back of the modem), using
3 clockwise rotations or until securely fastened.
Coaxial cable is not
included in the box
Coaxial cable
second end in the modem
Cable Port
CABLE MODEM
STEP
Power on your Modem
•
•
•
Locate Coaxial cable
wall outlet connection
in your home
WIRELESS (WI-FI)
INTERNET MODEM
(CBN CH8568)
ENGLISH
ETHERNET CABLE
Plug the modem power adapter into the back of the modem.
Connect the other end into the nearest power outlet.
The first time the modem is plugged in, allow up to 30 minutes
for the modem to connect. See the LED statuses in Step 3.
Power adapter is
included in the box
MODEM POWER ADAPTER
