zipwake IT300-S Installation Manual

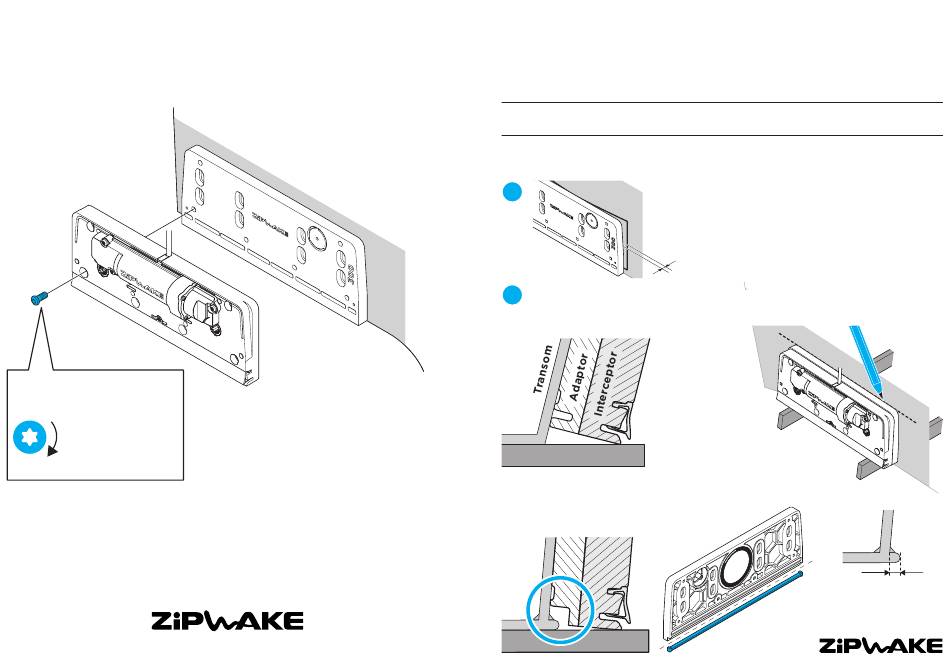

5. Mount the Interceptors

NOTE! Refer to the main Installation Guide for sealing,
cabling and final mounting!
NOTE! Use the screws
included in the adaptor kit
T30 (PT 6.0x27)
300 S: x6
450 S: x10
5 Nm (3.7 Ib-ft)
www.zipwake.com
INSTALLATION GUIDE
ADAPTOR FOR BTS TO ZIPWAKE AND/OR
HULLS WITH PROTRUDING BOTTOM PLATE

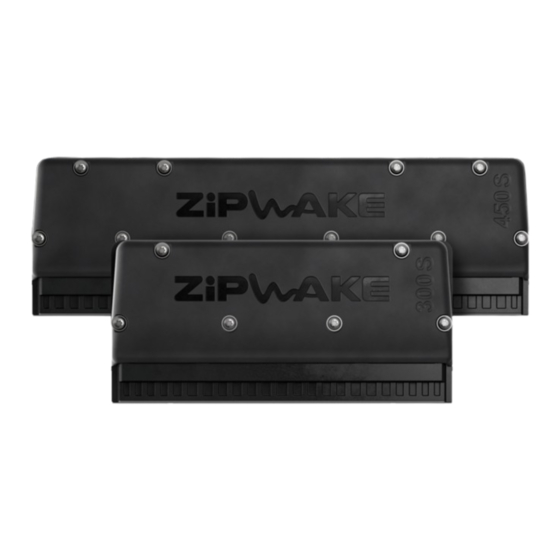

ZIPWAKE IT300-S & IT450-S
NOTE! Refer to the main Installation Guide when mounting!

1. Test to see how the adaptor fits on the transom

NOTE! Remove old sealant/dirt from the
1
transom ensuring a smooth and clean
surface for adaptor plate to mount to and
to ensure a good seal with o-ring.
Max 2 mm (0.08") between parallel planes.
2
Temporarily fit the interceptor back plate onto the adaptor.
Use straight edges to determine the adaptor position and
mark the top on the transom.
Straight edges
NOTE! Protruding hull:
Cut off the lower edge of the adaptor with
a right-angle grinder if necessary!
NOTE!
Max. 15 mm (0.59")
