Summary of Contents for Dover OPW PETROVEND PV300E

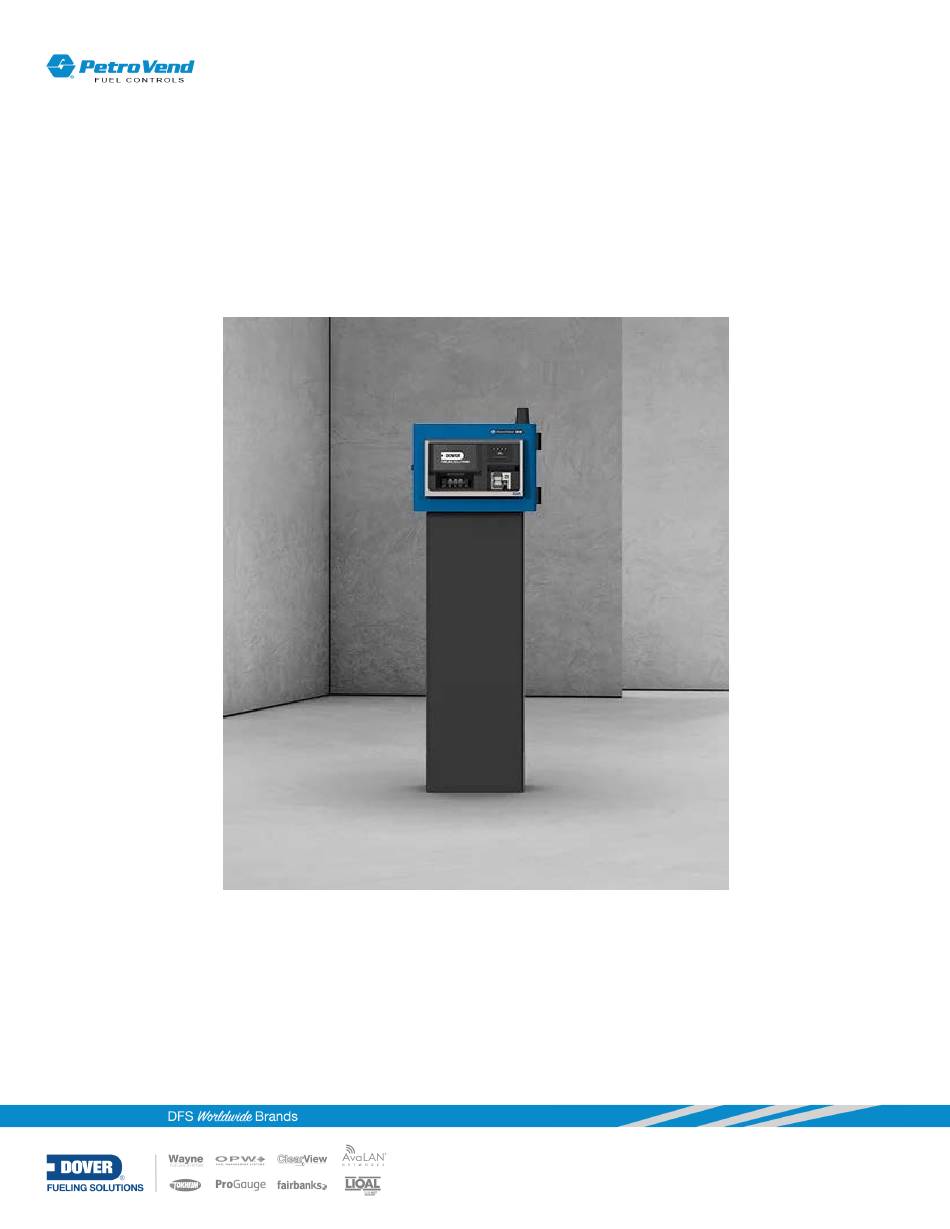

- Page 1 Petro Vend PV300E Quick Start Part Number: M1024-QS Revision: 1 PV300E...
- Page 2 PV300E Quick Start Component Connections M1024-QS_r1 PV300E Quick Start | Dover Fueling Solutions...
- Page 3 Door Assembly Connections to the 5-Port Router Power and Petro-Net Connections M1024-QS_r1 PV300E Quick Start | Dover Fueling Solutions...
- Page 4 Align the screws in the bottom of the printer unit with the holes of the factory installed bracket. Make sure that no cables get caught under the unit. When the screws are in the bracket holes, push the unit to the left until it clicks. M1024-QS_r1 PV300E Quick Start | Dover Fueling Solutions...
- Page 5 Connect the printer's Power Cable to the power connector on the left rear of the printer. There is a latch on the bottom of the bracket. Push this latch up to lock the printer in position. M1024-QS_r1 PV300E Quick Start | Dover Fueling Solutions...
- Page 6 Revisions M1024-QS Revision # Effective Software Version Key Changes 1847 1/22/2021 Initial Release Replace Zebra printer instructions 2048 6/22/2022 with Citizen printer. Reformat lay- out. M1024-QS_r1 PV300E Quick Start | Dover Fueling Solutions...
