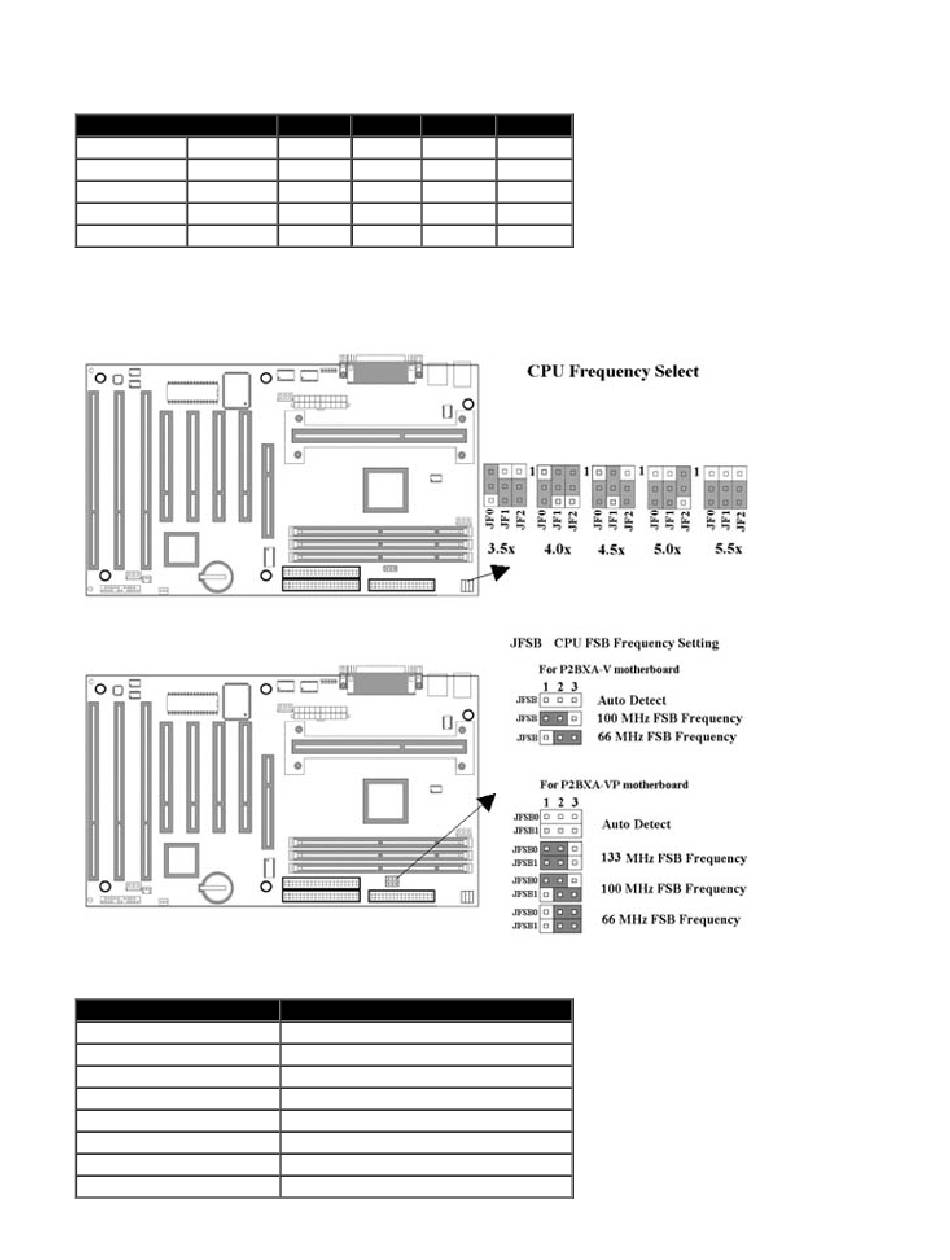

P2BXA-V, P2BXA-VP Quick Installation Chart
For your convenience, this chart lists all the CPUs supported by P2BXA-V or P2BXA-VP and their
corresponding jumper setting.
CPU Model
350/100
400/100
450/100
500/100
550/100
The Ratio of some latest CPUs are fixed by Intel, such as Celeron 366,400...etc. You can ignore the three
jumpers if you have this CPU on board and it will be auto detected by motherboard. Please check with the
CPU manufacturer or vendor for the CPU Ratio information.
Panel Connectors
JFRNT1 Connector
GREENLED
PWRLED
KEYLK
SPKR
RESET
IDELED
PWRBNT
SMISW
　
Ratio
JF0
233/66
3.5x
1-2
266/66
4.0x
2-3
300/66
4.5x
2-3
333/66
5.0x
2-3
366/66
5.5x
2-3
Function
Suspend Mode LED
Power LED
Keylock Switch
Speaker
Reset Switch
HDD LED
ATX Power Button Connector
Sleep Switch
JF1
JF2
2-3
2-3
1-2
1-2
1-2
2-3
2-3
1-2
2-3
2-3
