Summary of Contents for Sunway SPM-308L

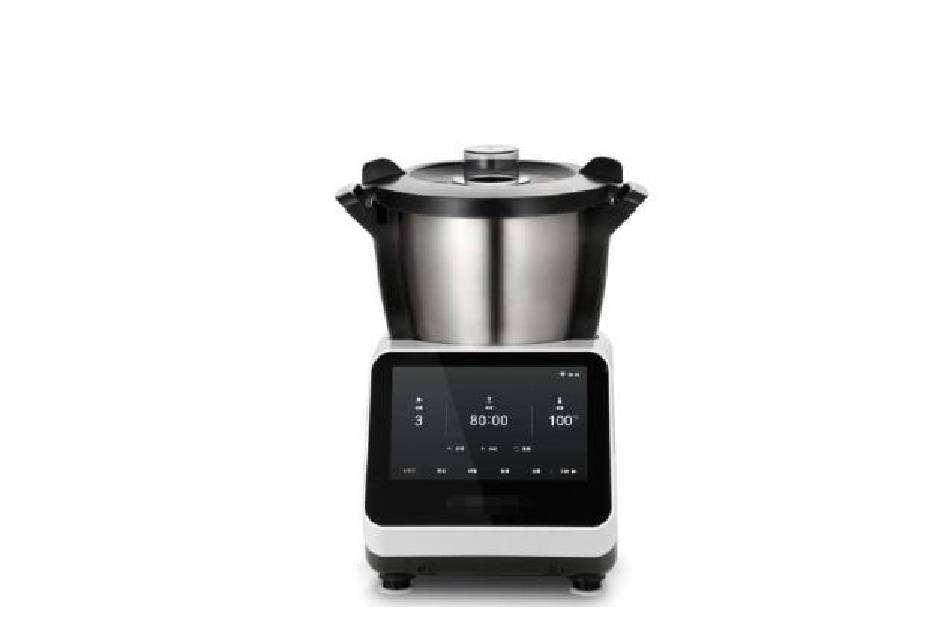

  • Page 1 SPM-308L User Manual...

  • Page 2: Table Of Contents

    Basic mode f. Preset mode g. Electronic scale mode h. Recipe mode i. Setting mode j. Internal mode k. Life test l. Abnormal operation 05/ How to Use Your Sunway Multi-Function Cooking Machine 06/ Cleaning Guide 07/ Troubleshooting 08/ Technical Parameters...

  • Page 3: 01/ Important Safety Instructions

    01. Important Safety Instructions For the sake of your safety, please read the following instructions. Even if you are familiar with this machine, please read these instructions carefully. Follow the instructions below to avoid fire, electric shock or injury. Before turning on the machine, please make sure that all the basic safety measures mentioned in the manual are taken for fear of fire, electric shock or injury. In order to ensure that all operations are carried out properly, please know about some limitations and potential hazards of this machine.
  • Page 4 Do not extend the power cord without authorization. Please place the machine in a dry place. Do not use the machine on or near flammable objects, such as curtains, towels or other flammable materials. After use or during cleaning, make sure the machine is turned off and the power has been disconnected. When disconnecting the power, hold the plug and pull it out of the socket.
  • Page 5 Do not put the mug or other parts in a sterilizer or a microwave oven. Make sure the food does not exceed the maximum capacity indicator. When using a steamer to steam food, make sure the food does not exceed the maximum capacity. Do not connect the machine to a timer or a remote control system.
  • Page 6 This machine can be used either at home or in any of the following places: – Food areas in stores, offices or other work environments – Farm houses – Hotel rooms, motels or other residential environments – Breakfast stores Warning Do not use the machine for some operations that are not mentioned in this user manual.
  • Page 7  Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

  • Page 8: 02/ Know About Your Sunway Multi-Function Cooking Machine

    02. Know About Your Sunway Multi-Function Cooking Machine Measuring cup Stainless steel mug Round steaming basket Steamer set Touch panel Wake-up button Blade set Dough stirrer Dough stirring rod...

  • Page 9: Mixing Mug

    03. Components and Accessories 1. Mixing mug The maximum capacity of the multi-function cooking machine is 3 liters, with markings both inside and outside, at 0.5 liter intervals. The capacity scale includes 0.5L\1L\1.5L\2L.2.5L.3L Warning: a. To ensure safe operation, the amount of ingredients shall not exceed the maximum scale of the mixing mug. When removing the mixing from the machine, take special care to avoid any spillage to prevent scald.
  • Page 10 4. Measuring cup The measuring cup can be used either alone or together with the lid of the mixing mug to facilitate to add ingredients to the mixing mug without stopping the machine. a. When the lid is installed on the mixing mug, ingredients can be added from the mouth of the measuring cup. b.

  • Page 11: Steamer Set

    6. Steamer set The steamer is ideal for steaming meat, fish and vegetables. It consists of three parts: The bottom layer is used to collect the steam and liquid generated in the preparation process. The middle layer can be used to contain ingredients. The top layer is the transparent steamer lid. Different foodstuffs to be cooked are placed separately.

  • Page 12: Dough Stirrer

    8. Blade sealing ring a. The blade sealing ring shall be installed, otherwise the food will leak out to damage the machine. b. Make sure the sealing ring is clean and properly installed before using the multi-function cooking machine. Check it regularly, and replace it if it is damaged.
  • Page 13 10. Stirring rod a. It is used to stir or mix food, or remove the round steaming basket. b. When the machine is running, the stirring rod can be placed from the lid hole. c. The disc of the stirring rod can prevent it from contacting the blade, so that it can be used when cooking, draining or cutting food. d.

  • Page 14: 04/ Touch Panel Operation

    04. Touch Panel Boot Animation To start the gradient display of logo...

  • Page 15: Boot Guide

    Boot Guide Picture To guide the user to trigger the dial to adjust the parameters...

  • Page 16: Stt Dial Function

    STT Dial Function STT (speed/time/temperature) dial: It is an upgrade of the form of buttons. The touch area in the form of a dial can meet the needs of users for convenient operation. The dial, which is concealed by default, pops up after the user clicks it. You can slide the dial up or down to adjust the parameters.
  • Page 17 Interface Icons Function icons Temperature: Set the target temperature of the machine When the speed is within the range of Levels 0-5, the temperature Speed: The speed of the machine can be set, and the blade can rotate adjustment range is 0-180℃. forward and backward When the speed is within the range of Levels 6-16, the temperature is 0.
  • Page 18 Interface Icons Prompt icons Status icons Meal: Meal size Time zone: The local time shall prevail; Enter the internal mode to set the time zone. Running time: The actual running time of the machine (the total time of Network: the operation steps) rather than the total cooking time of the recipe Connected: The WiFi icon appears in the upper right corner of the Star rating: The star rating for the recipe interface.
  • Page 19 Interface Icons Error prompts Emergency prompts Dry heating protection: [Currently, this function is removed.] Prompt of no main pot lid: Over-temperature at the bottom of the main pot will trigger the dry 1. When the main pot lid is not closed or is forcibly opened during heating protection, then a prompt box will pop up prompting [The operation, the [No main pot lid] icon will appear in the upper right temperature in the main pot is too high, so operation is disabled!], and the...

  • Page 20: Basic Mode

    Basic Mode Speed: 3. The status bar in the upper right corner of the interface will display the network 1. Click to display the dial: slide the dial up (to decrease speed) or down (to status; if it is not connected to the network, the icon will not appear; increase speed) to adjust the parameter.
  • Page 21 Basic Mode Time: Temperature: 1. Click to display the dial: slide the dial up (to decrease time) or down (to increase 1. Click to display the dial: slide the dial up (to decrease temperature) or down (to time) to adjust the parameter. increase temperature) to adjust the parameter.

  • Page 22: Preset Mode

    Preset Mode Kneading: Steaming: 1. Speed: Level 6 (not adjustable); 1. Speed: Level 0 (not adjustable); 2. Time: The factory default is 45 seconds (adjustable, up to 2 minutes); 2. Time: The factory default is 20 minutes (adjustable, up to 60 minutes); 3.
  • Page 23 Preset Mode Roasting: 1. Speed: Level 1, backward rotation (not adjustable); 2. Time: The factory default is 7 minutes (adjustable, up to 14 minutes); 3. Temperature: The factory default is 130℃ minutes (adjustable, up to 180℃); 4. Operation rule: Level 1, backward rotation for 5 seconds, then stop for 30 seconds…(in an cyclic manner until the end of the time) High temperature roasting of ingredients Kneading...

  • Page 24: Electronic Scale Mode

    Electronic Scale Mode Weighing mode: 1. Weigh ingredients and seasoning (the smallest unit of measurement is 5 grams) 2. Click “Zero clearing”, and the number of grams is 0; 3. If the weight exceeds 5,030 grams, a prompt box will pop up prompting “The electronic scale is overloaded, please take out some food”.
  • Page 25 Recipe Mode Category list: Search: 1. Recipe category; 1. Keyword search: 2. You can add or remove a recipe from Favorites; Chinese: Enter the words contained in the name of the recipe to obtain relevant 3. The user's favorite recipes can be viewed in the “Favorites” List; search results.
  • Page 26 Recipe Mode Recipe details: Cooking steps: 1. It is divided into three parts: Introduction/Ingredients/Description; 1. Recipe modes are divided into eight modes: CMD / AUTO / LOOP / STAEM / 2. The recipe can be added to Favorites; if you frequently click “Favorites”, a light KNEAD / ROAST / SCALE / STRING.
  • Page 27 Recipe Mode Text mode: Completion interface: 1. It clearly displays each step of the operation, so that users can read the ingredients 1. After the recipe is cooked, the system will enter the completion interface. Click “Finish”/”Close” to return to the recipe details page. and seasoning that need to be prepared;...
  • Page 28 Setting Login: Network: 1. It only supports internal mode account login. 1. When the device is connected to WiFi, the recipes/APP version can be updated in Internal mode account and password: sunwaydl/888888 real time. 2. Scan the QR code and send the string information to the background staff to 2.
  • Page 29 Setting System: About: 1. Slide the progress bar to adjust the volume of the machine. 1. Update the download information: number of recipes downloaded, APP version 2. Slide the progress bar to adjust the screen brightness. number, mac address 2. Display the download information and network prompts; 3.
  • Page 30 Setting Unit: Language: You can switch between Celsius and Fahrenheit. It currently only supports switching between Chinese and English. User Configuration Help User Configuration Help WIFI WIFI Celsius (° C) Chinese Fahrenheit (℉) English System System About About Unit Unit Privacy Privacy Language...
  • Page 31 Setting - Internal Mode About - Internal Mode: Line Drawing Function: 1. The red background means failing the test; the green background means passing 1. Lines appear where your finger goes; the test. 2. The screen can be rated as a good one if lines can be drawn smoothly on the 2.
  • Page 32 Setting - Internal Mode WiFi test: The larger the number next to the WiFi icon on the right side of the screen, the stronger the signal, and vice versa. The machine can also be checked for the availability of WiFi connection. User Configuration Help...
  • Page 33 Loop Mode (Life Test) Life test (Loop test): 1. After entering the life test, set the speed, time, temperature, and forward and backward rotation of blade, and click “Add steps”. Back Please add steps. (You need to add at least two steps for cyclic operation.) 2.
  • Page 34 Setting - Internal Mode Electronic scale calibration: Screen test: 1. Click “Calibration” 8 times to enter calibration; 1. Click anywhere on the screen, and the machine background color will switch to 2. According to the description information of the electronic scale, put weights of black, red, green, blue, yellow, white and gray in sequence with each click.
  • Page 35 Internal Mode - Initialize Recipes Initialize recipes: Clear recipes: Click [Clear recipes], and a prompt box will pop up prompting “All recipes will be The factory default setting is available with the initial recipes, which are cleared, please be cautious. Click OK to continue?”. pre-installed before delivery.
  • Page 36 Internal Mode - Set the Time Zone Set the time zone: Local time zone can be set (currently in GMT+8 Time Zone). User Configuration Help WIFI Set time zone System About Unit Privacy Back Language Home Presets Scale Recipes Settings...

  • Page 37: Abnormal Operation

    Abnormal Operation Anti-splash prompt: Dry heating protection (over temperature protection): [Currently, this function When the real-time temperature inside the machine is greater than 60℃, and the is removed.] running speed exceeds Level 7 gears, click “Start” and a prompt box will pop up Place the main pot (without water) in the machine, then adjust the temperature to prompting “The temperature in the pot is too high and there is a risk of splashing.
  • Page 38 Figure 4. Warning Sunway cooking machine has a safety switch between the lid and the machine body. If the lid is not closed, the machine will not work well. Note that the cooked food has a risk of scalding. Avoid forcibly opening of the lid when the cooking is just finished for fear of injury caused by food spillage due to excessive internal pressure.
  • Page 39 /Blade Set 5/ The blade can be removed for cleaning and maintenance. 6/ Before removing the blade, place a thick towel on the blade for protection after the blade is unfastened, as shown in Figure 1. 7/ Place the mug upside down and put it on the table flatly, as shown in Figure 2. Push the bottom blade locking knob counterclockwise to the unlocking position, as shown in Figure 3.
  • Page 40 Warning: Sunway multi-function cooking machine has two safety sensors on the lid and bottom of the mug. To use the machine optimally, the stainless steel mixing mug shall be properly installed on the main machine, otherwise the machine will detect improper installation of the mug and will not work.
  • Page 41 /During cooking, the cooking time, temperature and speed can be changed in the “DIY” interface, and there is no need to stop the machine. Warning If the blade speed slows down significantly during cooking, gradually increase the stirring speed to make the blade rotate smoothly. If it does not work, stop the machine, open the lid and the machine will be in the safe state.
  • Page 42 / Please pay attention to the following matters when using Turbo function to chop the food: When stirring ice or hard food, press the “TURBO” button alternately to achieve the effect you want. / Prevent scald caused by overheated food. Be careful to prevent scald caused by overheated food or liquid during cooking. In particular, when cooking at high temperature, the high pressure in the pot may cause food or liquid to spray out.
  • Page 43 Problem Possible Reason Solution The machine does not work. The stainless steel mixing mug lid is not placed Place the stainless steel mixing mug lid correctly until the icon properly. disappears. Please disconnect the power and turn off the machine, and restart E3 icon appears on the screen.
  • Page 44 Problem Possible Reason Solution Refer to the instructions in Chapter 5 on page 4. 1/Place the mixing mug on the machine body properly, as shown in the figure (be careful not to close the lid). 2/Press the mug down, and make sure the mug edge is lower than the mug buckle position of the machine.
  • Page 45 07. Cleaning Guide Thoroughly clean the machine before first use and after each use, including all parts that have been in contact with food. Make sure the machine cools down completely before cleaning. The bottom of the mug shall always be kept clean and dry. Be very careful when removing the blade inside the stainless steel mug, as the blade is very sharp.
  • Page 46 Always keep vigilant during use to avoid high temperature liquid spillage due to high pressure in the pot. / Sunway Products (Hong Kong) Co., Ltd. / Contact Mobile Phone: +86 136 0902 1505 www.sunwayind.com...
  • Page 47 Technical Parameters Certifications Rated power of the motor 1000 W Rated voltage 120V, frequency: 60Hz, maximum power:1400W Motor speed Up to 11,000 RBM Blade speed 80-11,000 RPM Speed level Levels 1 - 16 Heating power 1,200 W Working temperature Minimum: 37℃/Maximum:180℃ Machine body material Plastic Stainless steel with heating element and safety switch, maximum...
