Outlet
Inlet
2. Connect garden hose or 1-in pipe to pump inlet
and outlet.
4. Turn the switch to the 'off' position and plug
power into GFCI outlet. Turn the switch to the
'on' position to begin pumping.

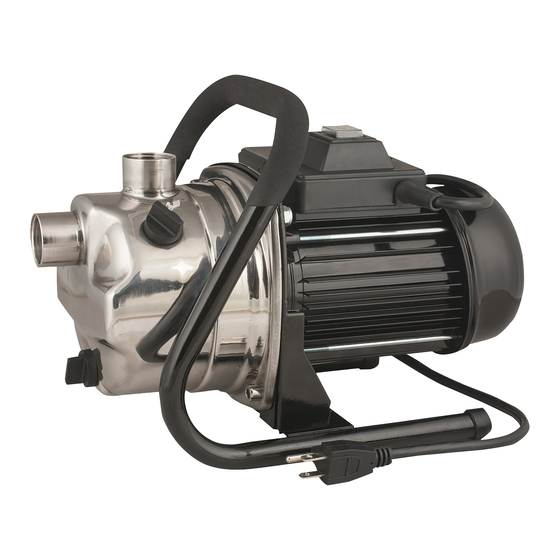

BOOSTER
UTILITY PUMP
MODEL HSPJ100
QUICK START GUIDE.
SEE INSTRUCTION
MANUAL FOR
COMPLETE DETAILS.
On/O
Switch

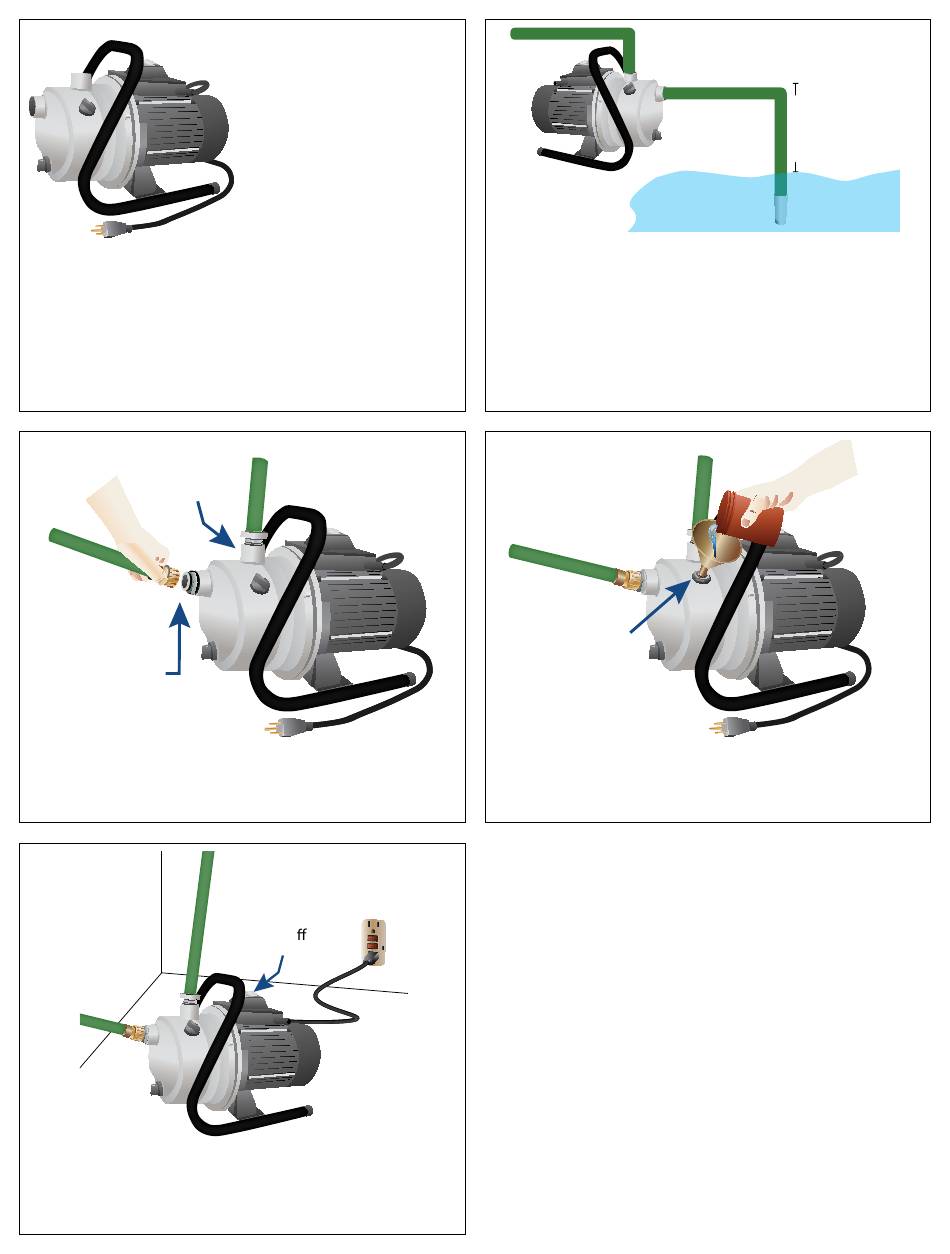

1. Set pump as close as possible to the water
source, keeping the vertical distance from the
water to pump as short as possible and no more
than 20 ft.
A foot valve with strainer (not provided) should
be installed at the end of the suction hose or
pipe to maintain prime during operation.
Priming Port
3. Remove priming nut on pump and fill cavity
with water. Reinstall priming nut.
WARNING:
FOR YOUR PROTECTION, ALWAYS DISCONNECT
PUMP FROM POWER SOURCE BEFORE HANDLING.
Printed in China
Maximum
20 Ft.
Vertical
Distance
Water Source
Foot Valve
SW1430 A
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Booster HSPJ100
- Page 1 Maximum 20 Ft. UTILITY PUMP Vertical Distance MODEL HSPJ100 Water Source Foot Valve 1. Set pump as close as possible to the water source, keeping the vertical distance from the water to pump as short as possible and no more QUICK START GUIDE.
- Page 2 PARA USO Water Source Foot Valve GENERAL MODELO HSPJ100 1. Coloque la bomba lo más cerca posible de la fuente de agua, manteniendo la menor distancia vertical posible desde el agua hacia la bomba, a no más de 6,09 metros.
