Page 1

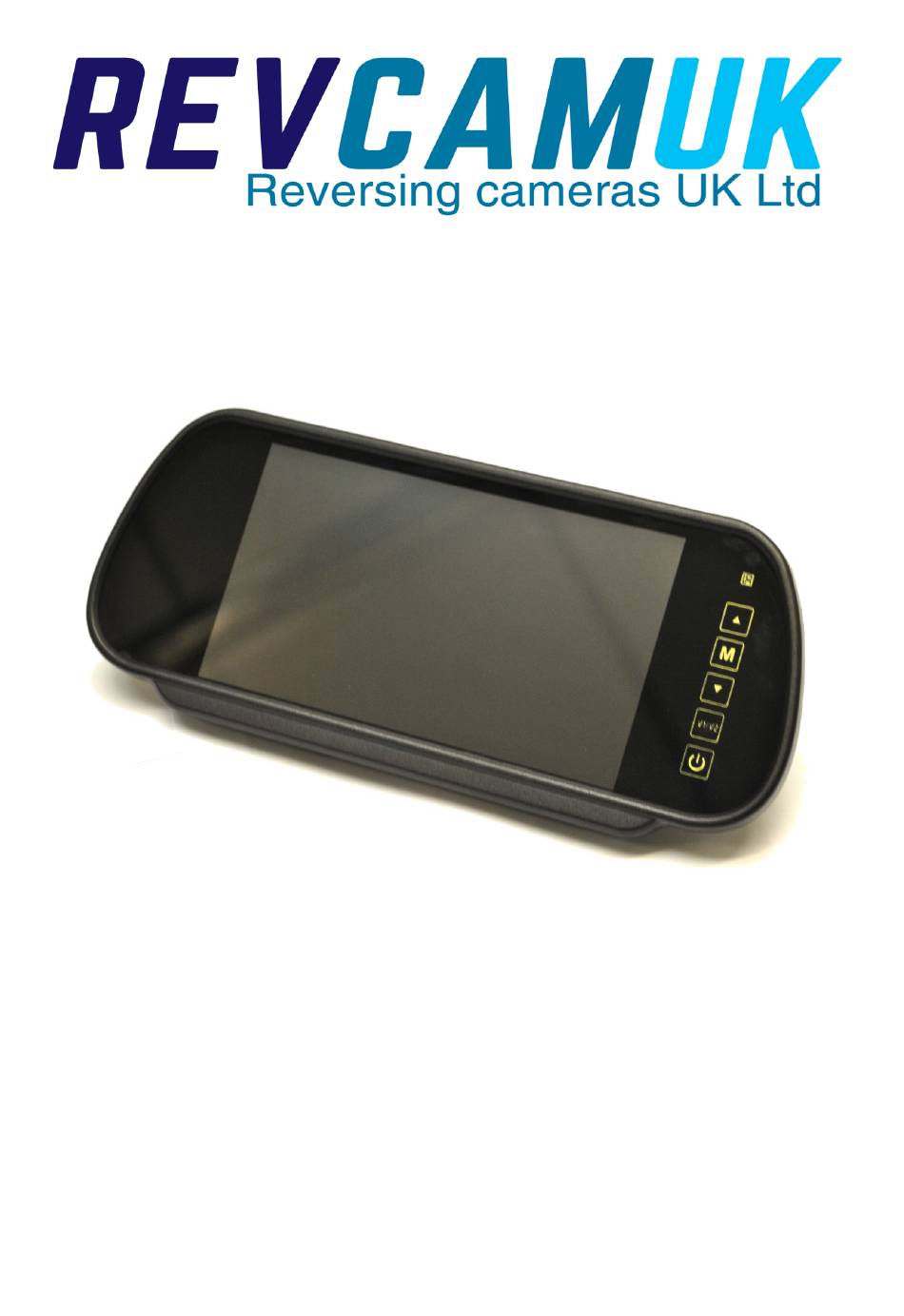

Instructions for our MON293GL Clip-over mirror monitors This booklet contains information about our mirror monitor and its menu system, explaining what the various options inside actually do (as the menu system is quite a bit more versatile than most of the basic mirror monitors menus).
Page 2
Technical Specifications 7” Colour LCD screen Power supply: 12V/24V Power Consumption: 8.64W or lower Digital Screen Resolution: 800 x3(RGB)x480 Operating Temperature: -10C to +65C 2 Inputs PAL/NTSC/AUTO Rotation/Mirror on both channels Full function Remote Control Wiring Harness Layout We often get calls from people who have connected the green trigger wire to an ignition source because they want it to come on all the time, this then locks out the buttons and keeps it on channel 2.
Page 3
Choosing a power supply and earthing We recommend that you use a switched with ignition power supply (either 12V or 24V it will automatically work on either). We advise against going directly to the vehicle battery, or on a permanent supply as you will dis- charge your battery even when the monitor is powered down as well as the equipment being at risk due to the voltage fluctuations experienced when the alternator kicks on/off.
Page 4
How to use the Menu System The menu system is easy to nav- igate through using the top three buttons on the monitor. To enter the menu system press the M button. You will now see the options as shown in the im- age to the right.
Page 5
Language Sub Menu Select from the following options, these are in order should someone have changed for you already. English, French, German, Spanish, Portuguese, Italian, Dutch, Return, Ex- Mirroring Sub Menu This function will only be used by a few people with a specific need, 99% of our customers can ignore it.
Page 6
Park Setup (Guidelines) The monitor can add guidelines to the picture when the trigger wire has power (ie when reverse is selected). If you wish to have guidelines shown then before continuing ensure your camera is plugged in to Channel 2 / V2 and the green trigger wire is connected to the reverse light feed.
Page 7
To adjust the values of the numbers assigned to the lines, go back to the main park setup menu and enter the line number menu. To modify values use the up and down keys to change the number to the required value and the Menu button to go to the next number to adjust.
Page 8
Fitting the monitor over the mirror The monitor is designed to clip over your existing interior mirror, on the rear it has two spring loaded clips and two fixed upper clips. First you must pull down the two lower clips, you will feel the springs trying to pull the clips up and as you do this.
