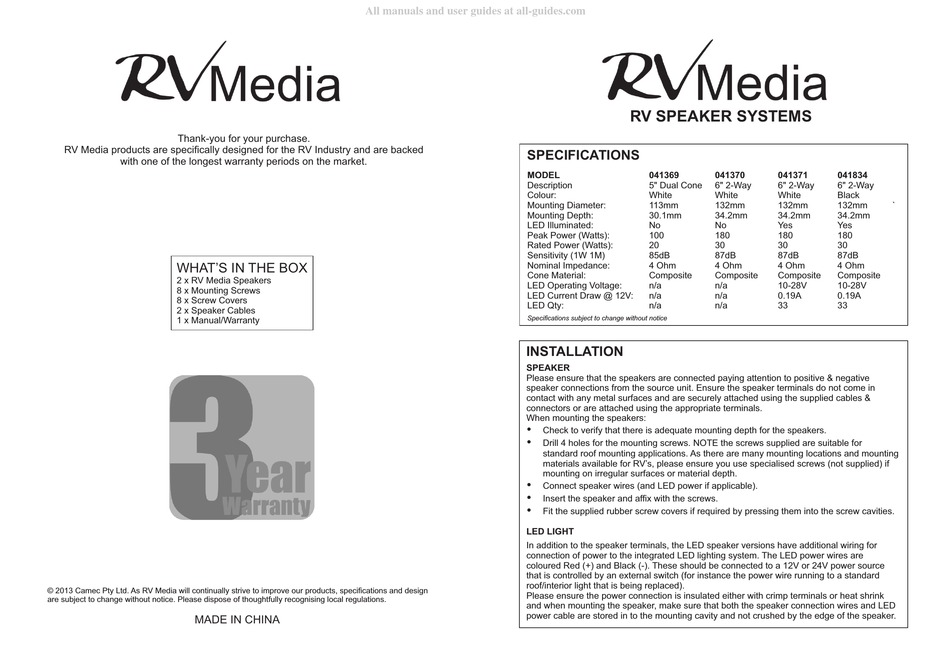

RVMedia 041369 Quick Start Manual

Thank-you for your purchase.
RV Media products are specifically designed for the RV Industry and are backed
with one of the longest warranty periods on the market.
WHAT'S IN THE BOX

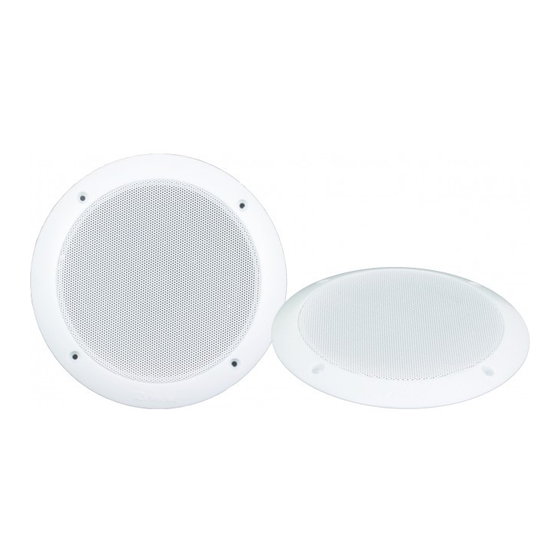

2 x RV Media Speakers
8 x Mounting Screws
8 x Screw Covers
2 x Speaker Cables
1 x Manual/Warranty
© 2013 Camec Pty Ltd. As RV Media will continually strive to improve our products, specifications and design
are subject to change without notice. Please dispose of thoughtfully recognising local regulations.
MADE IN CHINA
All manuals and user guides at all-guides.com
SPECIFICATIONS
MODEL
Description
Colour:
Mounting Diameter:
Mounting Depth:
LED Illuminated:
Peak Power (Watts):
Rated Power (Watts):
Sensitivity (1W 1M)
Nominal Impedance:
Cone Material:
LED Operating Voltage:
LED Current Draw @ 12V:
LED Qty:
Specifications subject to change without notice
INSTALLATION
SPEAKER
Please ensure that the speakers are connected paying attention to positive & negative
speaker connections from the source unit. Ensure the speaker terminals do not come in
contact with any metal surfaces and are securely attached using the supplied cables &
connectors or are attached using the appropriate terminals.
When mounting the speakers:

Check to verify that there is adequate mounting depth for the speakers.

Drill 4 holes for the mounting screws. NOTE the screws supplied are suitable for
standard roof mounting applications. As there are many mounting locations and mounting
materials available for RV's, please ensure you use specialised screws (not supplied) if
mounting on irregular surfaces or material depth.

Connect speaker wires (and LED power if applicable).

Insert the speaker and affix with the screws.

Fit the supplied rubber screw covers if required by pressing them into the screw cavities.
LED LIGHT
In addition to the speaker terminals, the LED speaker versions have additional wiring for
connection of power to the integrated LED lighting system. The LED power wires are
coloured Red (+) and Black (-). These should be connected to a 12V or 24V power source
that is controlled by an external switch (for instance the power wire running to a standard
roof/interior light that is being replaced).
Please ensure the power connection is insulated either with crimp terminals or heat shrink
and when mounting the speaker, make sure that both the speaker connection wires and LED
power cable are stored in to the mounting cavity and not crushed by the edge of the speaker.
RV SPEAKER SYSTEMS
041369 041370 041371
5" Dual Cone 6" 2-Way 6" 2-Way
White White White
113mm 132mm 132mm
30.1mm 34.2mm 34.2mm
No No Yes
100 180 180
20 30 30
85dB 87dB 87dB
4 Ohm 4 Ohm 4 Ohm
Composite Composite Composite
n/a n/a 10-28V
n/a n/a 0.19A
n/a n/a 33
041834
6" 2-Way
Black
132mm `
34.2mm
Yes
180
30
87dB
4 Ohm
Composite
10-28V
0.19A
33
