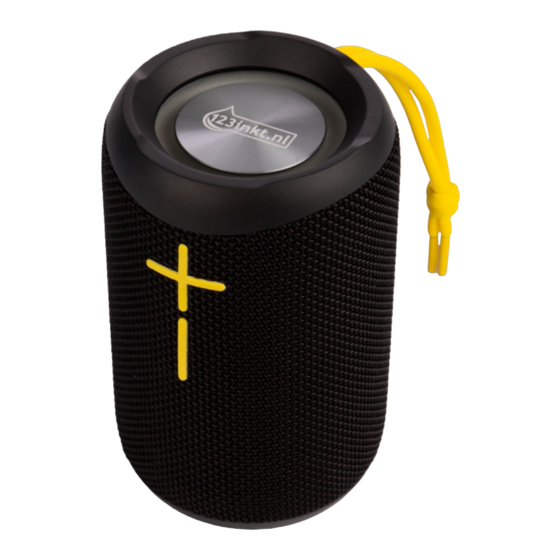

Manual 123inkt Bluetooth speaker G100
Thank you for purchasing the 123inkt bluetooth speaker G100. Please read this user manual carefully before using
the speaker, to ensure correct operation.
Important safety instructions
•
Keep speaker away from any source of heat
•
Be careful when charging the speaker:
o
Charging for too long can damage the battery life.
o
Fully charge the battery the first time you use the speaker.
•
If the battery is low, the indicator light will flash and you will hear a voice prompt "low battery". In this case,
recharge the battery promptly.
•
If you are not using the speaker for a long time, charge it at least once a month to avoid damaging the
lithium battery.
•
Set the volume to a reasonable level to avoid disturbing others.
Features
•
Bluetooth 5.0 stereo, playing music & mobiele hands-free communication.
•
Two aluminum passive radiators (top and bottom) will shake with the music.
•
AUX-in: works as an external speaker by connecting it to the audio source of a computer, mobile,
PSP/MP3/MP4 etc.
•
USB Flash Disk playing music, supports the following music formats:
o
MP3/WAV/WMA/FLAC/APE, capacity up to 32G.
•
Charging function: charging functions can be achieved through the USB cable.
•
Tws (True Wireless Stereo) Function: two same speakers can group and play music at the same time.
•
Voice guidance.
•
Two lateral passive radiators support colorful ambient lighting. 8 colors change every 3 seconds.
•
IPX7 waterproof.
Technical data
•
Bluetooth version: JL AC6925B 5.0
•
Output: 9W
•
Impedance: 3Ω
•
Driver: 80mm*40mm driver*1
•
Passive radiator: *2
•
Battery: 3.7V 2000 mAh
•
Size: 128 x 79 x 79 mm
•
AUX-in: 3.5 mm
•
Playing time: 6 hours at 50% volume
•
Charging time: 4 hours with DC 5V 1A input
•
Net weight: 335g
Package contents
Bluetooth speaker G100, type C cable, AUX-in cable, user manual.
.
Advertisement
Table of Contents
Summary of Contents for 123inkt G100
- Page 1 Manual 123inkt Bluetooth speaker G100 Thank you for purchasing the 123inkt bluetooth speaker G100. Please read this user manual carefully before using the speaker, to ensure correct operation. Important safety instructions • Keep speaker away from any source of heat •...
- Page 2 Buttons and inputs Long press: power on/off Short press: mode switching Charging indicator Short press: play/pause/mute Press twice: turn ambient lighting on/off (only in USB/AUX-in/FM radio mode) Mobile hands-free: Long press: reject phone call Short press: answer/end phone call Press twice: return last call Bluetooth/TWS indicator Long press: disconnect the bluetooth connection / clear the TWS pairing memory Short press: activate the bluetooth mode...
- Page 3 Turn on two 123ink G100 speakers and switch both speakers to bluetooth mode. Press the button on one of the speakers twice. This speaker will search for the other 123ink G100. During the search, the TWS indicator flashes red and blue light alternately. After that, the two devices...
- Page 4 Bluetooth device. 3. If the two speakers were previously paired with a third G100 speaker, you must clear the pairing memory first. Otherwise, the speakers cannot pair with each other. Long press the button on both speakers to clear the TWS pairing memory.
- Page 5 Make sure the speaker is in AUX-in mode when using this feature. Short press: play/pause/mute music Intelligent energy saving function The speaker automatically turns off in the following cases: In bluetooth mode: it takes more than 20 minutes to pair the speaker In bluetooth mode: the speaker does not play music for more than 20 minutes In any mode: when the speaker is paused/muted for more than 20 minutes Please note: long press the...
