Talley KETHREIN 86010148V01 Manual

Remote Control Unit (Rcu)
Questions? Visit www.Talleycom.com or contact Talley at 800.949.7079 or Sales@Talleycom.com today.

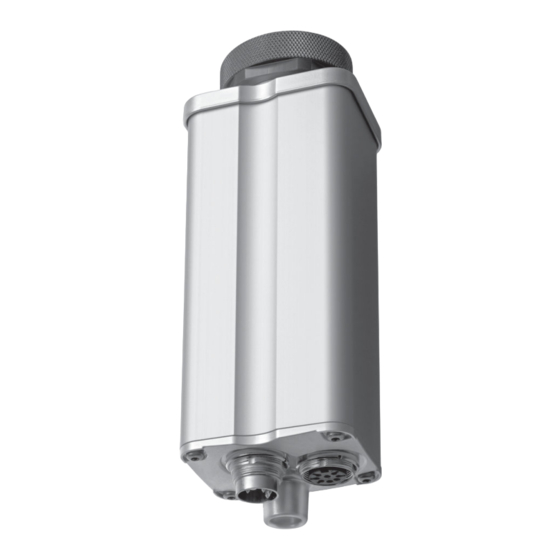

Remote Control Unit (RCU)for Kathrein base station antennas with adjustable electrical down-tilt
and appropriate mechanical interface.
Compliant to AISG 1.1 and 3GPP/AISG 2.0
•
Compact size
•
Prepared for automatic configuration and calibration
•
Type No.
Protocols
1)
Logical interface ex factory
Input voltage range
Power consumption
Connectors 2)3)
Hardware interfaces
Adjustment time (full range)
Adjustment cycles
Temperature range
Protection class
Lightning protection
Housing material
Weight
Packing size
Dimensions (H x W x D)
1) The protocol of the logical interface can be switched from 3GPP/AISG 2.0 AISG 1.1 to with a vendor
specific command. Start-up operation of the RCU is only possible in a RET system supporting 3GPP/
AISG 2.0!
The protocol can also be changed as follows: 3GPP to AISG 1.1: Enter "AISG1" into the additional data
field "Installer's ID" and perform a layer 2 reset or a power reset. AISG 1.1 to 3 GPP: Enter "3GPP" into
the additional data filed "Installer's ID" and perform a layer 7 reset or a power reset. After switching the
protocol any other information can be entered into the "Installer's ID" field.
Please note:
If the Primary of the RET system doesn't support the standard of the 'logical interface ex factory', the RCU
must be switched to the appropriate standard of the Primary before installation. Please contact Kathrein for
further information.
2) The tightening torque for fixing the connector must be 0.5 – 1.0 Nm. The connector should be tightened
by hand or using the torque screwdriver (85010080)as described in the connecting cable data sheet
(85010007, ...)
3) The RCU gets the information stored in the antenna after power on automatically if a corresponding
antenna is used. In this case, it is not necessary to configurate the RCU manually.
Standards:
Certification:
Scope of supply:
8 | 0.31
•
•
compliant to AISG 1.1 and 3GPP/AISG 2.0
V
W < 1 (stand by); < 10 (motor activated)
2 x 8 pin connector according to IEC 60130-9; according to AISG
Daisy chain in: male; Daisy chain out: female
power supply (pin 1, pin 6); DC return (pin 7);
sec 40 (typically, depending on antenna type)
°C
Profile: Aluminum anodized; cover: Aluminum die cast coated
kg
Ibs
mm
inches
mm
inches
EN 60950-1 (Safety)
EN 60950-22 (Safety – Equipment installed outdoor)
EN 55022 (Emission)
EN 55024 (Immunity)
ETS 300019-1-4 (Environmental)
st
UL 60950-1; 1 edition
CE, FCC
Remote Control Unit
Assembly paste
173.6 | 6.8
All dimensions in mm | inches
All specifications are subject to change without notice.
Daisy Chain feasibility
Suitable for operation under outdoor conditions
86010148
V01
3GPP/AISG 2.0
10 ... 30 (pin 1, pin 6)
RS 485A/B (pin 5, pin 3);
according to AISG / 3GPP
> 50,000
–40 ... +60
IP 24
AISG interface (each pin)
2.5 kA (10/350 μs)
8 kA (8/20 μs)
0.5
0.99
245 x 93 x 102
9.6 x 3.6 x 4
177.5 x 59.5 x 49.5
7.0 x 2.3 x 1.9
49.5 | 1.95
33.2 | 1.27
Daisy chain in Daisy chain out
(male) (female)
Bottom view of RCU
86010148 Page 1 of 5
