Summary of Contents for Heritage Audio Baby R.A.M.

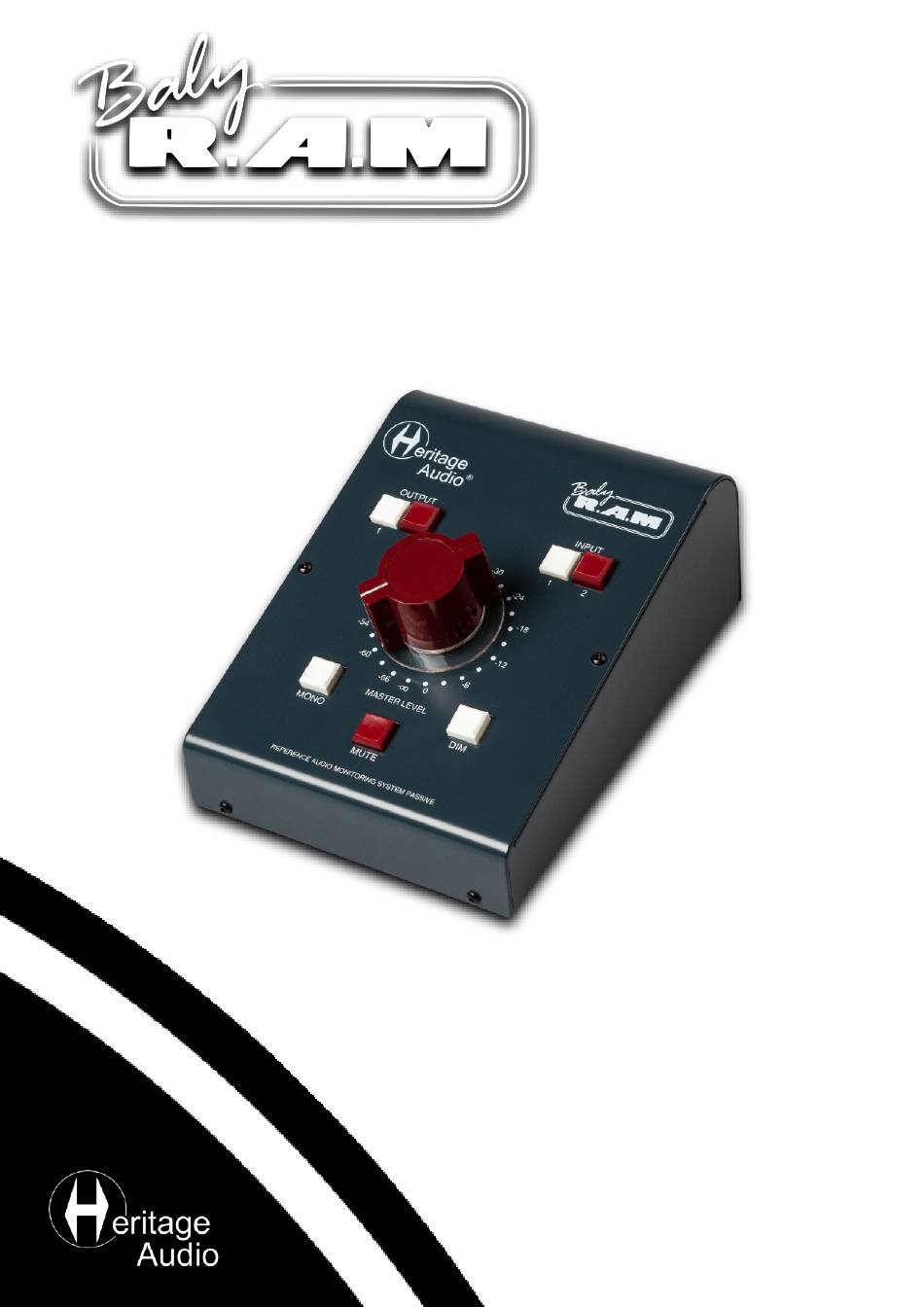

- Page 1 DUAL CHANNEL MONITOR SYSTEM PASSIVE RAM SYSTEMS USER MANUAL August/2022 Rev. 1.0.
-
Page 2: Table Of Contents
Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission. -
Page 3: Description
DESCRIPTION Heritage Audio’s Baby RAM is the ultimate passive-monitoring system, delivering the most transparent signal with the best stereo imaging of any other passive designs available! The Baby RAM is a boutique, passive-circuit monitor controller inspired by classic European console designs. A Baby RAM is the ultimate controller for total transparency —... -
Page 4: Getting Started
GETTING STARTED FRONT OUTPUT ATTENUATOR MONO SWITCH INPUT DIM SWITCH MUTE SWITCH Selects either Output 1 or Steps through the volume Collapses the signal from Selects either Input 1 or Reduces output by -20 dB Completely eliminates the Output 2 range in 3 dB increments Stereo to Mono Input 2... -
Page 5: Applications
APPLICATIONS 2 IN/2 OUT MONITORING ACTIVE SPEAKER 1-L ACTIVE SPEAKER 1-R PASSIVE SPEAKER 2-L PASSIVE SPEAKER 2-R POWER AMPLIFIER SPEAKER OUT SPEAKER OUT LINE INPUT LINE INPUT LINE INPUT 1 L & R LINE LINE OUT 1 LINE INPUT 2 OUT 2 L &... -
Page 6: Specifications
SPECIFICATIONS • Unlimited Headroom: Being a passive device, it is only limited by the preceding and following devices´s headroom. • Balanced and floating inputs and outputs: Inputs and Outputs TRS JACKs, unbalanced compatible. • 24 Step Passive Attenuator: In 3 dB steps for sub-tenth dB precision between left and right channels. •... -
Page 7: Trouble Shooting
TROUBLE SHOOTING PROBLEMS SOLUTIONS There is no sound coming from my Baby RAM. Make sure the ´MUTE´ button is not pressed. The audio from my Baby RAM seems less open than the Double check that you have not accidentally pressed the audio directly from my DAW. -
Page 8: Warranty Statement
2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date. -
Page 9: Recall Sheets
RECALL SHEETS... - Page 10 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
