- Page 1 EASY-BIKE & EASY-BIKE KID Instruction Manual 2020.12...
- Page 2 Before using or making adjustments on this device, carefully read the content of this instruction manual. If needed, please contact an authorized dealer or the manufacturer at the following address: OFF CARR S.r.l. Via dell’Artigianato II, 29 35010 Villa del Conte (Padova) Italy Tel. +39 049 9325733 – Fax +39 049 3725734 e-mail: offcarrffcarr.com –...

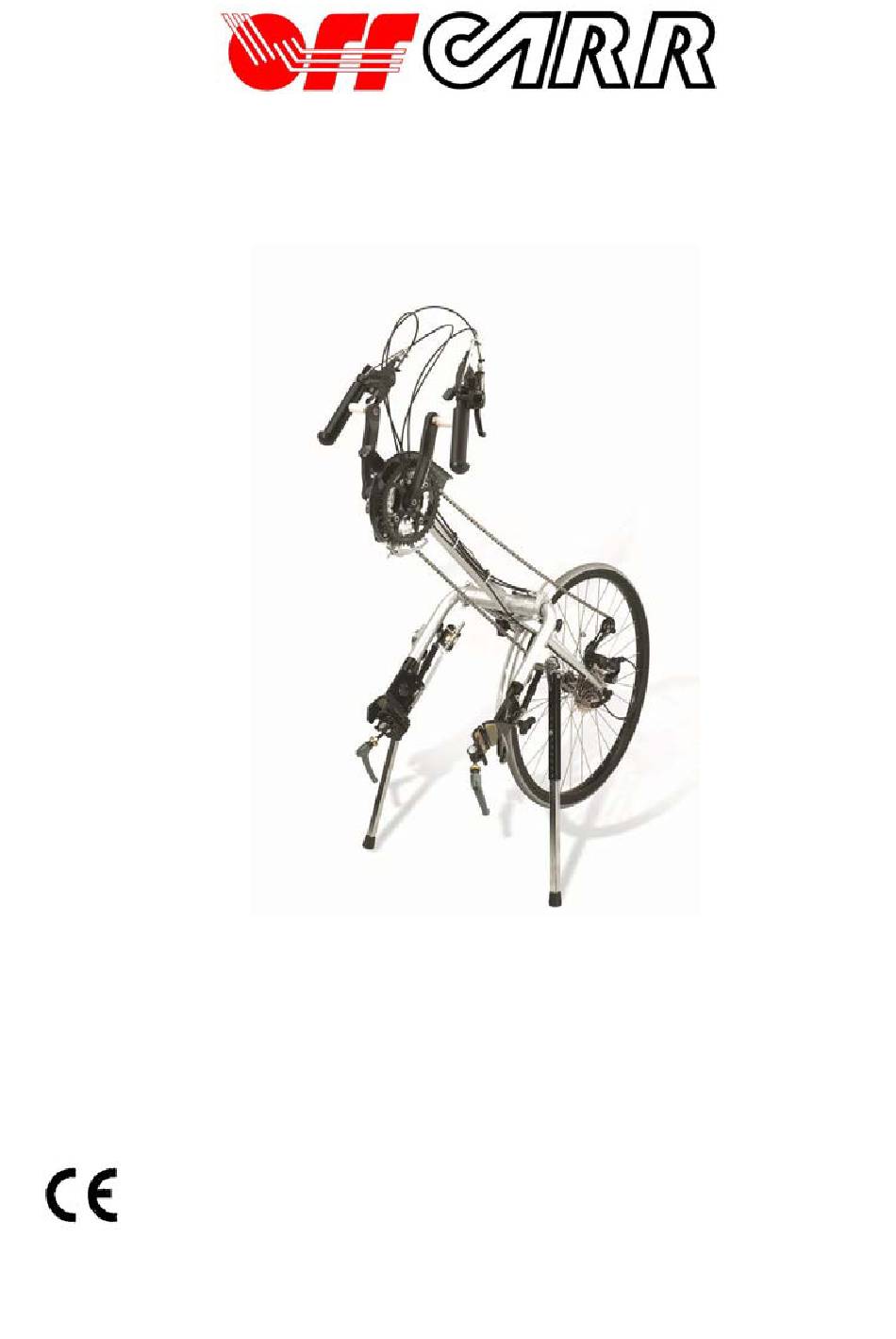

- Page 3 Introduction EASYBIKE is a non-invasive medical device, designed manufactured compensate or attenuate a physical handicap. The use of the bike or its components is forbidden for any purposes other than those indicated. Description Easybike is a unicycle which can be fitted to any wheelchair with not detachable foot-rests.
- Page 4 PACCO PIGNONI A 9 RAPPORTI GUARNITURA A 3 RAPPORTI PINZA FRENO COMANDI CAMBIO GUARNITURA PIGNONE 9 SPEED SPROKET 3 SPEED CRANK SET CALIPER BRAKE HANDLE SHIFT CONTROLS CRANK SET SPROKET...
- Page 5 Features There are different Easybike models: o EASYBIKE-27: 27-gear with dual gear shifting units and double wire brake levers. o EASYBIKE-8F & EASYBIKEKID-8F: 8-gear built-in hub with Thumb Control shifting unit or Revoshift and single wire lever. o EASYBIKE-8CR & EASYBIKEKID-8CR: 8-gear built-in hub with Revoshift control and coaster brake.
-
Page 6: Preparation For Use
Preparation for use The Easybike is supplied configured according with the order form selection to ensure the most convenient setup to match the customer needs. In order to be properly connected to a specific wheelchair, therefore, some additional adjustments may be required. Please follow this manual instructions perform the final set-up of the device to match your wheelchair. - Page 7 If necessary adjust the clamp rotation in the following way: o Loosen the highlighted nuts (as in the picture) o Rotate the clamp in the chosen position o Fa sten the nuts Nuts...
- Page 8 Once the clamp is placed on the chosen position proceed as follows: o Loosen the fixing clamp of the fastening clamp o Extend the spring release lever...
- Page 9 o Rotate the clamp and place it on the optimal angle for the wheelchair fastening...
- Page 10 Stand the Easybike on the proper stands in front of the wheelchair. o Place the wheelchair front tubes very close to the Easybike fastening clamps. o Make sure the fastenings clamps are open. o Make sure the latch is off. o Make sure the fastening clamps are perfectly matching the wheelchair front frame tubes and eventually, adjust the clamps position, if needed.
- Page 11 COLLARE CHIUSO COLLARE APERTO CLOSED LOCKING COLLAR OPEN LOCKING COLLAR...
- Page 12 o Pull towards the floor the knob for the release of the clamp lever o Use the handle to push up and forward the front frame of the Easybike up to the fastening position of the clamps. 5 cm...
- Page 13 o Fix the fixing clamp of the fastening clamp o Close the kickstand of the Easybike 5 cm...
- Page 14 Unfastening the EASYBIKE from the wheelchair o Open the kickstand of the Easybike 5 cm 5 cm...
- Page 15 o Loosen the fixing clamp of the fastening clamp o Extend the spring release lever...
- Page 16 o Use the handle to push up, forward and then downward the front frame of the Easybike up to the unfastening position of the clamps, then slowly release the push going back to the closure position of the Easybike. 5 cm...
- Page 17 o Open the fastening clamps and then move away the wheelchair to end the unfastening.
- Page 18 Eventually adjust the fastening clamps if necessary, as follows: 1. The fastening clamps have to be open. 2. The latch has to be off. 3. Loosen the locking collars which fix the arms on the central body to adjust the width of the fastening arch. 4.
- Page 19 o Before fastening the clamps on the front frame tubes, secure the locking collars making visually sure that arms symmetrically inserted in the body of the Easybike. o Fasten the clamps on the wheelchair front frame, fix properly each handle of the clamps.
- Page 20 Please consider that the user arms have to be almost completely straight in the maximum pedal extension position. Therefore, if the Easy-bike handle cranks are too low and close to the body, or too high and therefore distant, it means that the user cannot perform a complete, correct and smooth rotation.
- Page 21 Note: o To obtain a correct tilt set-up of the bike, the arms must be symmetrically adjusted. A pen mark is suggested as reference point on the arm teeth. Each teeth step determines a rotation of 8° of the arm. Adjusting the lift of the wheelchair When the Easybike is in use, it is suggested a distance between the front castors and the floor of about 5 cm:...
-
Page 22: Maintenance & Checks
Easybike. o Before any trip, please check the brake efficiency. o It is recommended to refer only to authorized and qualified personnel to perform extraordinary maintenance programs, adjustments, components replacement on the Easy-bike. - Page 23 Using the Easy-bike To grant safe travels and to ensure a long and efficient life of the Easybike, please keep an eye on the following aspects: o When in use the Easybike must be correctly hooked to the wheelchair. o When in use, the adjustable arm and clamps must be firmly tightened.
-
Page 24: Technical Service
Technical service For any problems, fault or breakage please inform immediately the authorized dealer supplying the following indications: 1. model 2. serial number 3. any reference or order number, eventually available on the original order form. 4. fault description 5. Dealer... -
Page 25: Warranty Terms
Warranty terms The Easybike frame is guaranteed for 3 (three) years from the delivery date. Register your wheelchair on our website www.offcarr.com. The label showing the serial number, the manufacturer address and the CE symbol cannot be removed for any reason to preserve the warranty validity. Parts subject to normal wear and tear are not covered by the warranty, unless wear is caused by evident manufacturing fault. -
Page 26: Packaging, Shipping And Delivery
Packaging, shipping and delivery All the OFFCARR products are shipped in closed cardboard cases to protect them from bumps and dust. The package includes the Easybike configured according with the purchased order form, this Instruction manual and a tool kit. The Easybike must be transported by trucks that protect it from atmospheric agents, as specified on the packaging box. -
Page 27: Materials Differentiation
Contact your dealer for a complete EASYBIKE disposal. OFF CARR s.r.l. reserves the right to make improvements and/or changes on its products, at any time without prior notice, with respect of the device features, suitability, certifications, warranty contract and availability of spare parts...
