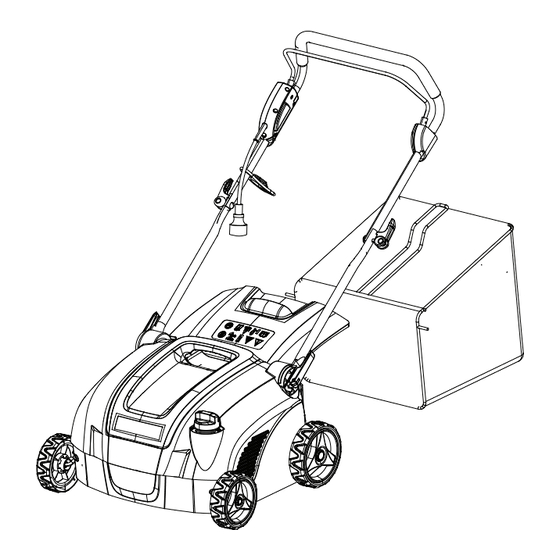

Electric Scarifer & Lawn Dethatcher
Manual
WARNING:
Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety
rules and other basic safety precautions may result in serious personal injury.
Save these instructions in a safe place and on hand so that they can be read when required.
Keep these instructions to assist in future servicing.
REV 05/19/21
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Super Handy GUT080
Summary of Contents for Super Handy GUT080

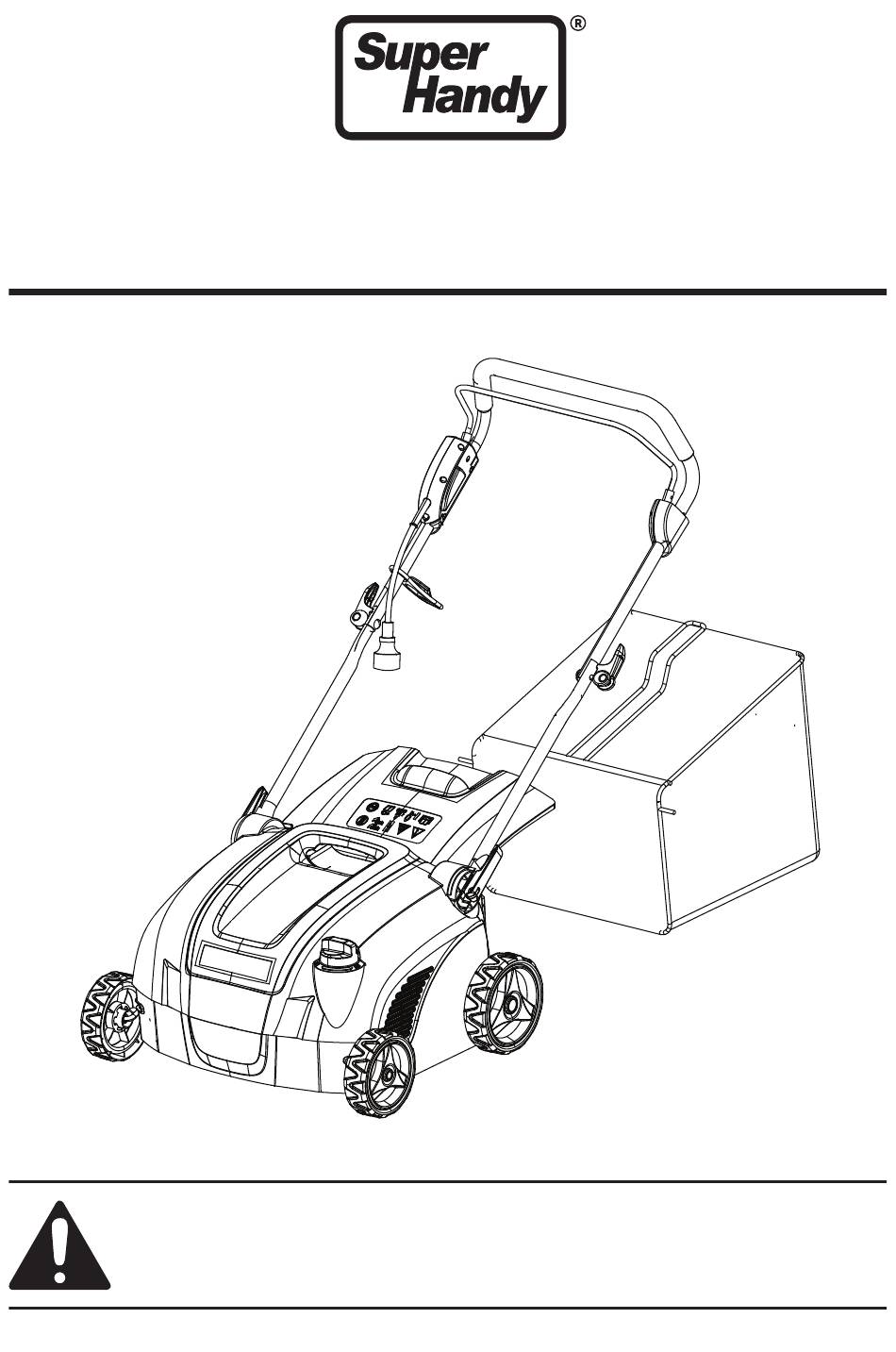

- Page 1 Electric Scarifer & Lawn Dethatcher Manual WARNING: Read carefully and understand all INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. Save these instructions in a safe place and on hand so that they can be read when required. Keep these instructions to assist in future servicing.
- Page 2 TECHNICAL DATA SKU# GUT080 Rated Power Blade Length 15 " Height of Cut -0.43"，-0.28"，-0.11"，0.04"，0.20" Grassbox Capacity 27QT Protection Class IPX4 Working Speed Of The Aerator Cylinder 4000RPM Sound Power Level 99dB(A) Vibration 31FT/s² Please read these operation instructions carefully and observe the notes given. Use these instructions to familiarize yourself with the Electric Lawn Rake, its correct use and the notes on safety.
- Page 3 Checks before each use: 1. Inspect the Electric Lawn Rake before Each use. 2. Do not use the Electric Lawn Rake if Safety devices (starter lever,safety Interlock, rear flap, housing) are damaged or worn. 3. Never operate the unit with the safety devices by-passed or missing. 4.
- Page 4 Interruptions of work: 1. Never leave the Electric Lawn Rake unattended at the working area. 2. If you interrupt your work store the unit in a Safe place. Disconnect the mains plugs! When you interrupt work in order to go to another working area. always switch off the Electric Lawn 3.
- Page 5 OPERATION Fig. 5 Starting and Stopping: Make sure the blade stopped rotating before switching “on” again. Do not rapidly switch on and off. Starting: ① Press and hold the safety button ①. Squeeze the switch lever ② towards the handle (See Fig.
- Page 6 TROUBLE-SHOOTING Problem Possible Cause Corrective Action Power turned off Turn power on Turn power on Mains socket faulty Use another socket Extension cable damaged Inspect cable, replace if damaged Check underneath the machine Possible clogging and clear out as necessary (always Machine fails to wear gardening gloves) operate...
- Page 7 The aerator cylinder can cause injuries! Prior to rectifying faults , unplug from the mains and wait until the aerator cylinder has stopped. Wear working gloves when rectifying faults. If the aerator cylinder is in wear adjustment position 3 and is worn , the aerator cylinder must be replaced.
- Page 8 MOVING For cutting convenience, it may be best to start mowing at a point close to the power supply and to work your way away from the supply. Mow the lawn at a right angle from the power supply and place the power cable to side which has already been cut (See Fig. 8). Fig.
