SSi

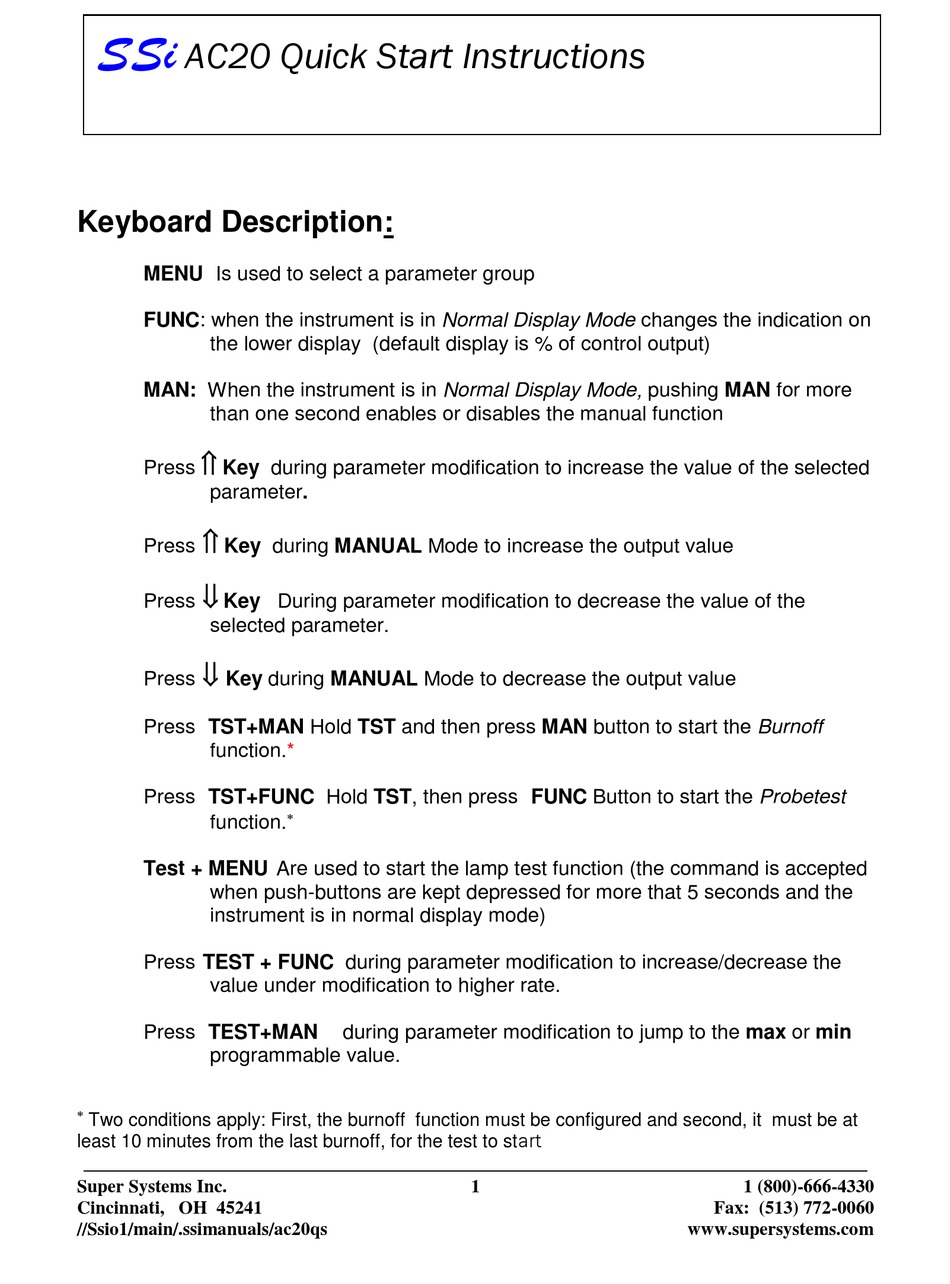

AC20 Quick Start Instructions

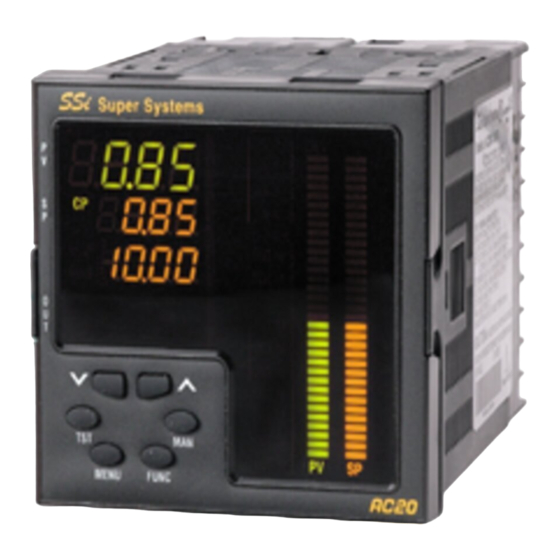

Keyboard Description:
MENU Is used to select a parameter group
FUNC: when the instrument is in Normal Display Mode changes the indication on
the lower display (default display is % of control output)
MAN: When the instrument is in Normal Display Mode, pushing MAN for more
than one second enables or disables the manual function
Press
Key during parameter modification to increase the value of the selected
parameter.
Press
Key during MANUAL Mode to increase the output value
Press
Key During parameter modification to decrease the value of the
selected parameter.
Press
Key during MANUAL Mode to decrease the output value
Press TST+MAN Hold TST and then press MAN button to start the Burnoff
function.*
Press TST+FUNC Hold TST, then press FUNC Button to start the Probetest
function.
Test + MENU Are used to start the lamp test function (the command is accepted
when push-buttons are kept depressed for more that 5 seconds and the
instrument is in normal display mode)
Press TEST + FUNC during parameter modification to increase/decrease the
value under modification to higher rate.
Press TEST+MAN
programmable value.
Two conditions apply: First, the burnoff function must be configured and second, it must be at
least 10 minutes from the last burnoff, for the test to st
Super Systems Inc.
Cincinnati, OH 45241
//Ssio1/main/.ssimanuals/ac20qs
during parameter modification to jump to the max or min
art
1
1 (800)-666-4330
Fax: (513) 772-0060
www.supersystems.com
Advertisement
Table of Contents
Related Manuals for SSI AC20
Summary of Contents for SSI AC20
- Page 1 AC20 Quick Start Instructions Keyboard Description: MENU Is used to select a parameter group FUNC: when the instrument is in Normal Display Mode changes the indication on the lower display (default display is % of control output) MAN: When the instrument is in Normal Display Mode, pushing MAN for more than one second enables or disables the manual function ...
- Page 2 Notes: 1) All the actions explained on the previous page which require two or more push-buttons must follow exactly the push-button sequence shown. 2) A 30-second time-out period is operational for the modification portion of the instrument. If no push-buttons are depressed within 30 seconds the instrument will automatically go to Normal Display Mode.
- Page 3 AC20 Quick Start Instructions Display Indicators Press the FUNC button to change the bottom display to the following. Lit when the sensor out (in mV) is shown on the lower display. Lit when the sensor temperature is shown on the lower display.
- Page 4 AC20 Quick Start Instructions To Change Process Setpoint: When the device is in AUTO Mode and in Normal Display Mode Press the for more than 2 seconds, and the set point will begin changing. After achieving the desired set point, the instrument will time out for 2 seconds, and ...
- Page 5 F by pressing the FUNC button until you reach H F in the lower Display. AC20 Quick Start Instructions To Change to Burnoff Timers: When the device is in AUTO Mode and in Normal Display Mode Press the MENU button – (Gr. 1 will be displayed in Yellow) ...
