Summary of Contents for SLG SD55

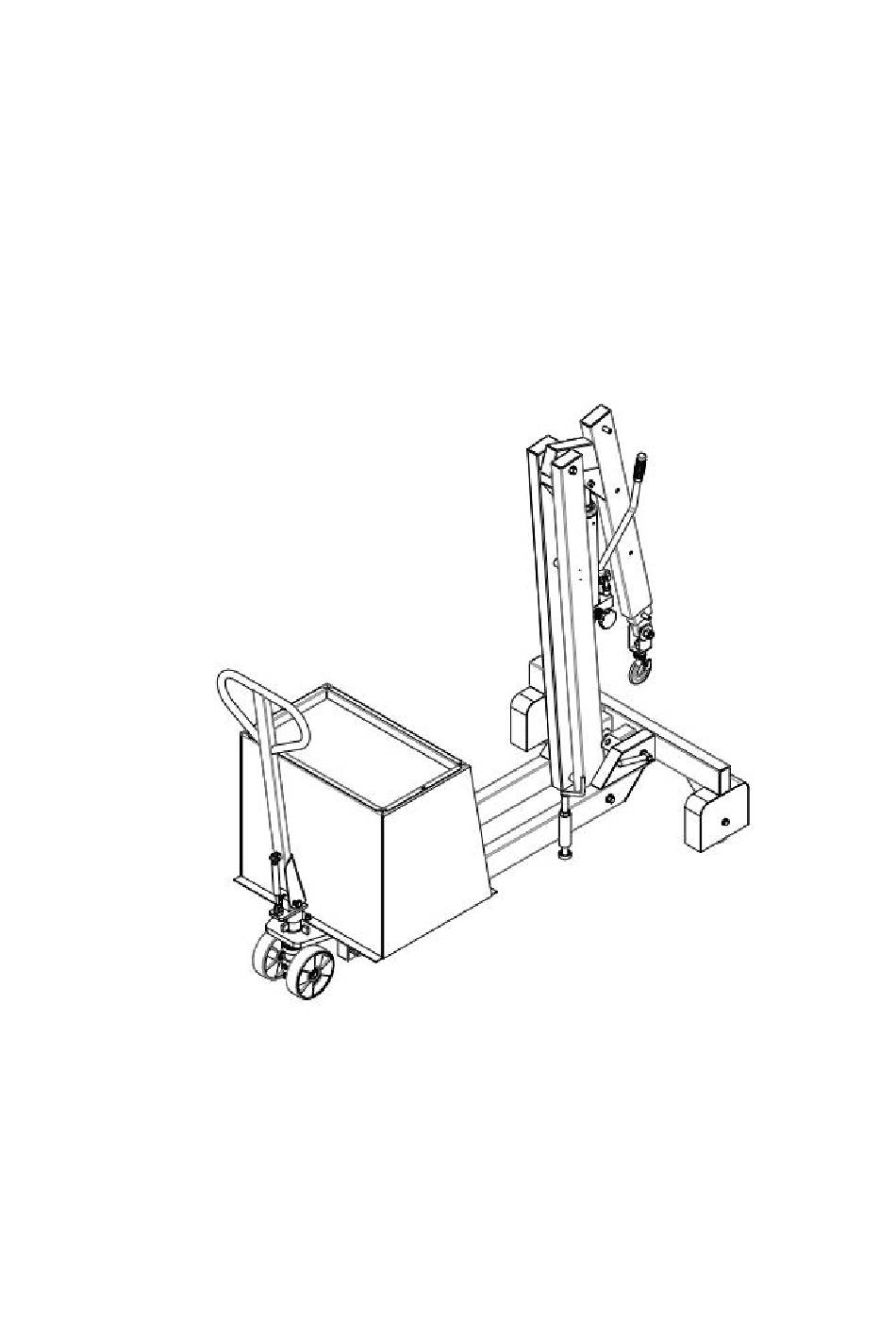

- Page 1 Manual Balanced Crane Model: SD55 Instruction Manual Note: Operator must read this instruction manual before using the product and follow the requirements during operating. VERSION ONE 11/2015...
- Page 2 Contents 1. Product Main Components……………………….. 3 2. Specification ……………………………………….. 3 3. Assemble and adjustment ……………………… 4 4. Safety Operation ………………………………… ..5 5. Warning …………………………………………. .. 6 6. Operating Instructions………………………………6 7. Daily Inspections ……………………………………..6...
- Page 3 PLEASE READ THIS INSTRUCTION MANUAL COMPLETELY BEFORE USING. THOROUGHLY UNDERSTAND AND FOLLOW ALL SAFE OPERATION & WARNING INSTRUCTIONS. IF THIS MANUAL IS LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR A NEW COPY. IF THE WARNING/CAUTION STICKERS ON THE PRODUCT IS LOST, PLEASE CONTACT YOUR LOCAL SUPPLIER FOR NEW ONES.
- Page 4 Assembly and Adjustment 3、 3.1 Remove the package carefully, avoiding severe vibration and significant tilt. 3.2 Turn the stands To the upright position , insert the pin to fix both parts, then lock them with the spring pin(as drawing 3-1); 3.3 Carry the counterbalance case on the base chassis, fix them with 4PCSBolts((in the spare parts bag)(as drawing 3-2).
- Page 5 4、Safe Operation 4.1 The Operator Requirements The lifter must be operated by professionals who can demonstrate the product lifting operation to users and can instruct vividly how to operate. Operator must be trained and fully understand the operation of product lifting and self-propelling, as well as all safety requirements.
- Page 6 5.Warning 5.1DO NOT overload; 5.2 When moving with load, the hook should be at the lowest position. 5.3 U-turning or lifting loads is prohibited on a slope. 5.4 DO NOT load people; 5.5 DO NOT operation under the extension arm. 5.6 STOP operation immediately once the cargo is unstable.
