Balboa Water Group BWA Easy Installation Manual

bwa™ Wi-Fi Module

Package Contents

Welcome Kit
Control your tub from your smartphone bwa™ for ios devices
1-2-3 Easy Installation Guide
bwa™ Wi-Fi Module (50350)
Finished Installation Overview
1219BPWI-FI_42238
©2019 Balboa Water Group. Single Source Solution. All rights reserved.
3030 Airway Avenue | Costa Mesa, CA 92626 | p 714.384.0384 | www.balboawater.com
Balboa has the right to change technical data without notice.
1

Connecting The Wi-Fi Module

STOP
Welcome Kit
Control your tub from your smartphone
bwa™ for ios devices
Make sure your spa
bwa™ Welcome Kit
is turned OFF before
you continue
Y-Splitter (25657)
(09/03/19) The GUI has not been nalized. These are concept drawings.
spaTouch 3 Plus
spaTouch 3
1-2-3 EASY INSTALLATION GUIDE

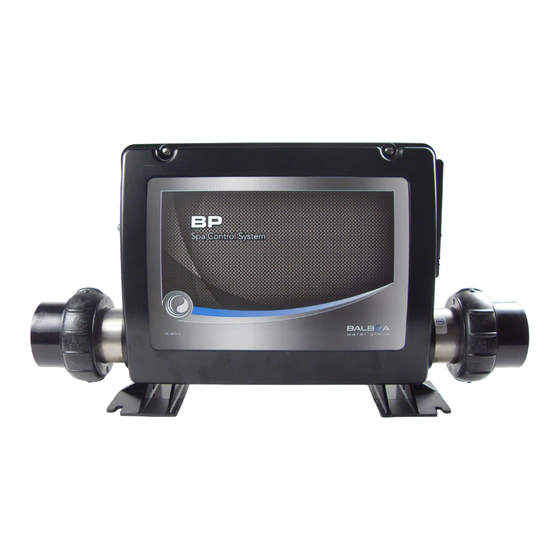

SYSTEM
SIDE VIEW
Note: Place the
Wi-Fi module
away from any
metal tub
supports.
Make sure the clip is
You will hear a CLICK
in the correct position
once connected.
Note: Black Wi-Fi cable.
After the Wi-Fi wire module is inserted,
gently pull on the wire to make sure the clip
is securely in place and will not come lose.
WARNING!
If you do not see the Wi-Fi
connector from your system.
Please contact an electrician
or your local spa technician to
connect the Wi-Fi connector
for you. DO NOT OPEN THE
SPA SYSTEM AND ATTEMP
TO CONNECT THE WI-FI
CONNECTOR YOURSELF.
The high electrical voltage
may harm or kill you.
