Summary of Contents for Heritage Audio RAM SYSTEMS 2000
- Page 1 SYSTEM 2000 DESKTOP MONITORING SYSTEM WITH BLUETOOTH RAM SYSTEMS USER MANUAL August/2022 Rev. 1.0.
-
Page 2: Table Of Contents
Heritage Audio - Madrid, Spain © 2022 Heritage Audio S.L. is the sole owner of the copyright of all information and drawings contained in this manual which are not to be copied or reproduced by any means or disclosed in part or whole to any third party without written permission. -
Page 3: Description

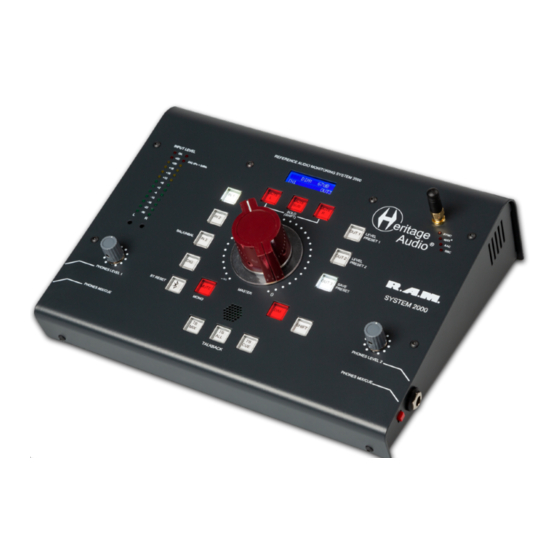

DESCRIPTION The Heritage Audio R.A.M. SYSTEM 2000 is a professional monitor controller in an attractive and convenient tabletop format. With its matrix of inputs and outputs the System 2000 will cover all the monitoring needs of the most demanding professional facilities at a price never heard of before. -
Page 4: Getting Started
GETTING STARTED FRONT MUTE MUTE MUTE OUT 1 IN 1 IN 2 OUT 2 IN 3 OUT 3 MUTE SHIFT LCD SCREEN MUTE SUB MUTE L INPUT LEVEL INPUTS Updates to function being used Mutes the Subwoofer Output Mutes Left Channel LED Input Level Meter and with Selects between Analog 1-3 indicating values... - Page 5 REAR SPDIF I/P POWER L/R INPUTS 1-3 SUB W L/R OUTPUTS 1-3 24Bit/96 kHz Digital Input 5 Pin Power Connector Analog Inputs on TRS Jacks Dedicated Subwoofer Output Analog Outputs on TRS Jacks on TRS Jack MIX OUT CUE OUT CUE IN Stereo Mix Output L/R Outputs...
-
Page 6: Applications
APPLICATIONS STEREO INPUTS MONITOR MID FIELD LEFT OUT 1 MID FIELD RIGHT OUT 2 IN 1 IN 2 IN 3 INPUTS THUNDERBOLT COMPUTER MONITOR OUT L & R AUDIO INTERFACE... - Page 7 BLUETOOTH INPUTS STEREO MONITOR MID FIELD LEFT OUT 1 MID FIELD RIGHT OUT 2 IN 1 IN 2 IN 3 THUNDERBOLT COMPUTER MONITOR OUT L & R AUDIO INTERFACE...
- Page 8 DIGITAL INPUTS STEREO MONITOR MID FIELD LEFT OUT 1 MID FIELD RIGHT OUT 2 IN 1 IN 2 IN 3 DIGITAL SPDIF I/P DIGITAL SPDIF OUT THUNDERBOLT COMPUTER MONITOR OUT L & R AUDIO INTERFACE...
- Page 9 TWO INPUTS INPUTS & HEADPHONES MID FIELD MID FIELD OUT 2-L OUT 2-R IN 1 SUBWOOFER IN 2 NEAR FIELD NEAR FIELD OUT 1-L OUT 1-R IN 3 STEREO LINE OUT PORTABLE AUDIO PLAYER MUTE MUTE MUTE OUT 1 IN 1 IN 2 OUT 2 IN 3...
- Page 10 THREE OUT MONITORING INPUTS WITH CUE IN 1 IN 2 TO HEADPHONE AMP IN 3 RECORDING ROOM / VOCAL BOOTH IN WALL IN WALL OUT 3-L OUT 3-R MID FIELD OUT 2-R MID FIELD OUT 2-L NEAR FIELD NEAR FIELD OUT 1-R OUT 1-L SUBWOOFER...
-
Page 11: Specifications
SPECIFICATIONS • Maximum analog input level: Over +27,5 dBu. • Digital input: Up to 24Bit/96 kHz. 0 dBfs= +22 dBu at the output, fader fully up. • Bluetooth input: AAC, aptX or SBC, 0 dBfs= +22 dBu at the output, fader fully up. •... -
Page 12: Trouble Shooting
TROUBLE SHOOTING PROBLEMS SOLUTIONS There is no sound coming from my R.A.M. SYSTEM Make sure the ´MUTE´ button is not pressed. 2000. The audio from my R.A.M. SYSTEM 2000 seems less Double check that you have not accidentally pressed the open than the audio directly from my DAW. -
Page 13: Warranty Statement
2 years to the original purchaser. In the event of such defects, the product will be repaired without charge or, at our option, replaced with a new one if delivered to Heritage Audio prepaid, together with a copy of the sales slip or other proof of purchase date. -
Page 14: Recall Sheets
RECALL SHEETS... - Page 15 HERITAGE AUDIO. C/ Alfonso Gómez, 38, 3C. 28037 Madrid – Spain. Tel: +34 917 266 189 info@heritageaudio.com...
