Sentier Vetcorder Pro User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

User's Manual
1.
The Basics ................................................................................................ 1
2.
Introduction ............................................................................................ 2
3.
Getting Started ........................................................................................ 7
4.
Using Vetcorder ....................................................................................... 8
6.
Review ................................................................................................... 22
7.
Maintenance ......................................................................................... 24
9.
Accessories ............................................................................................ 27
10.
Specifications ........................................................................................ 28
11.
Electromagnetic Compatibility .............................................................. 31
EVERY PATIENT EVERY TIME

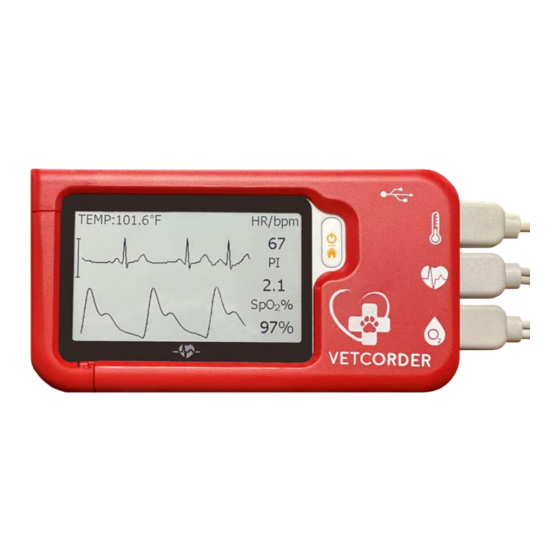

Vetcorder Pro

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vetcorder Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Sentier Vetcorder Pro

Summary of Contents for Sentier Vetcorder Pro

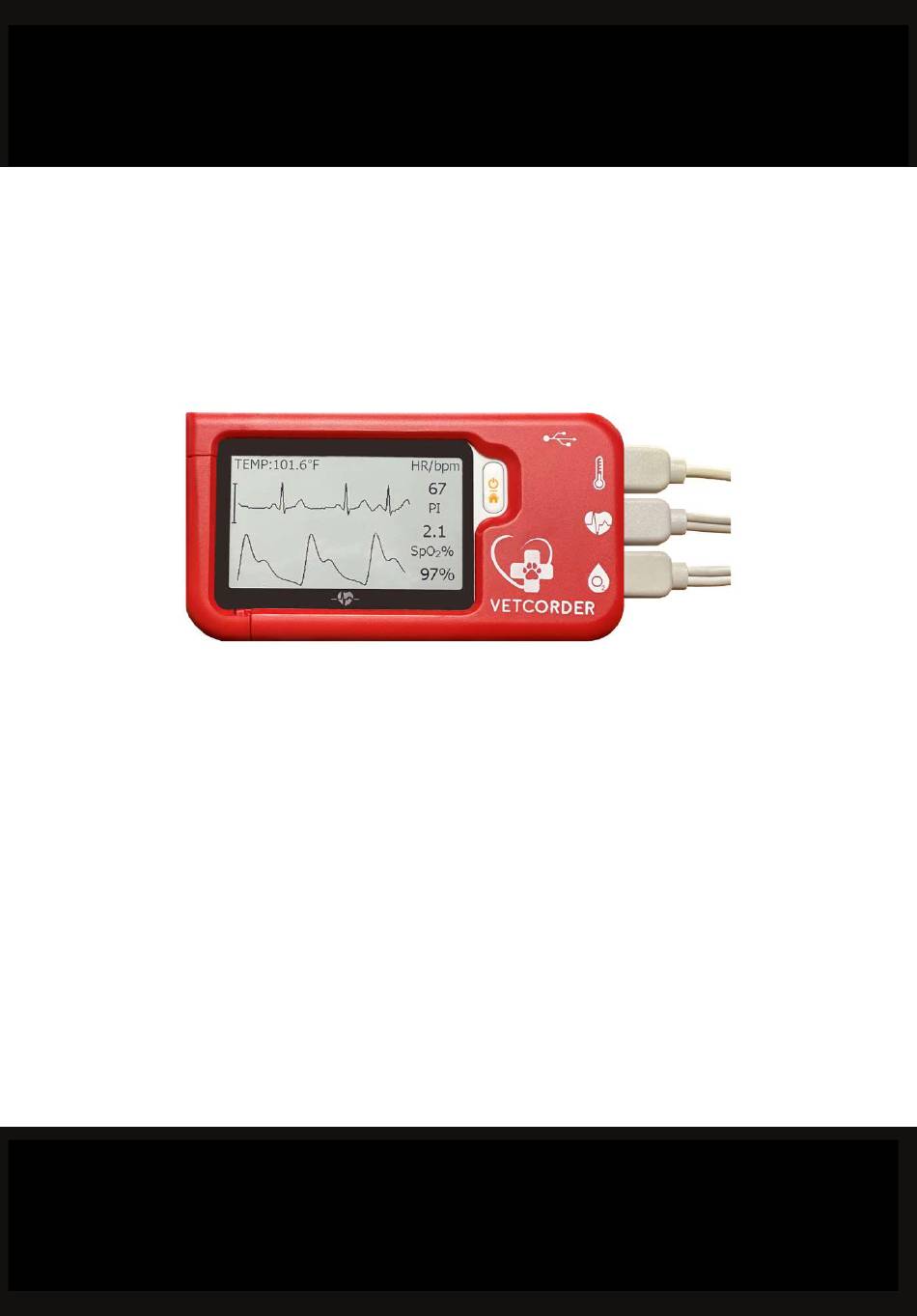

  • Page 1: Table Of Contents

    User’s Manual Vetcorder Pro The Basics ....................1 Introduction .................... 2 Getting Started ..................7 Using Vetcorder ..................8 Review ....................22 Maintenance ..................24 Accessories .................... 27 Specifications ..................28 Electromagnetic Compatibility .............. 31 EVERY PATIENT EVERY TIME...

  • Page 2: The Basics

    The Basics This manual contains the instructions necessary to operate the product safely and in accordance with its function and intended use. Observance of this manual is a prerequisite for proper product performance and correct operation and ensures user and operator safety.

  • Page 3: Introduction

    Introduction 2.1 Intended Use The Vetcorder Pro Multi-Parameter Monitor is intended to be used for the measuring, displaying, reviewing, and storing of multiple physiological parameters including ECG, pulse oxygen saturation (SpO2), perfusion index (PI), pulse rate and internal temperature. It is not intended for use on humans.
  • Page 4 When the monitor is off, press this button to power it  When the monitor is on, press and hold it for 2  seconds to turn it off. During operation, pressing this button will switch to  Main Screen, or Calendar Screen, or return to Home Screen.
  • Page 5 2.4 Calendar Screen / Standby Mode The device will enter Calendar Screen / Standby Mode when: No operation is detected for 120 seconds in other screen  interface, the device will automatically switch to the Calendar Screen. Pressing the Home button will return you to the Main Screen. ...
  • Page 6 2.5 Result Screen This device provides powerful measurement functionalities, including Daily Check, ECG, Oximeter, Internal Thermometer. For each measurement, a Result report will be provided after the measurement is finished. An example is shown as below. Measured parameters and readings. Trash, replay, and back buttons.
  • Page 7 2.6 Symbols Symbol Meaning Manufacturer In conformity with Directive 93/42/EEC CE0197 Symbol for “ENVIRONMENT PROTECTION – Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice”.

  • Page 8: Getting Started

    Before unpacking, examine the packing case carefully for signs of damage. If any damage is detected, contact your distributor or Sentier. If the packing case is intact, open the package and remove the equipment and accessories carefully. Verify all materials are present and check for any mechanical damage.

  • Page 9: Using Vetcorder

    3.4 Turning On/Off Bluetooth The Vetcorder Pro has built-in Bluetooth wireless connectivity, which enables exporting measured records from the device to mobile devices using Bluetooth protocol. To turn on the Bluetooth: press the Home button to enter  Main Screen.
  • Page 10 appropriate. This will usually sufficient recording/monitoring for a short time (30 to 60 minutes), depending upon the relative humidity. Alcohol may need to be reapplied during longer procedures. For pets with a dense undercoat, you may need to use the blue clips that have been provided to assure the leads have contact with the skin.
  • Page 11 circulation. Rub the skin or use heat to increase circulation or place the SpO2 sensor in another location. The Pulse Oximeter measures oxygen saturation of  functional hemoglobin. High levels of dysfunctional hemoglobin could affect the accuracy of the measurements. Field strengths from fixed transmitters, such as base stations ...
  • Page 12 To ensure better tracking of health status, it is strongly  suggested that every Daily Check measurement is made at the same time period when the body is in the relative same situation. E.g., every morning or every night. Daily Check measurement is a function that combines the measuring of ECG (Electrocardiograph) waveform, HR (heart rate), Pleth waveform, SpO2 (blood oxygenation) and PI (Perfusion Index).
  • Page 13 still. Once the device detects a stable waveform, it will automatically start the measurement. The countdown bar moves from left to right. 7. When the bar is fully filled, the device will analyze your data and then show the measurement result. Please refer to Section 2.5 to understand the result screen.
  • Page 14 In the Main Screen, select <ECG Recorder>. Choose ECG lead type I or II. NOTE: This selection does not alter the measurement but puts a note in the recording. Actual lead is based on where wires are placed on the patient. Follow the instructions to connect the ECG cable and place the ECG electrodes.
  • Page 15 4.4 Upload Icon The Upload feature may be used with the built-in Bluetooth wireless connectivity, to export measured records from the Vetcorder Pro to mobile devices. For instructions on how download and/or share an ECG or Daily Check recording, please visit https://www.sentierconnect.com/.
  • Page 16 Tap the first row to set the day or repeat interval. Tap the  ◄ or ► button to change the setting. Tap the second row to set the event. You can define the  event by selecting “Self-Define”. You can reach this by using the ◄...
  • Page 17 The Perfusion Index is a relative assessment of the pulse strength at the monitoring site. Measuring Connect the external SpO2 sensor to the Vetcorder Pro Monitor. Attach the external SpO2 sensor to your Pet. If the device is in Calendar Screen, press the Home button.
  • Page 18 Before each use, check that the probe is intact. If it is  damaged, do not use, please contact your distributor or Sentier. Holding the device in your hand or carrying it in a pocket  can cause the device to warm up, which may result in incorrect readings.
  • Page 19 If the device is in Calendar Screen, press the Home button.  In the Main Screen, select <Thermometer>.  Insert probe  In Temperature Mode readings will display as seen below.  The Temperature will display in the upper left corner of the ...
  • Page 20 Vetcorder Pro Monitor. Attach the external SpO2 sensor and ECG clips to your Pet.  Insert the Internal Temperature Probe rectally or esophageal.  The display will show the continuous monitoring of ECG,  SpO2, Temperature and Heart Rate.
  • Page 21 to finish the setting.  5.2 Changing ECG recording length To change the length of ECG recording in ECG Recorder: In the Settings menu, choose <General>.  Tap <ECG Length>, then choose among <30s>, <60s> and  <90s>. Tap <OK> to enable the ...
  • Page 22 5.6 Changing Sound Volume In the Settings menu, tap the <Volume> area to change volume directly. “X” means the volume is turned off. 5.7 Changing Temperature Unit In the Settings menu, tap the <Thermometer> area to change between Celsius (°C) and Fahrenheit (°F). 5.8 Pet Management If Daily Check measurement is used for more than one Pet, then each must have their own account.

  • Page 23: Review

    5.10 Exporting Recordings Vetcorder has built-in Bluetooth wireless connectivity, which enables exporting measured records to mobile phones and tablets running iOS or Android platform. After downloading the Vetcorder Connect app, follow these instructions to pair and send recordings to your mobile phone: Tap the <Upload>...
  • Page 24 When the ECG waveform is being replayed, you can Select to change the waveform amplitude.  Select to pause it.  Select to return Daily Check list.  After the ECG waveform is replayed, it will automatically return to the previous interface. Select to view the trend of heart rate or SpO ...

  • Page 25: Maintenance

    Maintenance Warnings and Cautionary Advice Call Sentier customer service if you think your device needs repair  Do not perform your own maintenance on the Vetcorder;  performing your own repairs will void the warranty. 7.1 Warranty The Vetcorder is warranted to be free from manufacturer defects in...
  • Page 26 Do not submerge in any liquid. Warnings and Cautionary Advice Call Sentier customer service if you think your device needs repairs.  Do not perform your own maintenance on the Vetcorder;...
  • Page 27 Main Screen. “Error 4” The SpO or ECG cable Please contact Sentier might be damaged. “System Error” Software or hardware Restart the device and occurred. failure. measure again. If the...

  • Page 28: Accessories

    Warnings and Cautionary Advice Use accessories specified in this chapter. Using other accessories  may cause damage to the device or not meet the claimed specifications. Sentier Part # Description 7100-1750 Vetcorder Veterinary Monitor System 7100-1602 Small Animal SPO2 Lingual Sensor (2 ft)

  • Page 29: Specifications

    10. Specifications Classifications MDD, 93/42/EEC EC Directive R&TTE, 1999/5/EC ROHS 2.0, 2011/65/EU Degree protection against electrical Type BF shock Environmental Item Operating Storage Temperature 5 to 45°C -25 to 70°C Relative humidity (noncondensing) 10% to 95% 10% to 95% Barometric 700 to 1060 hPa 700 to 1060 hPa Degree of dust &...
  • Page 30 10 mm/mV, 20 mm/mV Sweep speed 25 mm/s Bandwidth* 0.05 to 40 Hz Electrode offset potential ±300 mV tolerance HR measurement range 30 to 350 bpm Accuracy ±2 bpm or ±2%, whichever is greater ST measurement range -0.5 to +0.5 mV Heart rate**, QRS duration, ST segment***, Rhythm analysis (Regular ECG Rhythm, High Heart Rate, Measurement summary...
  • Page 31 ECG recorder 100 pcs of records without audio memo Oximeter 100 pcs of records Thermometer 100 pcs of records Mobile APPS Operating system IOS 7.0 or above, Android 4.0 or above IOS Capability iPhone 4s and models launched subsequently; iPad 3 and models launched subsequently Android Capability Mobile phone or pad with Bluetooth 2.1 or above...

  • Page 32: Electromagnetic Compatibility

    11. Electromagnetic Compatibility The device meets the requirements of EN 60601-1-2. All the accessories also meet the requirements of EN 60601-1-2 when in use with this device. Warnings and Cautionary Advice Using accessories other than those specified in this manual may ...
  • Page 33 Guidance and Declaration - Electromagnetic Immunity The Vetcorder is intended for use in the electromagnetic environment specified below. The customer or the User of the Vetcorder should assure that it is used in such an environment. Immunity test IEC60601 test level Compliance level Electromagnetic environment - guidance...
  • Page 34 Guidance and Declaration - Electromagnetic Immunity The Vetcorder is intended for use in the specified electromagnetic environment. The customer or the User of the Vetcorder should assure that it is used in such an environment as described below. Immunity test IEC60601 test Compliance Electromagnetic environment - guidance...
  • Page 35 Recommended separation distances between portable and mobile RF communications equipment and the device The Vetcorder is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the User of the Health Monitor can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the monitor as recommended below, according to the maximum output power of the communications equipment.
  • Page 36 Vetcorder Sentier HC LLC (Hereinafter called Sentier) owns the intellectual property rights to this Sentier product and this manual. This manual may refer to information protected by copyrights or patents and does not convey any license under the patent rights of Sentier, nor the rights of others.
