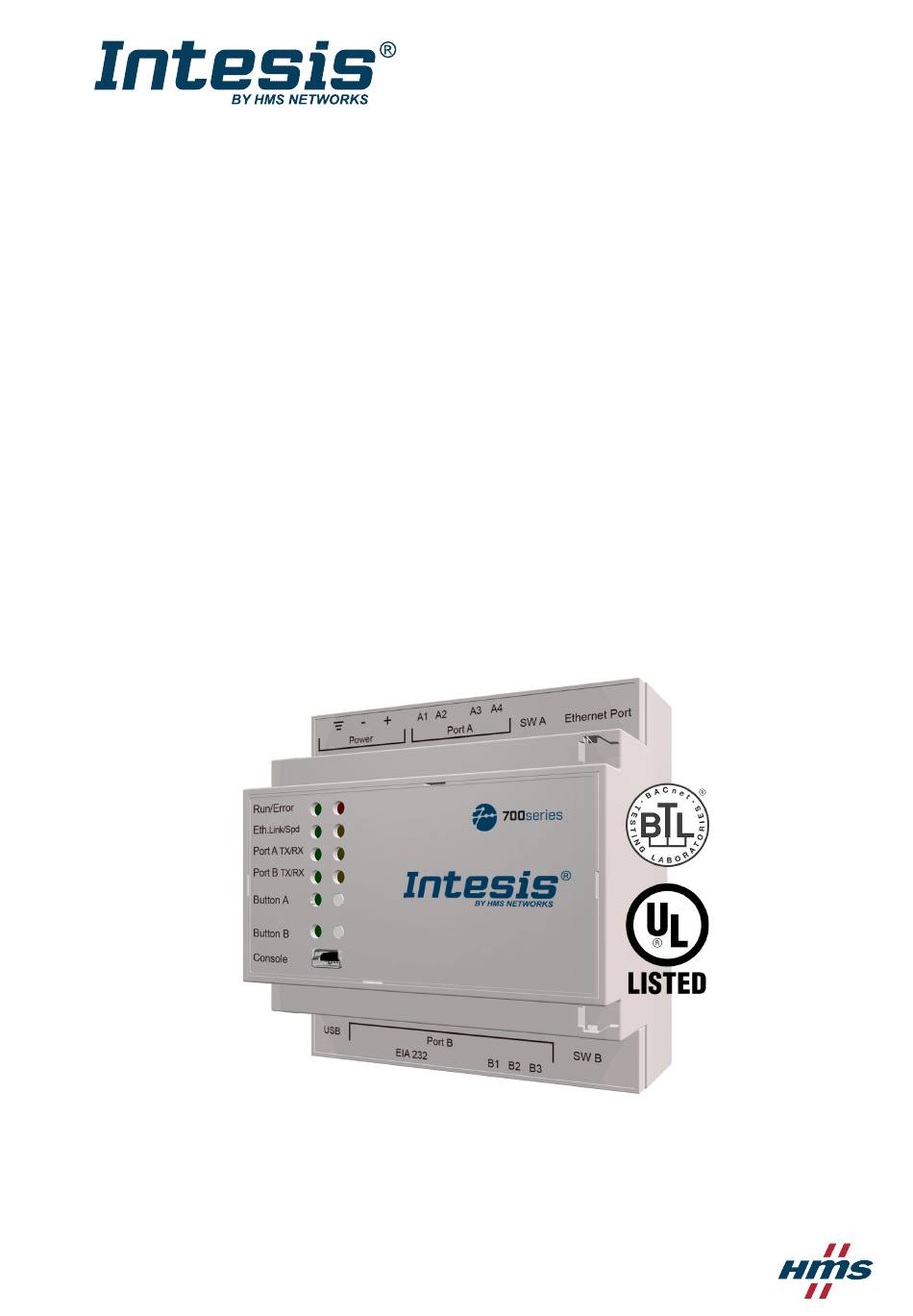

- Page 1 ENGLISH IN701-KNX Series INTESIS PROTOCOL TRANSLATOR WITH KNX, SERIAL, AND IP SUPPORT USER MANUAL Version 1.2 Publication date 2023-01-09...
- Page 2 Copyright © 2022 Intesis Disclaimer The information in this document is for informational purposes only. Please inform HMS Networks of any inaccuracies or omissions found in this document. HMS Networks disclaims any responsibility or liability for any errors that may appear in this document.
-
Page 3: Table Of Contents
IN701-KNX Series Table of Contents 1. Order Codes ........................... 1 2. General Information ........................ 2 2.1. Intended Use of the User Manual ..................2 2.2. General Safety Information ....................2 2.3. Admonition Messages and Symbols ..................2 3. General Introduction ........................ 4 4. - Page 4 15.7. Console and USB Connections ..................38 16. Set-up Process with the Configuration Tool ................39 16.1. Prerequisites ......................... 39 16.2. Intesis MAPS: Configuration and Monitoring Tool ..............39 16.2.1. Introduction ......................39 16.2.2. Template Selection ....................40 16.2.3. Connection Tab ...................... 40 16.2.4.
-
Page 5: Order Codes
Intesis Protocol Translator IN701-KNX IN701KNXxxx*0000 with KNX, Serial, and IP IN-BAC-KNX KNX to BACnet server Support IN-KNX-BAC BACnet client to KNX IN-ASCII-KNX KNX to ASCII server *xxx defines the Intesis gateway capacity. USER MANUAL Version 1.2 Page 1 of 44... -
Page 6: General Information
2. General Information 2.1. Intended Use of the User Manual This manual contains the main features of this Intesis gateway and the instructions for its appropriate installation, configuration, and operation. The contents of this manual should be brought to the attention of any person who installs, configures, or operates this gateway or any associated equipment. - Page 7 Admonition Messages and Symbols IN701-KNX Series CAUTION Instruction that must be followed to avoid a potentially hazardous situation that, if not avoided, could result in minor or moderate injury. IMPORTANT Instruction that must be followed to avoid a risk of reduced functionality and/or damage to the equipment or to avoid a network security risk.
-
Page 8: General Introduction
(only one at a time). IMPORTANT The Intesis gateway can act as a server or client for BACnet and Modbus but only as a server for ASCII. As always, the configuration process is fast and easy: Launch the configuration tool. -
Page 9: Modbus Server To Knx
4.2. Functionality From the KNX system point of view, after starting the gateway or performing a KNX bus reset, the Intesis gateway polls the KNX signals and stores the received values in its memory, ready to be served to the Modbus system when requested. -
Page 10: Knx To Modbus Client
From the KNX system point of view, after starting the gateway or performing a KNX bus reset, the Intesis gateway polls the KNX signals and stores the received values in its memory, ready to be served to the Modbus system when requested. - Page 11 Functionality IN701-KNX Series When polling the Modbus devices, if a non-response is detected, the corresponding virtual signal inside the gateway will be activated to indicate the communication error as a KNX group address. USER MANUAL Version 1.2 Page 7 of 44...
-
Page 12: Bacnet Server To Knx
6.2. Functionality From the KNX system point of view, after starting the gateway or performing a KNX bus reset, the Intesis gateway polls the KNX signals and stores the received values in its memory, ready to be served to the BACnet system when requested. - Page 13 Functionality IN701-KNX Series Any point with the “R” flag activated (in the KNX part) can be read from the KNX system at any moment. Any point with the “Ri” flag activated (in the KNX part) will be read after every reset of the gateway. USER MANUAL Version 1.2 Page 9 of 44...
-
Page 14: Knx To Bacnet Client
Present_Value property of the corresponding BACnet object associated with it (using the WriteProperty BACnet service). Therefore, the Intesis gateway performs as a single KNX device in the KNX system, offering communication objects to access the BACnet objects of the configured external BACnet devices. -
Page 15: Ascii Server To Knx
8.2. Functionality From the KNX system point of view, after starting the gateway or performing a KNX bus reset, the Intesis gateway polls the KNX signals and stores the received values in its memory, ready to be served to the ASCII system when requested. - Page 16 IN701-KNX Series Functionality When the gateway receives a telegram from a KNX group address associated with an ASCII point, it sends a message to the corresponding ASCII device to perform the related action. Page 12 of 44 USER MANUAL Version 1.2...
-
Page 17: Gateway Capacity
Gateway Capacity IN701-KNX Series 9. Gateway Capacity Table 1. For Modbus server to KNX Element 100 version 250 version 600 version 1200 version 3000 version Maximum number of KNX communication objects 1200 3000 Maximum number of KNX main group addresses 1200 3000 Maximum number of KNX associations... -
Page 18: Knx Interface
Update. If this flag is activated, update telegrams (response to read telegrams) on this group object will be accepted. Active If activated, the point will be active in the Intesis gateway; if not, its behavior will be as if it was not defined. This property allows deactivating points without deleting them, keeping them for future use if needed. -
Page 19: Modbus Interface
If poll records are used to read or write more than one register, the range of addresses requested must contain valid addresses; if not, the Intesis gateway will return the corresponding Modbus error code. All registers are of 2 bytes, even if they are associated with signals of bit type on theKNX side. Its content is expressed in MSB .. -
Page 20: Modbus Rtu
IN701-KNX Series Modbus Server Interface 11.2.3. Modbus RTU Using the configuration tool, you can set these parameters: • Baud rate: 1200, 2400, 4800, 9600, 19200, 38400, 56700 and 115200 bps • Data Bits: 8 bits • Parity: none, even, or odd •... -
Page 21: Modbus Server Interface Points Definition
2: Trigger 11.3. Modbus Client Interface 11.3.1. Description The Intesis gateway acts as a client device in the Modbus TCP network, Modbus RTU client, or both. IMPORTANT Other Modbus devices connected to the network communicating with the gateway must always be server devices. -
Page 22: Points Definition
Modbus devices. It also defines different data formats to encode values. Also, the data encoding used for 16 bits registers (big-endian or little-endian) can be configured in the Intesis gateway. This is the byte order for data encoding (MSB..LSB or LSB..MSB) . -
Page 23: Bacnet Interface
BACnet Interface IN701-KNX Series 12. BACnet Interface 12.1. General Description BACnet is a solid standard with many detailed concepts, but for this manual purposes, we will focus on the two most fundamental concepts: • BACnet client, which is the device that sends service requests to the server. •... -
Page 24: Bacnet Client
Device Identifier and basic properties of the gateway as a BACnet device (name, firmware version, etc.). NOTICE When acting as a client device, the Intesis gateway is classified under the device profile of a BACnet Application Specific Controller (B-ASC). For further details, check out the product website for the BACnet client PIC statements. -
Page 25: Points Definition
BACnet Client IN701-KNX Series 12.2.2. Points Definition Every point defined in the Intesis gateway has the following BACnet features associated with it: Feature Description BACnet Device BACnet device to which the point belongs (a list of 256 BACnet devices can be defined in the Intesis gateway). -
Page 26: Bacnet Server
12.3.1. Description NOTICE When the Intesis gateway acts as a server device, it is classified under the device profile of a BACnet Advanced Application Controller (B-AAC). For further details, check out the product website for the BACnet client PIC statements. -
Page 27: Bacnet Ip
12.3.2. BACnet IP The UDP communication port is the main setup parameter for BACnet IP, besides basic IP settings (IP, netmask, default gateway). The Intesis gateway uses the 47808 (0xBAC0) port by default, which you can change through the configuration tool. -
Page 28: Ascii Interface
13. ASCII Interface 13.1. Description The Intesis gateway can be connected to any ASCII-enabled device via its EIA-232, EIA-485, or TCP/IP (Ethernet) connectors, supervising and controlling its internal points through this interface by using simple ASCII messages. When the gateway receives a new value for a point from the other protocol system, its ASCII interface sends the corresponding message indicating the new value to the ASCII system. -
Page 29: Points Definition
Points Definition IN701-KNX Series 13.5. Points Definition Every point defined in the gateway has the following ASCII features associated with it: Feature Description Signal Signal or point description. Only for information purposes at the user level. ASCII string Defines the ASCII string that will be used to access this register. Max. -
Page 30: Messages
• vv is the current point value. • \r is the carriage return character (HEX 0x0D, DEC 13). Message about a point value: sent spontaneously when the Intesis gateway receives a change from the BACnet side or in response to a previous poll for the point. -
Page 31: Mounting
Mounting IN701-KNX Series 14. Mounting IMPORTANT Before mounting, please ensure that the chosen installation place preserves the gateway from direct solar radiation, water, high relative humidity, or dust. IMPORTANT Ensure the gateway has sufficient clearances for all connections when mounted. See Dimensions (page 44). -
Page 32: Connections
IN701-KNX Series Connections 15. Connections Please find in the following table the gateway's ports and their use depending on the configuration. Configuration Port A Port B EIA-485 Port B EIA-232 Ethernet IN-MBS-KNX Modbus RTU Modbus RTU Modbus TCP and Console* IN-KNX-MBM Modbus RTU Modbus TCP and... -
Page 33: Power Supply
IMPORTANT • Use SELV-rated NEC class 2 or limited power source (LPS) power supply only. • A wrong connection may cause earth loops that can damage the Intesis gateway and/or any other system equipment. • If using a DC power supply: IMPORTANT –... -
Page 34: Connection Diagrams For Each Application
IN701-KNX Series Connection Diagrams for each Application 15.2. Connection Diagrams for each Application Look for the appropriate diagram depending on your application: Figure 6. Modbus server to KNX Page 30 of 44 USER MANUAL Version 1.2... - Page 35 Connection Diagrams for each Application IN701-KNX Series Figure 7. KNX to Modbus client USER MANUAL Version 1.2 Page 31 of 44...
- Page 36 IN701-KNX Series Connection Diagrams for each Application Figure 8. BACnet server to KNX Page 32 of 44 USER MANUAL Version 1.2...
- Page 37 Connection Diagrams for each Application IN701-KNX Series Figure 9. KNX to BACnet client USER MANUAL Version 1.2 Page 33 of 44...
- Page 38 IN701-KNX Series Connection Diagrams for each Application Figure 10. ASCII server to KNX Page 34 of 44 USER MANUAL Version 1.2...
-
Page 39: Connection To Knx
LAN paths. NOTE After powering up the Intesis gateway for the first time, DHCP will be enabled for 30 seconds. After that time, if a DHCP server provides no IP, the default IP 192.168.100.246 will be set. -
Page 40: Connection To Modbus
LAN paths. NOTE After powering up the Intesis gateway for the first time, DHCP will be enabled for 30 seconds. After that time, if a DHCP server provides no IP, the default IP 192.168.100.246 will be set. -
Page 41: Connection To Ascii
LAN paths. NOTE After powering up the Intesis gateway for the first time, DHCP will be enabled for 30 seconds. After that time, if a DHCP server provides no IP, the default IP 192.168.100.246 will be set. -
Page 42: Console And Usb Connections
IN701-KNX Series Console and USB Connections IMPORTANT Remember the characteristics of the standard EIA-485 bus: – Maximum distance of 1200 meters. – Maximum of 32 devices connected to the bus. – A termination resistor of 120 Ω is needed at each end of the bus. The gateway has an internal bus biasing circuit already incorporating the termination resistor. -
Page 43: Set-Up Process With The Configuration Tool
– Product documentation. • An operative KNX installation or device well connected to the KNX port A of the Intesis gateway. • The respective client or server devices connected to either the EIA-485/EIA-232 Port B or to the Ethernet port. -
Page 44: Template Selection
Select your gateway from the Discovered Gateways list on the left. Click Connect. NOTE If your Intesis gateway firmware doesn't match the selected template, a pop-up window will prompt you to upload the correct firmware. Page 40 of 44 USER MANUAL Version 1.2... -
Page 45: Configuration Tab
16.2.5. Signals Tab This menu lists all available KNX signals and the parameters for the other side's protocol. NOTE You can find more information on every parameter and how to configure it in the Intesis MAPS user manual: • •... -
Page 46: Diagnostic
IN701-KNX Series Intesis MAPS: Configuration and Monitoring Tool 16.2.7. Diagnostic IMPORTANT Connection with the gateway is required to use the diagnostic tools. Figure 12. Diagnostic tab window. Find the ToolBox between the upper tabs bar and the Console view. Below it,... -
Page 47: Technical Specifications
Technical Specifications IN701-KNX Series 17. Technical Specifications Enclosure Plastic, type PC (UL 94 V-0) / Color: light grey. RAL 7035 Mounting DIN rail EN60715 TH35 Terminal blocks Solid wires or stranded wires (twisted or with ferrule) are allowed. Per terminal: wiring One core: 0.5 .. -
Page 48: Dimensions
IN701-KNX Series Dimensions 18. Dimensions Figure 13. Gateway dimensions Figure 14. Space needed for connections Page 44 of 44 USER MANUAL Version 1.2...
