Summary of Contents for Advanced Solutions MOBILMAX

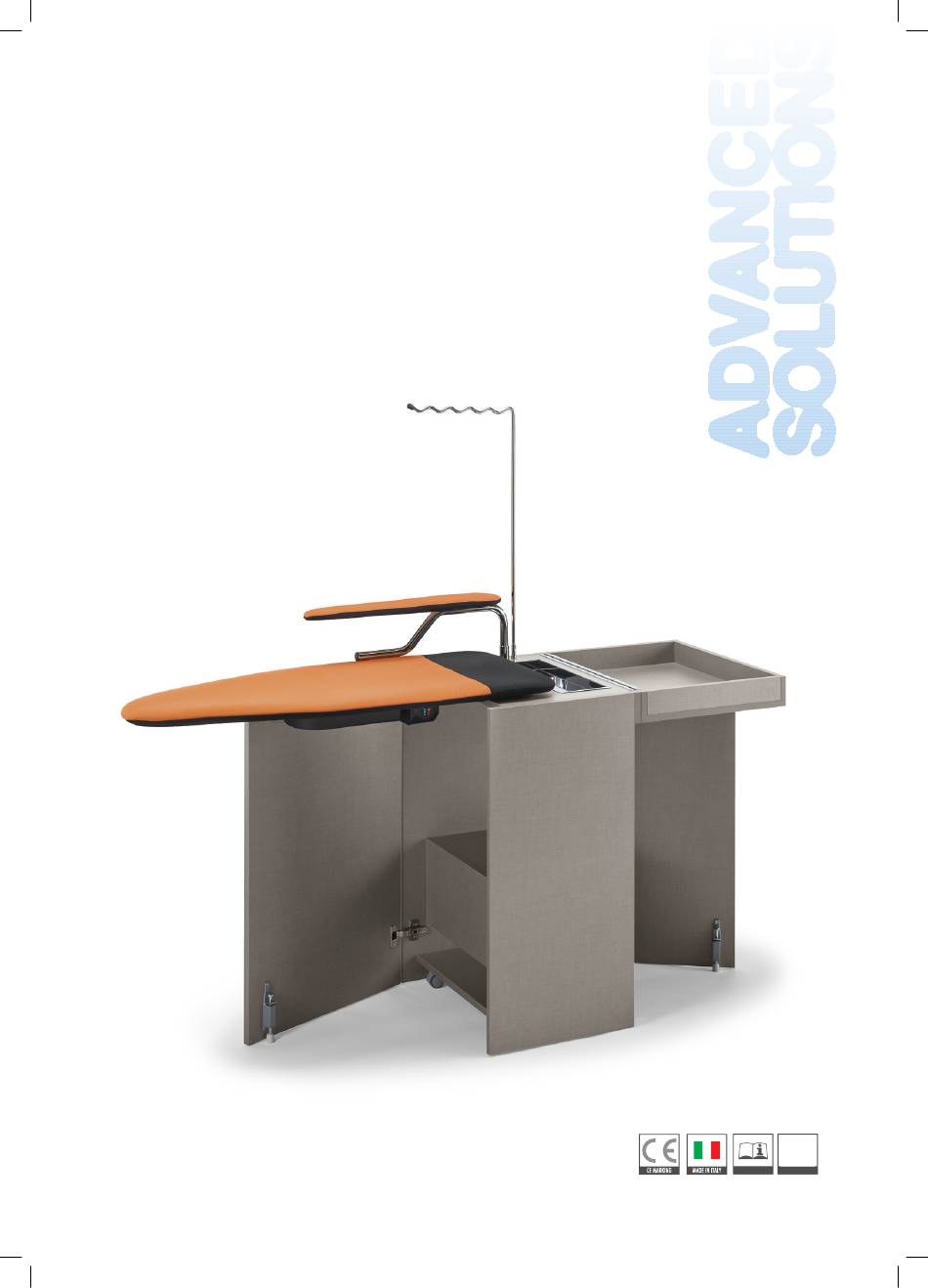

Page 1 MOBILMAX PROFESSIONAL IRONING FURNITURE USE MANUAL ISTRUCTION LANGUAGE...
Page 3: Table Of Contents
FIRST USE ...........................PAG. 03 PHASE: OPENING ............................. PAG. 03 PHASE: IGNITION ............................PAG. 03 BUILT-IN IRON FOR MOBILMAX (OPTIONAL): DESCRIPTION ............PAG. 04 FIRST USE OF THE IRON ......................PAG. 04 PHASE: TANK FILLING ............................ PAG. 04 PHASE: IRON IGNITION ..........................PAG. 04 VERTICAL IRONING ........................PAG.
Page 4: Product Highlights: Description
PRODUCT HIGHLIGHTS: DESCRIPTION 01. Front wing 09. Cable reel 02. Locking / unlocking foot 10. General switch and heating 03. Wheels 11. Suction / blowing switch 04. Rear window 12. Power cord 05. Boiler door cover 13. Irons power supply socket (max 2200Watt) 06.
Page 5: First Use
FIRST USE PHASE: OPENING • Open the rear door (1) and press the locking foot (2); 55 cm • Open the boiler door and place it over the door back (3); • Open the front door (4); 45 cm • Lift the ironing board (5), position the front door in the appropriate seat (6), place the ironing board on the door (7) and press the locking foot (8).
Page 6: Built-In Iron For Mobilmax (Optional): Description
FITTED IRON FOR MOBILMAX (OPTIONAL): DESCRIPTION 1. Metal shell 2. Tank cap 3. Rubber mat 4. Thermostat adjustment knob 5. Steam warning light 6. Iron bright button 7. Water warning light 8. Boiler light button 9. Pipe holding rod 10. Steam / iron feeding tube 11.
Page 7: Vertical Ironing
VERTICAL IRONING This appliance is able to generate steam in a vertical position so you can steam fabrics and easily restore them. 1. Place the knob of the iron thermostat “4” at the maximum capacity at the end of the word “linen”. 2.
Page 8: Safety Rules And Cautions
SAFETY NORMS AND PRECAUTIONS • Before use, check that the mains voltage corresponds to that indicated on the nameplate below the ironing system. • Only connect the appliance to a power outlet that matches the rating plate data and is equipped with an efficient one grounding.
Page 9: Troubleshooting
TROUBLESHOOTING Sometimes problems arise from causes which can be easily removed by carrying out simple checks. PR O BL EM CAUS E S OLU TION • General switch “10” is off • Turn on the “10” switch • Lack of voltage at the socket. •...
Page 10: After-Sales Assistance
WARRANTY AND TECHNICAL TECHNICAL CHARACTERISTICS TECHNICAL CHARACTERISTICS IRONING FURNITURE IRON • Cabinet with chipboard structure covered in melamine • Stainless steel body • Closed mobile measurements 55 x 45 x 94 h. cm • Stainless steel boiler with removable resistance •...
