Summary of Contents for Time Guard TLRXC1

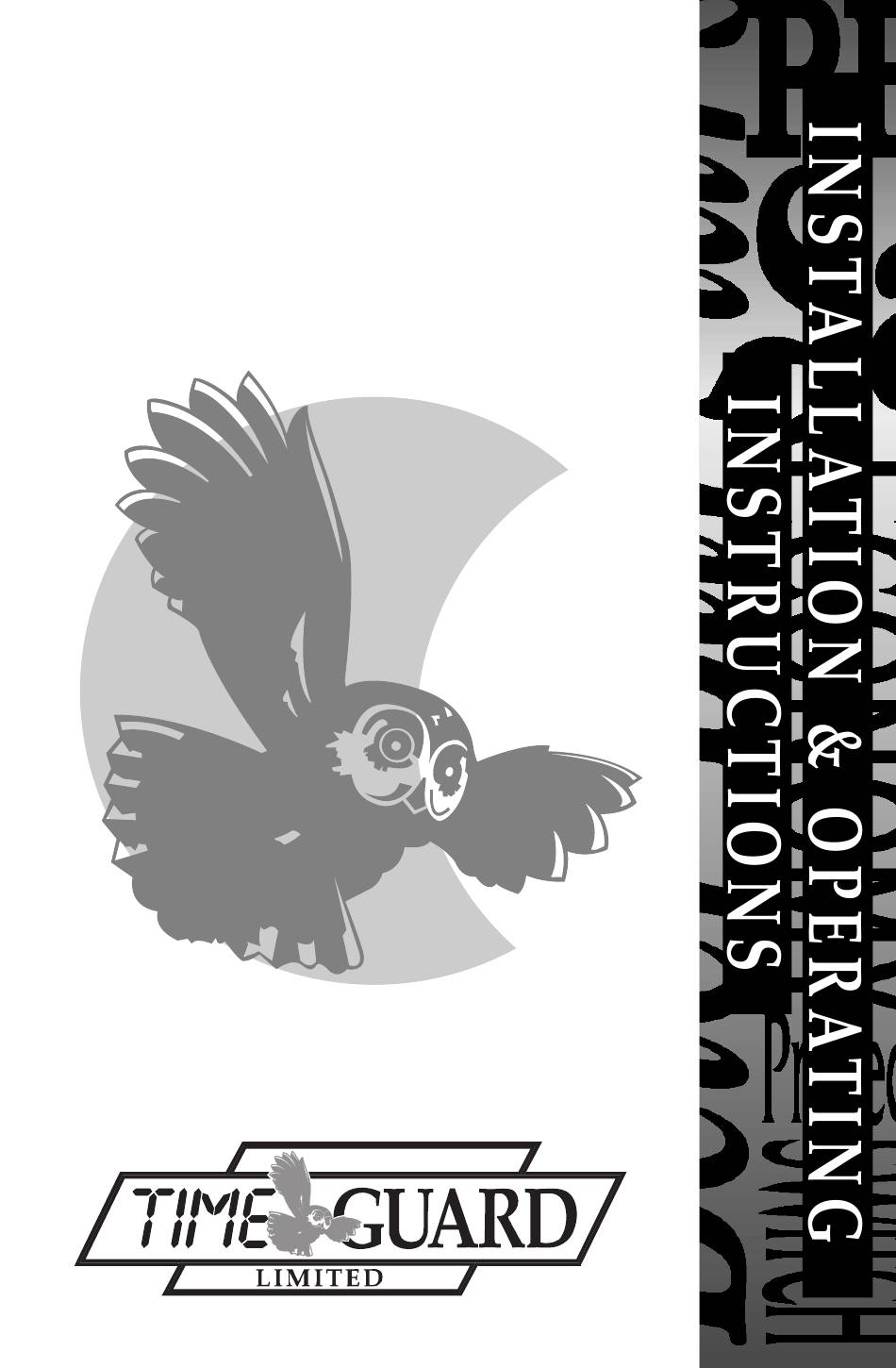

- Page 1 CHIME RECEIVER Cat No. TLRXC1...
- Page 2 Introduction The TLRXC1 Chime Receiver is part of the Timeguard range of PIR products which communicate by radio frequency (r.f.) signals. This enables substantial amounts of wiring to be eliminated which is particularly useful in long runs and coverage of outbuildings.
-
Page 3: Parts Included
1. Position your Transmitter in desired area, if using a PIR perform walk tests to confirm detection zones. 2. Position TLRXC1 in a desired area up to 100m away from the Tx, take into account the path between the sensor to ensure range is acceptable. -
Page 4: Installation
1. If you require an internal lamp to be switched by the Floodlight Tx, plug a lamp (500W max incandescent or halogen) into the unit’s socket outlet. (The TLRXC1 is not suitable for switching fluorescent, low energy or discharge lamps). - Page 5 The LED on the unit will flash slowly for 5 minutes indicating it is in Program Mode. Go to the Tx** unit to be introduced to the TLRXC1 and move across the face of its PIR lens within detection range to cause it to detect (indicated by the lights under control turning on for most Tx units and by a flash from the red LED on the TLTXDCB).
-
Page 6: Selecting The Volume
Selecting the lamp on time To set how long the lamp will remain on after the TLRXC1 has received a signal from a Tx unit, set the ON TIME dial anywhere from 5 seconds (“minus” setting) to 15 minutes (“plus” setting). -
Page 7: Manual Override
“blink” off and on once quickly. Erasing all codes Tx unit codes can be erased for reprogramming. To erase codes, while the TLRXC1 is powered, press and hold the PROGRAM/RESET button for more than 5 seconds. All programmed codes will be erased and 4 "beeps"... -
Page 8: Troubleshooting Guide
Tx unit. 2. Sensor is installed in a dark location, adjust DUSK/DAWN control. 3. The TLRXC1 is set in Manual mode. Press the MANUAL button once to return to Auto Mode. 1. Tx unit may be sensing •... -
Page 9: Technical Specifications
Technical specifications 230 V AC ~ 50Hz Power Supply: Maximum Switchable Load: 500W filament/incandescent only (not suitable for fluorescent, low energy or discharge lighting) Time On Adjustment: 5 seconds to 15 minutes Up to 100m (varies with Transmission Range: surrounding structures) Conforms to Directives: 73/23/EEC and 89/336/EEC... -
Page 10: Year Guarantee
5 Year Guarantee In the unlikely event of this product becoming faulty due to defective material or manufacture within 5 years of the date of purchase, please return it to your supplier in the first year with proof of purchase and it will be replaced free of charge. For years 2 to 5 or any difficulty in the first year telephone the helpline on 020 8450 0515.
