Summary of Contents for Toa MW-41BT

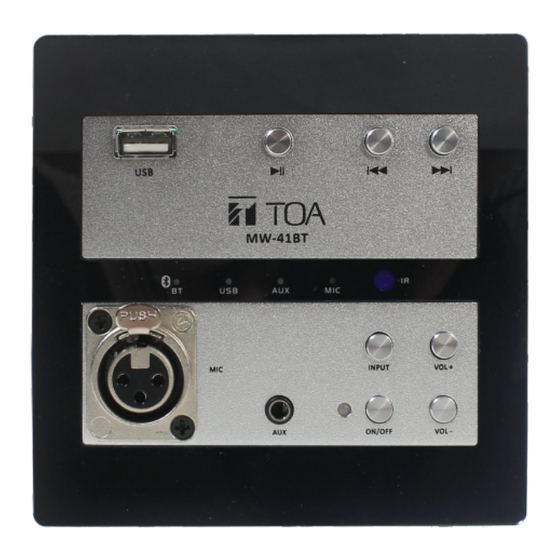

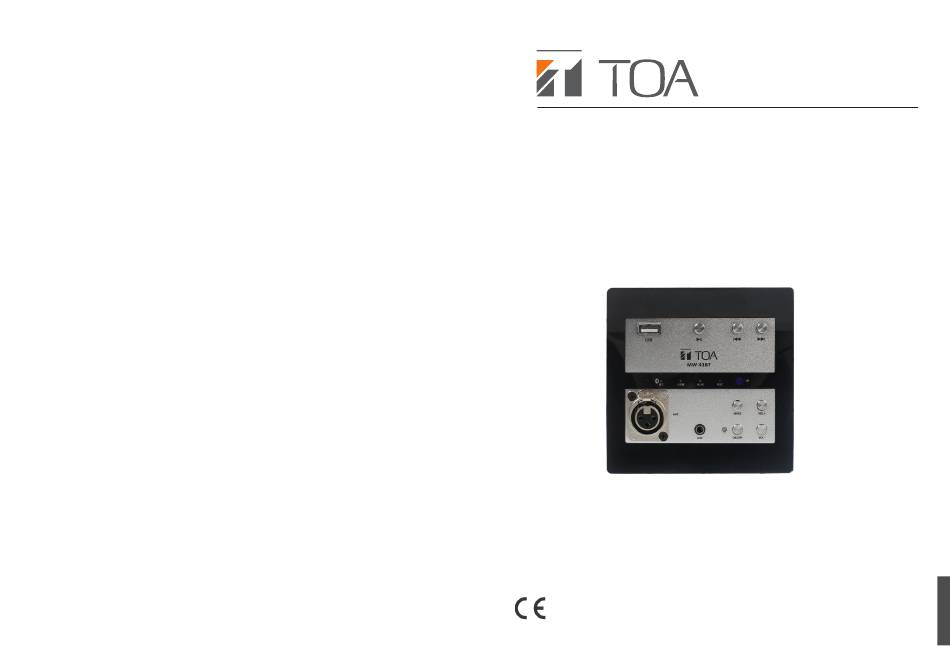

- Page 1 MW-41BT BLUETOOTH WALL CONTROL PANEL User’s Manual...
- Page 2 ＞ 50mV Output level ＞ 2V DESCRIPTION 90dB MW-41BT in-wall control panel complies with American standards. It Bluetooth receiving distance ≤10M is equipped with Bluetooth, USB, auxiliary input and microphone input. The in-wall design and elegant appearance make it more Power consumption ＜...
- Page 3 User’s Manual User’s Manual Button And Interface Function Operation Instructions 1. USB 2.0 interface 9. MIC input socket (Note: This interface has Front of Panel a built-in 48V phantom power supply, please 2. Play/Pause do not connect dynamic microphones!) The 3.
- Page 4 User’s Manual User’s Manual Back of Panel INSTALLATION 1. Embed 2 gang box on the wall first and fix it with screws (As shown in Figure 1） 2. Connect all the necessary wires, then install the Panel into the 2 gang box and fix it with screws(As shown in Figure 2) 3.
