Summary of Contents for Escape Chair VOLT

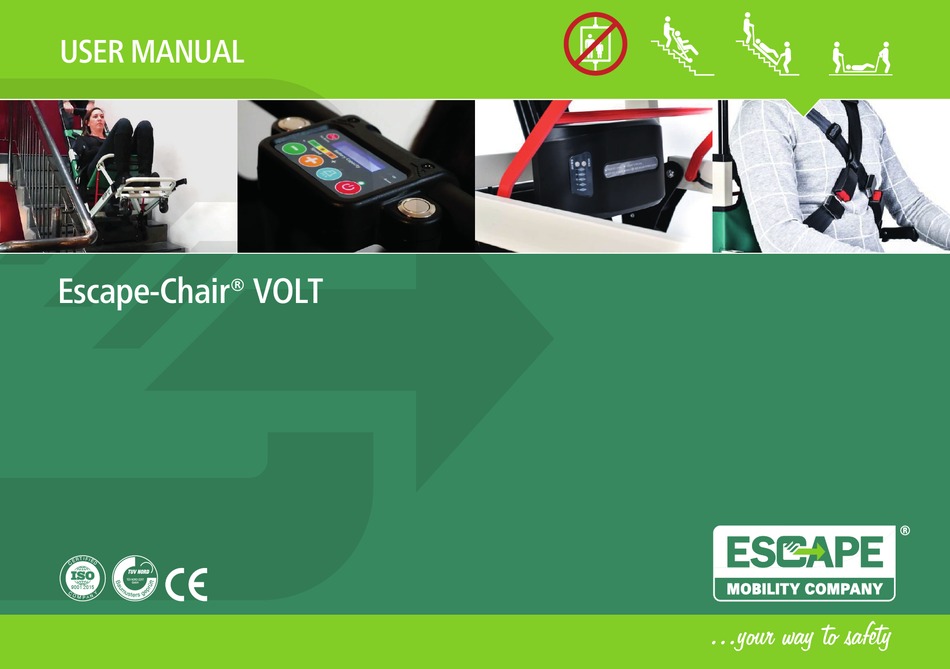

- Page 1 USER MANUAL Escape-Chair® VOLT 9001:2015 ...your way to safety...
-
Page 2: Table Of Contents
Escape-Chair® VOLT Contents Contents Specifications Opening the Escape-Chair® VOLT Transferring the passenger Stairway travel Horizontal travel Installation Operating guidelines Safety information www.escape-mobility.com... -
Page 3: Specifications
Escape-Chair® VOLT Specifications Specifications Escape-Chair® VOLT Maximum load bearing: 180 kg Maximum stair gradient: 40° Weight: ±30 kg Using time when full charged: 2 hours Motor: 36V, 300W Repeated charging times (on 220Volt): Battery life: 3 – 5 years Battery Warranty:... -
Page 4: Opening The Escape-Chair® Volt
Escape-Chair® VOLT Opening the chair LOCKING POSITION #2 Lower the seat to its horizontal position Holding the Escape-Chair® by the handle To fold out the tracks, turn the Escape-Chair® and raise the handle to locking unclip the patient belt to release the seat on its right side and push the red lever to position #1 until it locks into place. from its frame. release the tracks. Make sure that the tracks are completely folded out. www.escape-mobility.com... -
Page 5: Transferring The Passenger
Escape-Chair® VOLT Transferring the passenger LOCKING POSITION #2/3 (Depending on operator height) CONTROL PANEL Battery Capacity Speed 1. STAIRWAY DESCENT 2. REDUCE SPEED 3. INCREASE SPEED 4. WAYFINDING LED LIGHT Passenger can now be transferred in to For stairway descent roll the chair to 5. POWER ON 6. STAIRWAY ASCENT the Escape-Chair®. Once seated fasten top of staircase and extend handle to the safety belt and extend handle to locking position #2. -
Page 6: Stairway Travel
Escape-Chair® VOLT Stairway travel - Descent For stairway descent move chair to top Now tilt Escape-Chair® back for tracks to meet There are 3 different speeds. Choose the of staircase. Press power button. the floor and push the left hand silver button speed that is suitable and safe for you, by and hold it down. The tracks will then begin their pushing the + and - buttons on the display, descent down the stairs. keeping the downward button pressed. www.escape-mobility.com... - Page 7 Escape-Chair® VOLT Stairway travel - Ascent For ascent extend handle to locking Now tilt the Escape-Chair® back for tracks to There are 3 different speeds. Choose the meet the bottom two stair nosings and press position #2 and move Escape-Chair® speed that is suitable and safe for you, by the up arrow on control panel. pushing the + and - buttons on the display, backwards until tracks meet bottom stair. Press power button. keeping the upward button pressed. www.escape-mobility.com...
-
Page 8: Horizontal Travel
Escape-Chair® VOLT Horizontal travel LOCKING POSITION #2/3 (Depending on operator height) To close the tracks push the red rod in, so that Lower handle to locking position #1 Once final destination has been it fully engages with the frame and locks into The chair can now be rolled to any reached apply brakes to rear wheels, place. This red rod can be found between the further destination. safety belt can be released and sliding tracks. Power can now be turned off passenger can vacate the chair. www.escape-mobility.com... -
Page 9: Installation
Escape-Chair® VOLT Operating guidelines Staircase Type Important Dimensions Folded Dimensions Weight Height Width Depth 30kgs 1150mm 500mm 270mm (66lbs) (45.2 inches) (19.6 inches) (10.6 inches) Engaging the battery 1100mm Min (43’’) - 40 BATTERY LOCK Weight Capacity Advisory Stairway Travel POWER SWITCH Engage battery to battery housing on the chair frame and slide in to position. -
Page 10: Safety Information
POWER 800 Escape-Chair® VOLT Contents Safety information WARNING Contents We strongly advise that only certificated Always use the supplied safety belts Features Use only Escape-Chair® VOLT parts trained personnel operate the Escape-Chair® to secure the patient on the chair. and Escape-Chair® VOLT approved VOLT. Untrained personnel may cause injury An unsecured passenger could fall of service on the chair. Improper parts Opening the chair or damage. the chair resulting in injury or damage. may cause injury or damage. The Escape-Chair® VOLT is to be used Where possible try to utilise the help Transferring the passenger The Escape-Chair® VOLT has been only for the purpose described in this of other personnel. Always maintain designed for the purpose detailed in manual. Improper use of the chair can control of the chair, while directing this user manual. Modifying the chair Stairway travel cause injury or damage. - Page 11 Escape-Chair® VOLT Notes www.escape-mobility.com...
- Page 12 For further information please contact:- Escape Mobility Company Ltd. 85 Great Portland Street, 1st floor, London, W1W 7LT +44 (0)1908 8229 028 / +44 (0)1908 8229 029 info@escape-mobility.co.uk www.escape-mobility.com ...your way to safety...
